725002 - Ariens Lozen 26", 30" Grass Catcher Grass Catcher Parts Diagram

Lozen 26", 30" Grass Catcher

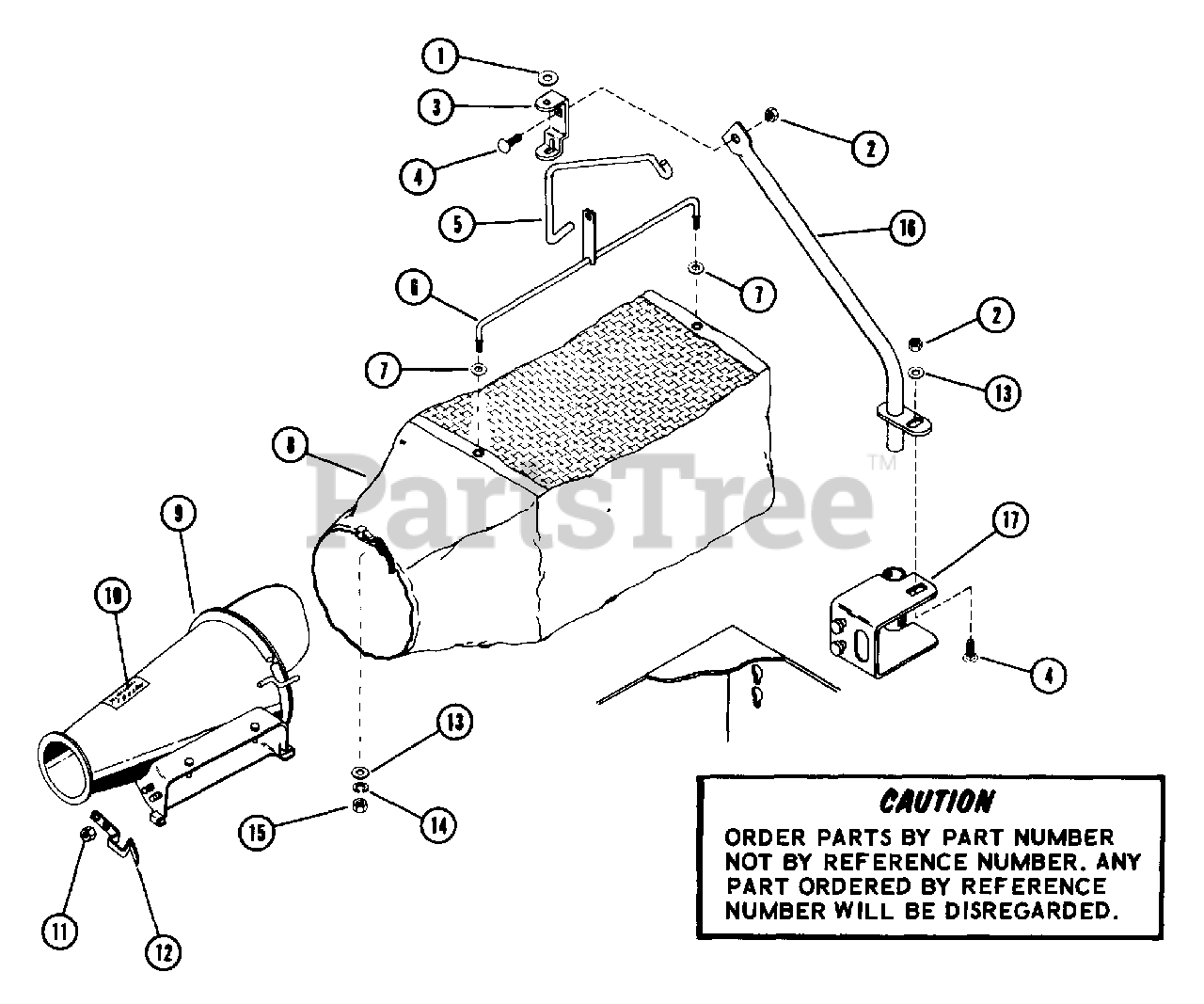

Grass Catcher Parts Diagram

  • Title
1

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

2

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 00334100

STABILIZER BRACKET

$

$

Not available

4

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 00334200

STABILIZER ROD

$

$

Not available

6

Ariens 00318000

CROSS BAR

$

$

Not available

7

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 02521200

BAG
(Superseded to 02521500)

$

$

Not available

9

Ariens 02521100

30 IN GRASS CATCHER CONE
(Superseded to 52502100)

$

$

Not available

10

Ariens 07808500

CAUTION LABEL
(Superseded to 07864400)

$28.99

$

Usually ships in 4-12 days

0

11

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 00318500

SPRING, FLAT
(Superseded to 01597751)

$20.99

$

In Stock, only 1 left!

0

13

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

15

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 00334500

SUPPORT BAR

$

$

Not available

17

Ariens 02511600

SUPPORT BAR BRACKET

$

$

Not available

Ariens 07805400

PATENTS PENDING LABEL

Note: (Not Illustrated)

$

$

Not available
