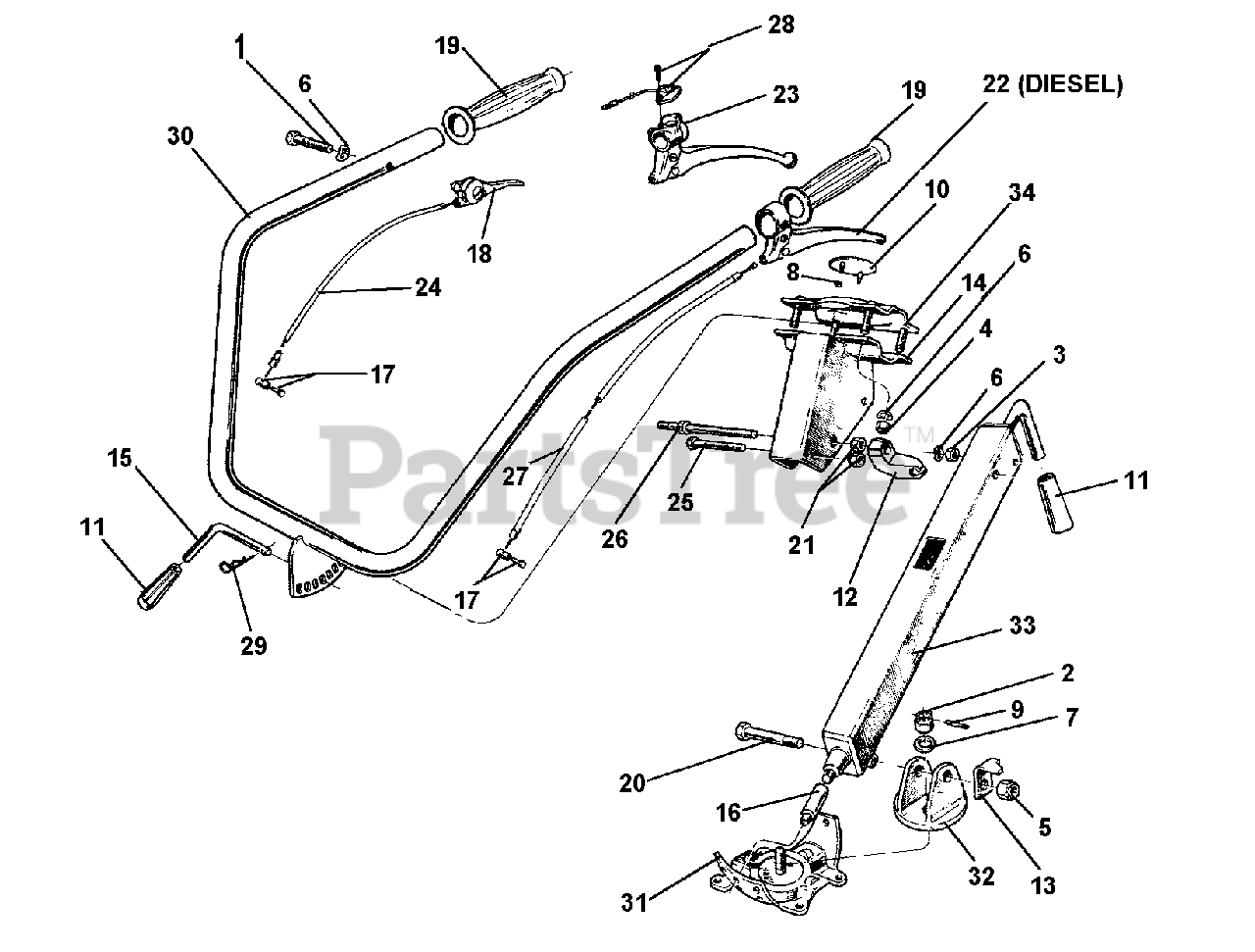

725 - BCS America Two-Wheeled Tractor Handlebar (SN: 040000 - 64756) Parts Diagram

Two-Wheeled Tractor

Handlebar (SN: 040000 - 64756) Parts Diagram

  • Title

1

BCS America 311.12154

SCREW TE M8 X 40

$1.99

$

In Stock, only 4 left!

0

2

BCS America 312.01212

NUT, HEX INT. M12 UNI 5593 6S

$3.99

$

Usually ships in 5-8 days

0

3

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

4

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

5

31241120

NUT, SELF LOCKING M12

$

$

Not available

6

BCS America 314.23084

WASHER,LOCK 8.4

$0.99

$

In Stock, Qty 10

0

7

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, only 3 left!

0

8

BCS America 314.40004

WASHER, LOCK FOR PINS D-4

$0.99

$

In Stock, Qty 10

0

9

BCS America 342.13022

PIN, LOCKING SW 3 X 22 SPIRAL

$1.49

$

In Stock, only 3 left!

0

10

BCS America 530.48656

BCS LOGO

$10.99

$

Usually ships in 5-8 days

0

11

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

12

BCS America 55243340

SUPPORT CONTROL ROD CUT

$

$

Not available

13

BCS America 561.48252

LOCKING PLATE

$3.99

$

Usually ships in 5-8 days

0

14

BCS America 561.48264

END

$93.99

$

Usually ships in 5-8 days

0

15

BCS America 56148280

LEVER FOR SECTOR

$13.99

$

In Stock, only 1 left!

0

16

BCS America 564.48258

PIN

$60.99

$

Usually ships in 5-8 days

0

17

BCS America 580.02429

CLAMP, CABLE

$5.99

$

In Stock, only 2 left!

0

18

BCS America 580.02538

LEVER ACCELERATOR

$34.99

$

In Stock, only 1 left!

0

19

BCS America 580.42692

KNOB RUBBER HOLE D 25

$

$

Currently unavailable

20

BCS America 580.43228

SCREW SPECIAL M12 X 70

$4.99

$

Usually ships in 5-8 days

0

21

BCS America 580.43248

BEVEL NUT M8

$1.49

$

Usually ships in 5-8 days

0

22

BCS America 580.43271

CLUTCH LEVER (DIESEL)

$

$

Currently unavailable

23

BCS America 580.43272

CLUTCH LEVER

$

$

Currently unavailable

24

BCS America 580.48012

WIRE, SHEATH 1850 GAS

$29.99

$

In Stock, only 2 left!

0

25

BCS America 580.48269

SCREW STEERING COLUMN M8 X 58

$

$

Currently unavailable

26

BCS America 58048270

SCREW STEERING COLUMN M8 X 118

$18.99

$

Usually ships in 5-8 days

0

27

BCS America 580.48297

WIRE SHEATH L-1280 CLUTCH/BR.

$29.99

$

In Stock, only 1 left!

0

28

BCS America 580.48298

SWITCH

$117.99

$

Usually ships in 5-8 days

0

29

BCS America 580.50533

PIN

$1.99

$

In Stock, only 2 left!

0

30

BCS America 590.43268

HANDLEBAR

$

$

Currently unavailable

31

BCS America 590.43301

CAP WITH HOLE D.13

$

$

Currently unavailable

32

BCS America 590.43305

FORK

$44.99

$

Usually ships in 5-8 days

0

33

BCS America 590.48254

STEERING COLUMN

$

$

Currently unavailable

34

BCS America 590.48266

COVER ENDS

$54.99

$

Usually ships in 5-8 days

0
