724041 - Ariens 12 Volt Headlight Kit Alternator/Headlight (924 Series) Parts Diagram

12 Volt Headlight Kit

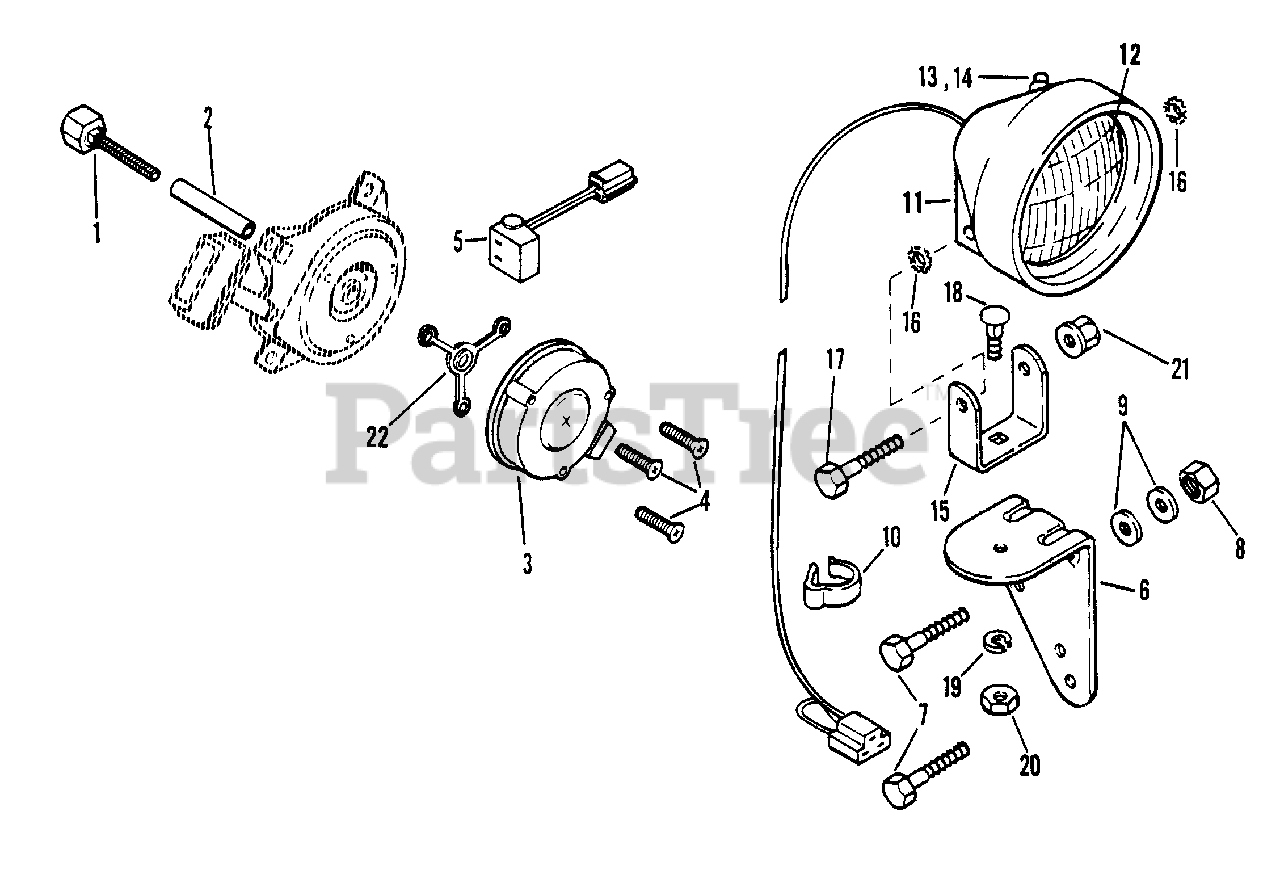

Alternator/Headlight (924 Series) Parts Diagram

  • Title

1

Alternator Shaft 4" 8 HP

Note: (924050) S/N 050501X 071901) (Tec. 590611)

$

$

Not available

1

Alternator Shaft 3"

Note: (Tec. 590613) (932000 Series and 5-7 HP on 924000)

$

$

Not available

1

Alternator Shaft 3-1/2"

Note: (924050) S/N 071901X (Tec. 590636)

$

$

Not available

2

Centering Tube 2.7 to 7 HP

Note: (Tec. 590610)

$

$

Not available

2

Centering Tube 8 and 10 HP

Note: (Tec. 590609)

$

$

Not available

3

Alternator

Note: (Tec. 611077)

$

$

Not available

4

Ariens 07407600

SCR-TAP 8-18X1.12 CRFH PL B

$

$

Not available

4

Ariens 07408400

SCR-TAP 8-18X1.25 CRFH PL B

$

$

Not available

5

Lighting Connector

Note: (Tec. 611078)

$

$

Not available

6

Ariens 02456100

HEADLIGHT BRACKET

$

$

Not available

7

Ariens 05906200

BLT-HEX .25-20X1.75 PL GR2
(Superseded to 05964700)

Note: (932001,4,6,7,15,18)

$2.49

$

In Stock, only 1 left!

0

8

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 2 left!

0

10

Ariens 06909900

CONDUIT CLAMP 2 WIRE
(Superseded to 07517300)

$

$

Not available

11

Ariens 02456000

HEAD LIGHT ALTERNATE 024562

Note: (39)

$

$

Not available

11

Ariens 02457100

HEADLIGHT

Note: (71,73)

$60.99

$

Usually ships in 4-12 days

0

11

Ariens 02456900

HEADLIGHT ALTERNATE 024570

Note: (40,41,44,73,76) (Consists of items 12 thru 21)

$

$

Not available

12

Ariens 02435800

HEAD LIGHT

Note: (71,73)

$62.99

$

Usually ships in 4-12 days

0

12

Ariens 03114900

HEAD LIGHT

Note: (39,40,41,44,73)

$20.99

$

Usually ships in 4-12 days

0

13

Ariens 02409900

PUSH BUTTON SWITCH

Note: (39)

$

$

Not available

14

Ariens 02410000

SWITCH BOOT

Note: (39)

$

$

Not available

15

Ariens 02409800

U-BRACKET

$

$

Not available

16

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 02459800

SPACER-ALTERNATOR

Note: (44)

$

$

Not available
