724039 - Ariens 12 Volt Headlight Kit Alternator/Headlight (932 Series) Parts Diagram

12 Volt Headlight Kit

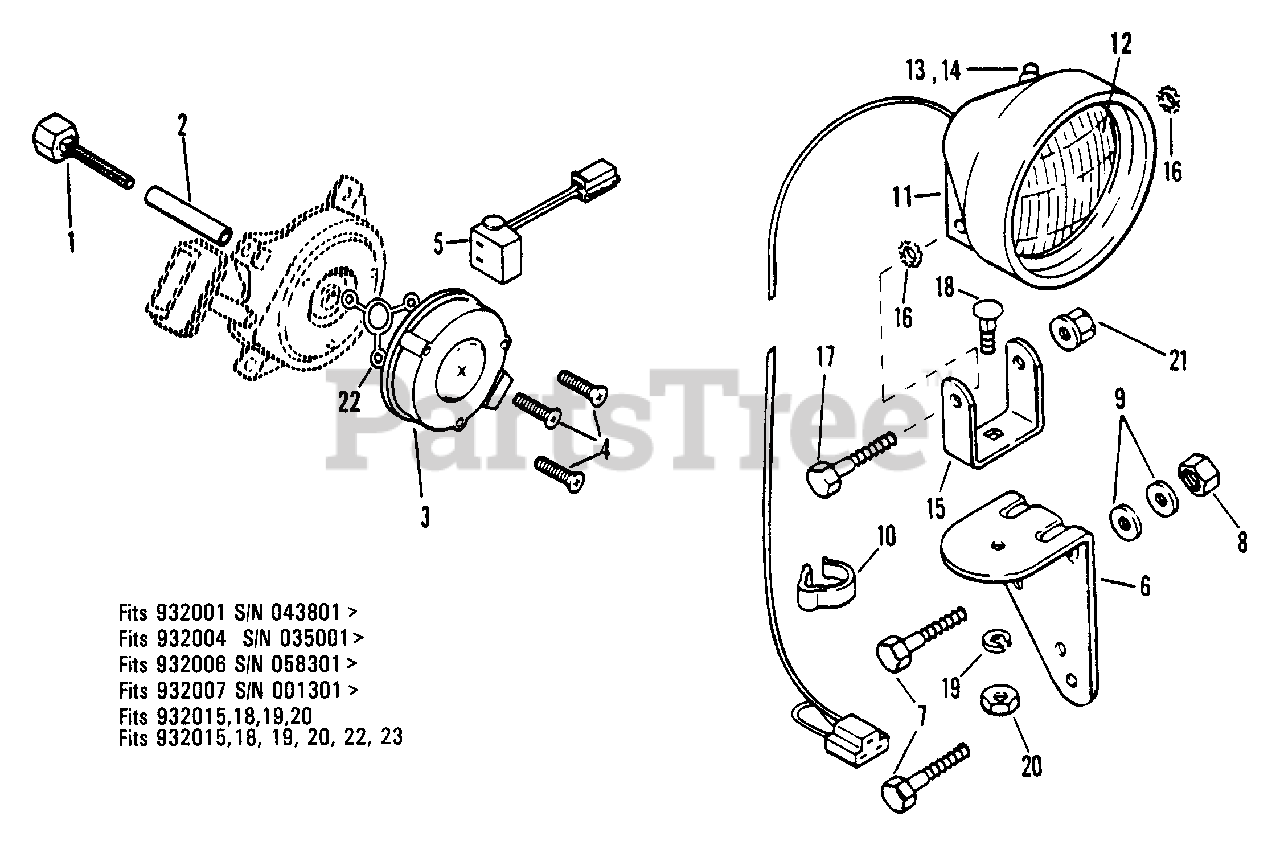

Alternator/Headlight (932 Series) Parts Diagram

  • Title

1

Alternator Shaft 3"

Note: (Tec. 590613); Order From Engine Manufacturer.

$

$

Not available

2

Centering Tube

Note: (Tec. 590610); Order From Engine Manufacturer.

$

$

Not available

3

Alternator

Note: (Tec. 611077); Order From Engine Manufacturer.

$

$

Not available

4

Ariens 07407600

SCR-TAP 8-18X1.12 CRFH PL B

$

$

Not available

4

Ariens 07408400

SCR-TAP 8-18X1.25 CRFH PL B

$

$

Not available

5

Ariens 02455700

LIGHTING CONNECTOR

Note: (Tec. 611078); Order From Engine Manufacturer.

$

$

Not available

6

Ariens 02456100

HEADLIGHT BRACKET

$

$

Not available

7

Ariens 05906200

BLT-HEX .25-20X1.75 PL GR2
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

7

Ariens 059056

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

8

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 2 left!

0

10

Ariens 06909900

CONDUIT CLAMP 2 WIRE
(Superseded to 07517300)

$

$

Not available

11

Ariens 02456000

HEAD LIGHT ALTERNATE 024562

Note: (724039)

$

$

Not available

11

Ariens 02456900

HEADLIGHT ALTERNATE 024570

Note: (724040, 41, 44); (Consists of items 12 thru 21)

$

$

Not available

12

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

13

Ariens 02409900

PUSH BUTTON SWITCH

Note: (724039)

$

$

Not available

14

Ariens 02410000

SWITCH BOOT

Note: (724039)

$

$

Not available

15

Ariens 02409800

U-BRACKET

$

$

Not available

16

Ariens 063032

WSHR-LK-EXT .313X.030 PL
(Superseded to 06303200)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 065015

NUT-HEX .31-18 YWZC
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 02459800

SPACER-ALTERNATOR

Note: (44)

$

$

Not available
