724028 - Ariens Adapter and Air Cleaner Kit Adaptor And Air Cleaner Parts Diagram

Adapter and Air Cleaner Kit

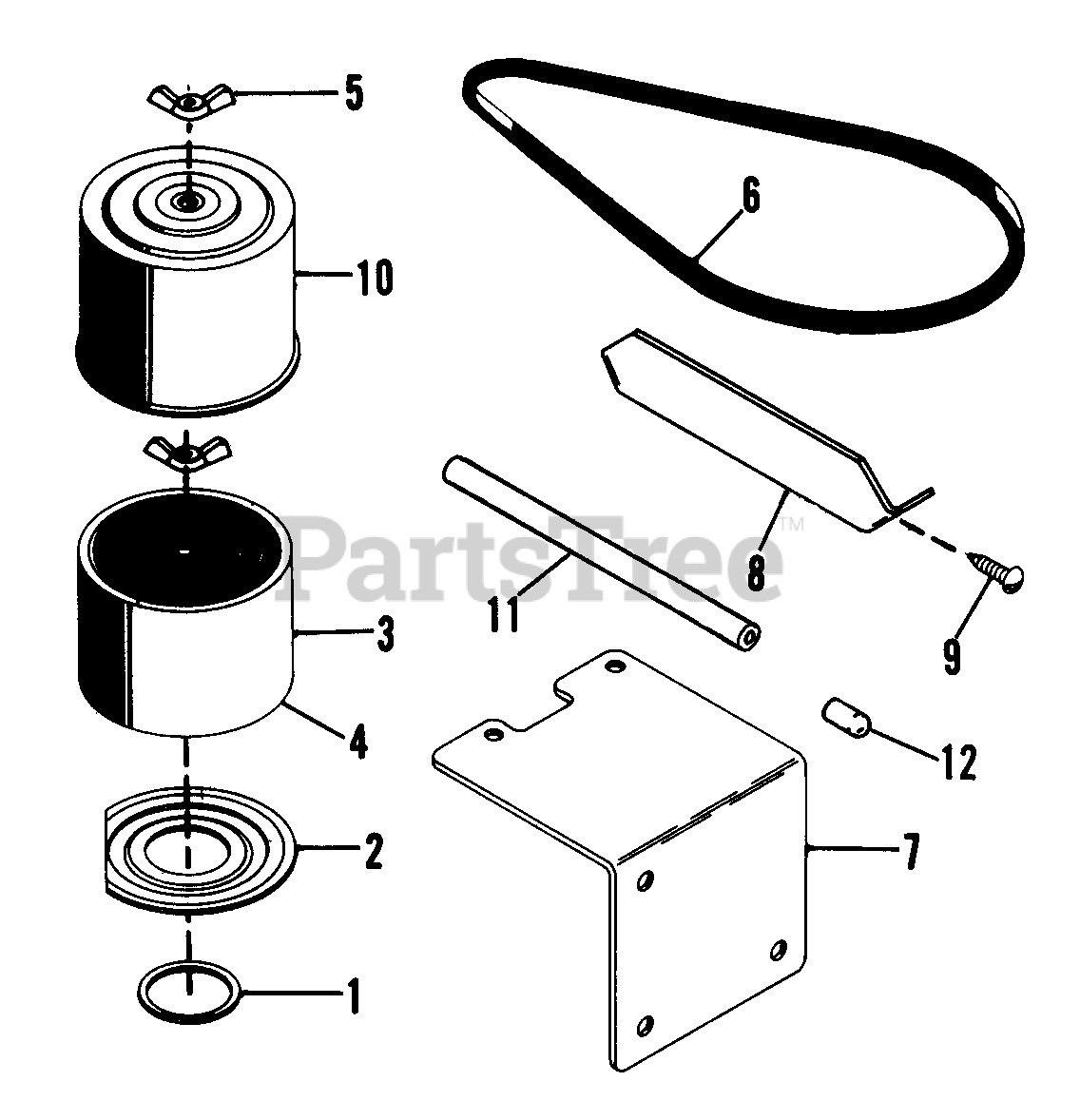

Adaptor And Air Cleaner Parts Diagram

  • Title

1

Ariens 02451700

GASKET

Note: (270986) Parts are available from Briggs & Stratton Dealers only. Order by Briggs Parts No. listed in parentheses.

$

$

Not available

2

Ariens 02452200

AIR CLEANER BASE

Note: (223268) Parts are available from Briggs & Stratton Dealers only. Order by Briggs Parts No. listed in parentheses.

$

$

Not available

3

Ariens 02451800

FOAM

Note: (270782) Parts are available from Briggs & Stratton Dealers only. Order by Briggs Parts No. listed in parentheses.

$

$

Not available

4

Ariens 02451900

CARTRIDGE

Note: (390930) Parts are available from Briggs & Stratton Dealers only. Order by Briggs Parts No. listed in parentheses.

$

$

Not available

5

Ariens 06514600

NUT-WING BRIGGS

$

$

Not available

6

Ariens 07213200

V-BELT, 4L-RAW EDGE

Note: (Rotary Mower Attachment)

$44.99

$

Usually ships in 4-12 days

0

7

Ariens 02451500

SWITCH BRACKET

Note: (Electric Start Kit)

$

$

Not available

8

Ariens 02451600

GUARD PLATE

Note: (Rotary Mower & Brush Attachment)

$

$

Not available

9

Ariens 07503500

KNOB

$

$

Not available

10

Ariens 02452100

AIR CLEANER COVER

Note: (222271) Parts are available from Briggs & Stratton Dealers only. Order by Briggs Parts No. listed in parentheses.

$

$

Not available

11

Ariens 02400700

FUEL LINE 1/4 X 16"

$

$

Not available

12

Ariens 07512700

COVER

$

$

Not available
