724018 - Ariens 12 Volt Start Kit Starter 12 Volt Parts Diagram

12 Volt Start Kit

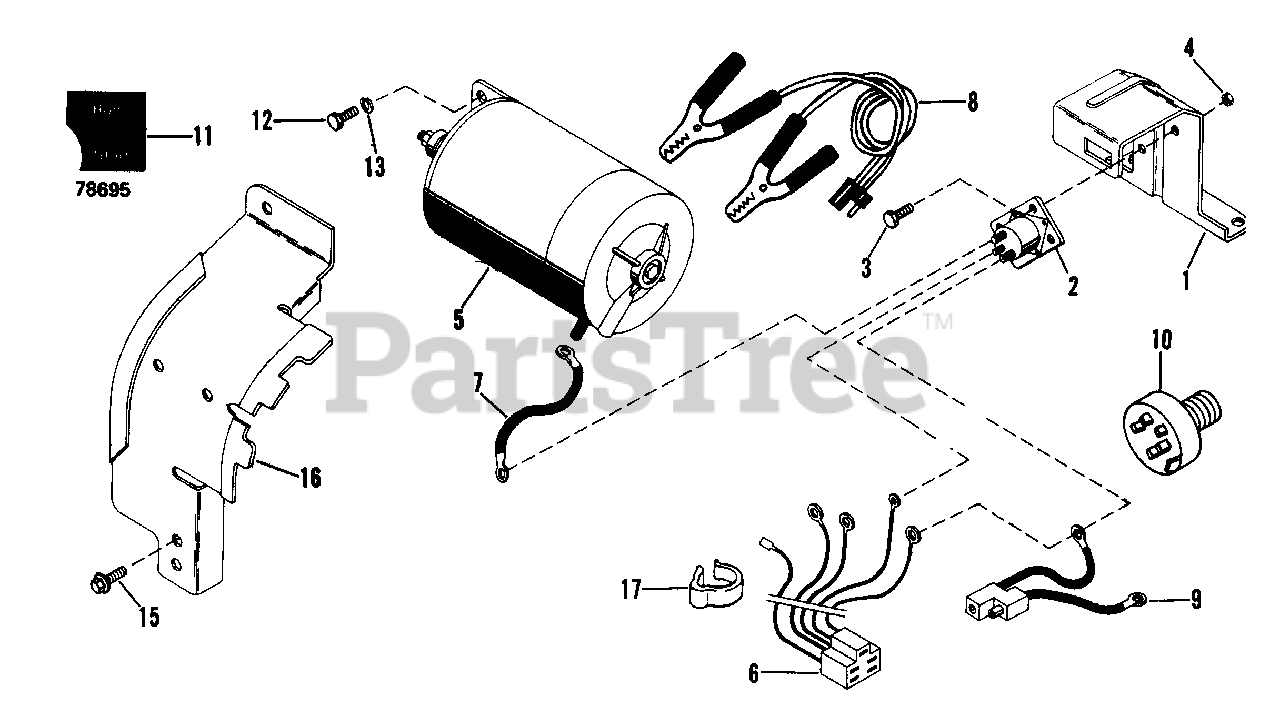

Starter 12 Volt Parts Diagram

  • Title

1

Ariens 02451002

PANEL SUPPORT

$

$

Not available

2

Ariens 03057700

SOLENOID

Note: (Includes nuts)

$

$

Not available

3

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

5

Starter Motor B & S No. 392749

Note: Order replacement from Briggs & Stratton dealer only.

$

$

Not available

6

Ariens 02446500

WIRING HARNESS

$

$

Not available

7

Ariens 02458300

CABLE

$

$

Not available

8

Ariens 02446200

JUMPER CABLE W/CONNECTOR

$

$

Not available

9

Ariens 02446300

ADAPTER LEAD W/CONNECTOR

$

$

Not available

10

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 6

0

11

Ariens 07869500

DECAL-SWITCH

$

$

Not available

12

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

Note: (For Starter Motor)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06300003

WASHER, HELICAL SPRING LOCK

Note: (For Starter Motor)

$

$

Not available

14

Ariens 01315700

KEYS
(Superseded to 02460700)

Note: (Not Shown)

$7.99

$

In Stock, Qty 20+

0

15

Ariens 07403500

SCR-TAP 8-15X.38 CR RH A
(Superseded to 07411700)

Note: (For Cover-Shield)

$

$

Not available

16

Cover-Shield, B & S No. 390233

Note: Order replacement from Briggs & Stratton dealer only.

$

$

Not available

17

Ariens 06909900

CONDUIT CLAMP 2 WIRE
(Superseded to 07517300)

$

$

Not available
