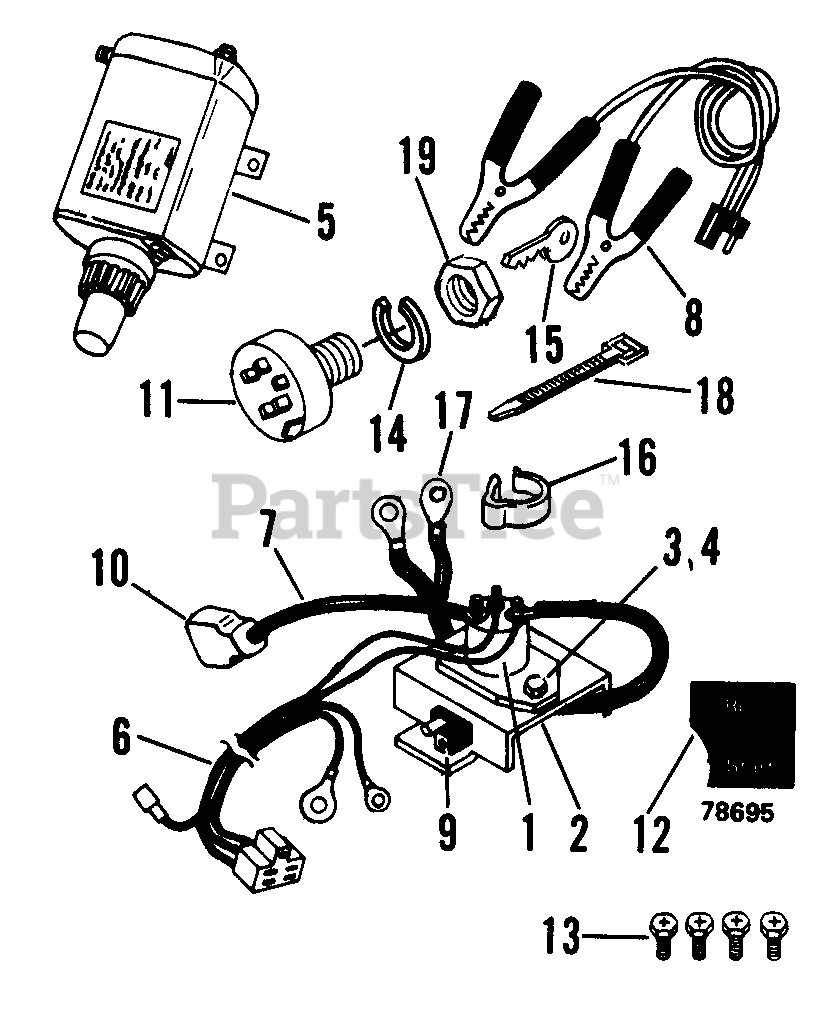

724016 - Ariens 12 Volt Start Kit Electric Starter 120 Volt Parts Diagram

12 Volt Start Kit

Electric Starter 120 Volt Parts Diagram

  • Title

1

Ariens 02446400

BRACKET
(Superseded to 02446451)

$

$

Not available

2

Ariens 03057700

SOLENOID

$

$

Not available

3

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

5

Starter Motor, Tecumseh No. 33606

Note: (724016)

$

$

Not available

5

Starter Motor, Tecumseh No. 33605

Note: (724017)

$

$

Not available

6

Ariens 02446500

WIRING HARNESS

$

$

Not available

7

Ariens 02458300

CABLE

$

$

Not available

8

Ariens 02446200

JUMPER CABLE W/CONNECTOR

$

$

Not available

9

Ariens 02446300

ADAPTER LEAD W/CONNECTOR

$

$

Not available

10

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

11

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 5

0

12

Ariens 07869500

DECAL-SWITCH

$

$

Not available

13

Ariens 07004500

SCR-CAP CR SEMS .25-20X.50 PL

$

$

Not available

14

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

16

Ariens 06909900

CONDUIT CLAMP 2 WIRE
(Superseded to 07517300)

$

$

Not available

17

Ariens 03226700

GROUND WIRE

$

$

Not available

18

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

19

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0
