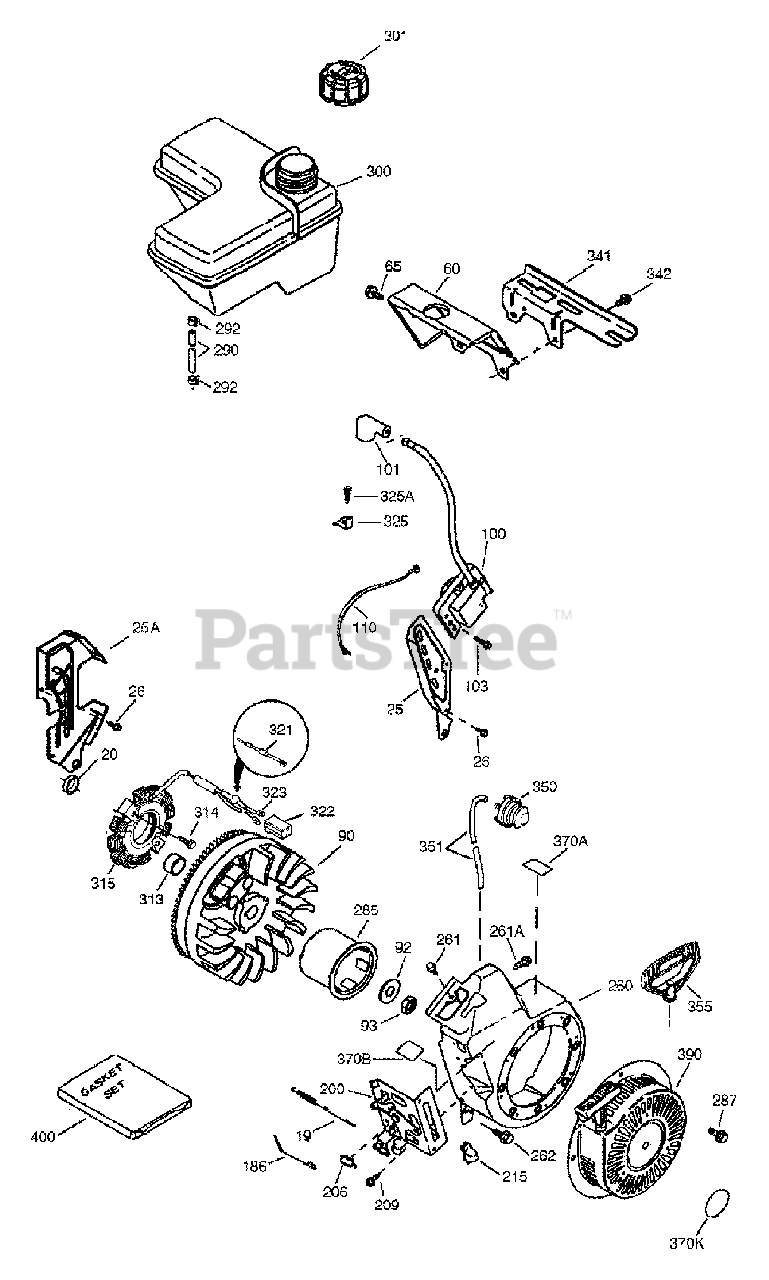

724 WE (31AE633E100) - Cub Cadet 24" Snow Thrower Engine (2002) Starter Parts Diagram

24" Snow Thrower Engine

Starter Parts Diagram

  • Title

19

Cub Cadet TC-37111

Extension Spring

$6.99

$

Usually ships in 3-12 days

0

20

Cub Cadet TC-22600

Oil Seal

$

$

Currently unavailable

25A

Cub Cadet TC-36869

Air Baffle (Right)

$

$

Not available

25

Cub Cadet TC-36621

Air Baffle (Left)

$

$

Not available

26

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

60

Cub Cadet TC-36623A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

90

Cub Cadet TC-611216

Flywheel

$

$

Not available

92

Cub Cadet TC-650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Cub Cadet TC-650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Cub Cadet TC-34443C

Solid State Ignition
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 4 left!

0

103

Cub Cadet TC-651007

Screw, T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-36230

Ground Wire

$1.99

$

In Stock, only 2 left!

0

186

Cub Cadet TC-36711

Governor Link

$1.49

$

In Stock, only 2 left!

0

200

Cub Cadet TC-36824A

Control Bracket

Note: (Incl. 206)

$

$

Not available

206

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

209

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

215

Cub Cadet TC-32410

Control Knob

$5.49

$

In Stock, only 4 left!

0

260

Cub Cadet TC-36901

Blower Housing

$34.99

$

Usually ships in 3-12 days

0

261

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

261A

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

262

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

285

Cub Cadet TC-35985B

Starter Cup
(Superseded to TC-35985C)

$13.99

$

In Stock, only 1 left!

0

287

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

290

Cub Cadet TC-30705

Fuel Line (12.62")

$16.99

$

In Stock, only 4 left!

0

292

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 10

0

300

Cub Cadet TC-37048

Fuel Tank

Note: (Incl. 292 & 301)

$44.99

$

In Stock, only 1 left!

0

301

Cub Cadet TC-35355

Fuel Cap
(Superseded to TC-37845)

$8.99

$

In Stock, Qty 11

0

313

Cub Cadet TC-34080

Spacer

$1.99

$

In Stock, only 2 left!

0

314

Cub Cadet TC-650873

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

315

Cub Cadet TC-611111

Alternator Coil (18 Watt)

$68.99

$

Usually ships in 3-12 days

0

321

Cub Cadet TC-611161

Diode

$17.99

$

Usually ships in 3-12 days

0

322

Cub Cadet TC-611142

Connector

$3.99

$

Usually ships in 3-12 days

0

323

Cub Cadet TC-611118

Terminal

$1.99

$

Usually ships in 3-12 days

0

325A

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

325

Cub Cadet TC-37471

Fuel Line Bracket

$5.49

$

Usually ships in 3-12 days

0

341

Cub Cadet TC-36644

Fuel Tank Bracket (Lower)

$

$

Not available

342

Cub Cadet TC-651010

Screw, 1/4-20 x 7/8"

$1.99

$

Usually ships in 3-12 days

0

350

Cub Cadet TC-570682A

Primer Assembly

$10.99

$

In Stock, Qty 7

0

351

Cub Cadet TC-32180C

Primer Line

$6.99

$

In Stock, Qty 9

0

355

Cub Cadet TC-590574

Starter Handle (Mitten Grip)

$5.49

$

In Stock, only 1 left!

0

370A

Cub Cadet TC-36261

Lubrication Decal

$

$

Not available

370B

Cub Cadet TC-36899

Control Decal

$

$

Not available

370K

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 2 left!

0

390

Cub Cadet TC-590749

Rewind Starter
(Superseded to TC-590789)

Note: (NOTE: This engine could have been built with 590733 starter.)

$87.99

$

In Stock, only 1 left!

0

400

Cub Cadet TC-36720

Gasket Set

Note: (Incl. items marked PK in notes)

$10.99

$

Usually ships in 3-12 days

0
