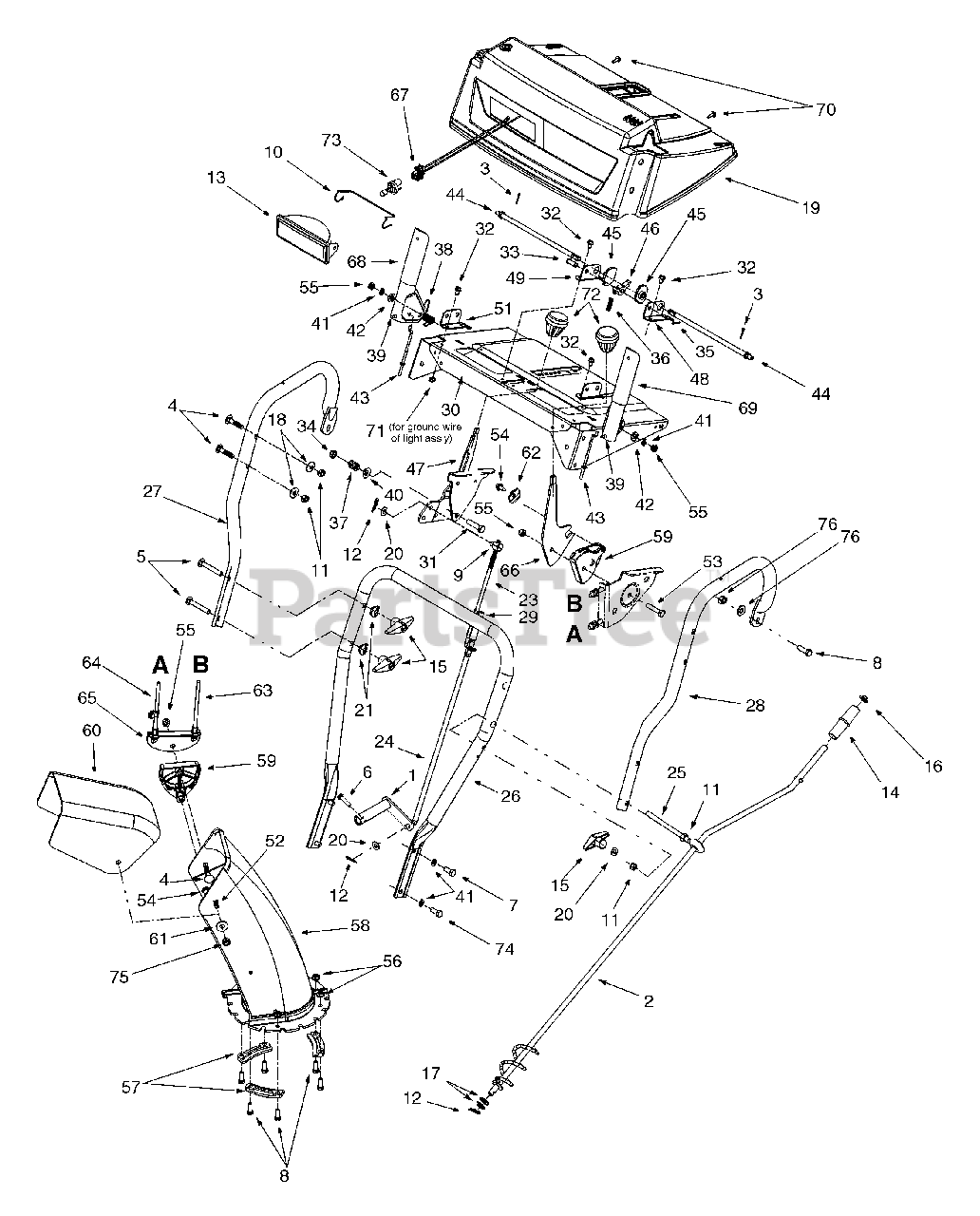

724 WE (31AE633E100) - Cub Cadet 24" Snow Thrower (2002) Handle & Chute Parts Diagram

24" Snow Thrower

Handle & Chute Parts Diagram

  • Title

1

Cub Cadet 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

Cub Cadet 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 705-5204A

Chute Crank Assembly
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

3

Cub Cadet 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, Qty 12

0

4

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0449

Carriage Bolt, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0788

Self Tapping Screw, 1/4-20 x 1

$7.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0643

Hex Cap Screw, 5/16-18 x 1.0

$6.99

$

In Stock, Qty 5

0

8

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 711-0677

Ferrule, 5/16-18 x .312
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

10

Cub Cadet 747-1136

Headlamp Retainer

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 725-1672

Lens Assembly / Lamp Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

15

Cub Cadet 720-0284

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 726-0100

Push Cap, 3/8

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0185

Flat Washer, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 731-1737A

Handle Panel, Black

$

$

Not available

20

Cub Cadet 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0451

Saddle Washer, .32 x .93

$4.49

$

In Stock, Qty 11

0

?22

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 747-0620A

Upper Shift Rod

$11.99

$

In Stock, only 3 left!

0

24

Cub Cadet 747-0621

Lower Shift Rod

$

$

Not available

25

Cub Cadet 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

Cub Cadet 735-0234

Eyebolt Grommet

Note: (Not Shown)

$5.49

$

In Stock, only 2 left!

0

26

Cub Cadet 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

Cub Cadet 749-0951-0637

USE 749-0951A-0637 HANDLE-LOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0951-0638

USE 749-0951A-0638 HANDLE-LOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 749-0954

RH Handle (Upper), C-style

$

$

Not available

28

Cub Cadet 749-0955

LH Handle (Upper), C-style
(Superseded to 749-0955-0637)

Variations

Cub Cadet 749-0955-0637

HANDLE-LH C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 750-0963

Shift Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

30

Cub Cadet 684-0102

Handle Panel Assembly
(Superseded to 684-0102A)

Variations

Cub Cadet 684-0102-0498

USE 684-0102A-0498 PANEL ASM: - OLD CUB YELLOW (0498)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0638

USE 684-0102A-0638 PANEL ASM: - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0650

USE 684-0102A-0650 PANEL ASM: - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0662

USE 684-0102A-0662 PANEL ASM: - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0665

USE 684-0102A-0665 PANEL ASM: - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0689

USE 684-0102A-0689 PANEL ASM: - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0716

USE 684-0102A-0716 PANEL ASM: - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0721

USE 684-0102A-4044 PANEL ASM: - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

32

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 712-0116

Jam Nut, 3/8-24

$4.99

$

In Stock, Qty 6

0

35

Cub Cadet 714-0104

Cotter Pin, .072 x 1.0

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 732-0145

Compression Spring, .36 x 1.0

$4.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 732-0193

Comp. Spring, .39 x .6 x .88

$4.99

$

In Stock, Qty 6

0

38

Cub Cadet 732-0746

Torsion Spring, .44 x .8

$4.49

$

In Stock, Qty 13

0

39

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

40

Cub Cadet 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0509

Special Washer, .35 x .72 x .13

$6.99

$

In Stock, only 1 left!

0

43

Cub Cadet 746-0778

Cable "Z" Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

44

Cub Cadet 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Cub Cadet 784-5619A-0637

USE 753-05395 KIT-SHIFT HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

48

Cub Cadet 784-5679

LH Handle Support Bracket
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 784-5680

RH Handle Support Bracket
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

?50

Cub Cadet 784-5681

LH Handle Support Bracket

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 784-5682

RH Handle Support Bracket
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 710-0805

Hex Cap Screw, 516-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0896

Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 712-0429

Hex Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

57

Cub Cadet 731-0851A

Lower Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

59

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

60

Cub Cadet 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 6

0

61

Cub Cadet 736-0159

Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 736-0506

Special Washer, .28 x 1.2 x .06
(Superseded to 736-0506A)

$

$

Not available

63

Cub Cadet 746-0896

Chute Deflector Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

64

Cub Cadet 746-0901

Chute Deflector Cable w/ Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 629-0059

Halogen Light Harness
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 684-0036A

RH Engagement Handle Ass'y

$44.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 684-0037B

LH Engagement Handle Ass'y

$38.99

$

In Stock, only 2 left!

0

70

Cub Cadet 710-1003

Special Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

71

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 720-0232

Plastic Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

73

Cub Cadet 725-1658

Halogen Lamp, 12-volt, 27 Watt
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

74

Cub Cadet 710-1880

Hex Cap Screw, 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

75

Cub Cadet 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

76

Cub Cadet 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

?77

Cub Cadet 712-0287

Hex Nut, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0
