Cub Cadet 724 WE (31AE633E100) - Cub Cadet 24" Snow Thrower (2002) Frame Assembly Parts Lookup with Diagrams

1

Cub Cadet 710-1652

Hex Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

2

Cub Cadet 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

(Superseded to 784-5688-0637) 

Variations

Cub Cadet 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5688-0662

USE 784-5688-0637 BRACKET-GUI - OYSTER GRAY (0662)

$

Not available 

$

Not available 

3

Cub Cadet 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

(Superseded to 784-5687A-0637) 

Variations

Cub Cadet 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

Not available 

$

Not available 

4

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 11

5

Cub Cadet 738-0924

Shoulder Screw 1/4-28 x .375

(Superseded to 738-0924A) 

$6.99

$

In Stock, only 2 left!

6

Cub Cadet 784-5630A-0638

FRAME HOUSING - MTD/TROY-BILT RED (0638)

Variations

Cub Cadet 784-5630A-0638

FRAME HOUSING - MTD/TROY-BILT RED (0638)

$

Not available 

Cub Cadet 784-5630A-0650

FRAME HOUSING - RED METALLIC (0650)

$

Not available 

Cub Cadet 784-5630A-0665

FRAME HOUSING - YARDMAN GREEN (0665)

$

Not available 

Cub Cadet 784-5630A-0689

FRAME HOUSING - POLO GREEN (0689)

$

Not available 

Cub Cadet 784-5630A-0691

FRAME HOUSING - BLACK JACK (0691)

$

Not available 

Cub Cadet 784-5630A-0716

FRAME HOUSING - CUB YELLOW-99 (0716)

$

Not available 

$

Not available 

7

Cub Cadet 741-0563

Ball Bearing

(Superseded to 941-0563) 

$36.99

$

In Stock, only 3 left!

8

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

9

Cub Cadet 712-0116

Lock Jam Nut, 3/8-24

$4.99

$

In Stock, only 3 left!

10

Cub Cadet 741-0598

Hex Flange Bearing

(Superseded to 941-0598) 

$12.99

$

In Stock, Qty 20+

11

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

12

Cub Cadet 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

(Superseded to 784-5689A-0637) 

Variations

Cub Cadet 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

Not available 

$

Not available 

13

Cub Cadet 710-0538

Hex Cap Screw, 5/16-18 x 625

$4.49

$

In Stock, only 3 left!

14

Cub Cadet 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

15

Cub Cadet 714-0474

Cotter Pin, .125 x .75

$4.99

$

In Stock, Qty 13

16

Cub Cadet 736-0160

Flat Washer .536 ID x .930 OD

$4.49

$

Usually ships in 3-6 days

17

Cub Cadet 710-0809

Hex Washer Screw 1/4-20

$6.99

$

In Stock, Qty 10

18

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

Not available 

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

Not available 

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

Not available 

$15.99

$

Usually ships in 3-6 days

19

Cub Cadet 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

(Superseded to 784-5638A) 

Variations

Cub Cadet 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

Not available 

Cub Cadet 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

Not available 

Cub Cadet 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

Not available 

Cub Cadet 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

Not available 

Cub Cadet 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

Not available 

Cub Cadet 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

Not available 

Cub Cadet 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

Not available 

Cub Cadet 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

Not available 

Cub Cadet 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

Not available 

Cub Cadet 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

Not available 

Cub Cadet 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

Not available 

Cub Cadet 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

Not available 

$

Not available 

20

Cub Cadet 710-0599

Hex Washer Screw 1/4-20

$4.49

$

In Stock, Qty 20+

21

Cub Cadet 736-0351

Flat Washer .760 ID x .50 OD

$4.49

$

In Stock, Qty 20+

22

Cub Cadet 717-1445

Gear, 80-tooth

$107.99

$

Usually ships in 3-6 days

23

Cub Cadet 714-0126

Key, 3/16 x 3/4

$4.99

$

In Stock, Qty 20+

24

Cub Cadet 717-1444

7-Tooth Shaft

(Superseded to 917-04094) 

$96.99

$

Usually ships in 3-6 days

25

Cub Cadet 715-0249

Roll Pin

(Superseded to 915-0249) 

$6.99

$

In Stock, Qty 19

26

Cub Cadet 714-0143

Clik Pin

(Superseded to 714-0143A) 

$6.49

$

In Stock, only 2 left!

27

Cub Cadet 684-0042C

Friction Wheel Assembly

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 8

28

Cub Cadet 656-0012A

Friction Wheel Disc

(Superseded to 956-0012A) 

$125.99

$

In Stock, only 2 left!

29

Cub Cadet 684-0013B

Wheel Shift Rod Assembly

(Superseded to 684-04243) 

$

Not available 

30

Cub Cadet 746-0897

Drive Cable

(Superseded to 946-0897) 

$24.99

$

In Stock, only 2 left!

31

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, Qty 10

32

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

(Superseded to 984-0021-0637) 

Variations

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

Not available 

$

Not available 

33

Cub Cadet 732-0264

Extension Spring

(Superseded to 932-0264) 

$4.99

$

In Stock, only 2 left!

34

Cub Cadet 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

35

Cub Cadet 746-0898

Drive Cable

(Superseded to 946-0898) 

$27.99

$

In Stock, only 2 left!

36

Cub Cadet 738-0869

Wheel Axle, .750 x 22.21

$139.99

$

Usually ships in 3-6 days

37

Cub Cadet 784-5617A

Friction Wheel Side Plate

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 8

38

Cub Cadet 735-0243B

Friction Wheel Rubber

(Superseded to 935-0243B) 

$15.99

$

In Stock, Qty 20+

39

Cub Cadet 718-0301A

Friction Wheel Hub

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 8

40

Cub Cadet 618-0063A

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

41

Cub Cadet 734-1859-0901

TIRE 15X5 - Carlisle (0901)

(Superseded to 734-1859-0901) 

Variations

Cub Cadet 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$105.99

$

Usually ships in 3-6 days

$105.99

$

Usually ships in 3-6 days

42

Cub Cadet 741-0401

Sleeve Bearing, .75 x .87 x 1

(Superseded to 941-0401) 

$7.49

$

In Stock, Qty 6

43

Cub Cadet 734-0255

Air Valve

(Superseded to 934-0255) 

$4.49

$

In Stock, Qty 20+

44

Cub Cadet 634-0140-0911

WHEEL ASSEMBLY (15 x 5 x 6) - Carlisle Gray (0911)

Note: (Incl. Ref. 41, 42, & 43)

Variations

Cub Cadet 634-0140-0911

WHEEL ASSEMBLY (15 x 5 x 6) - Carlisle Gray (0911)

$

Not available 

Cub Cadet 634-0140-0931

WHEEL ASSEMBLY (15 x 5 x 6) - Carlisle Beige (0931)

$

Not available 

Cub Cadet 634-0140-0941

WHEEL ASSEMBLY (15 x 5 x 6) - Carlisle Yellow (0941)

$

Not available 

$

Not available 

45

Cub Cadet 712-0703A

Insert Nut, 5/16-18

$7.49

$

Usually ships in 3-6 days

46

Cub Cadet 784-5632A-0637

USE 984-0064-0637 ARM ASSY-ID - POWDER BLACK (0637)

(Superseded to 984-0064-0637) 

Variations

Cub Cadet 784-5632A-0637

USE 984-0064-0637 ARM ASSY-ID - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

$32.99

$

In Stock, only 2 left!

47

Cub Cadet 710-1652

Hex Washer Screw 1/4-20

$4.49

$

In Stock, Qty 20+

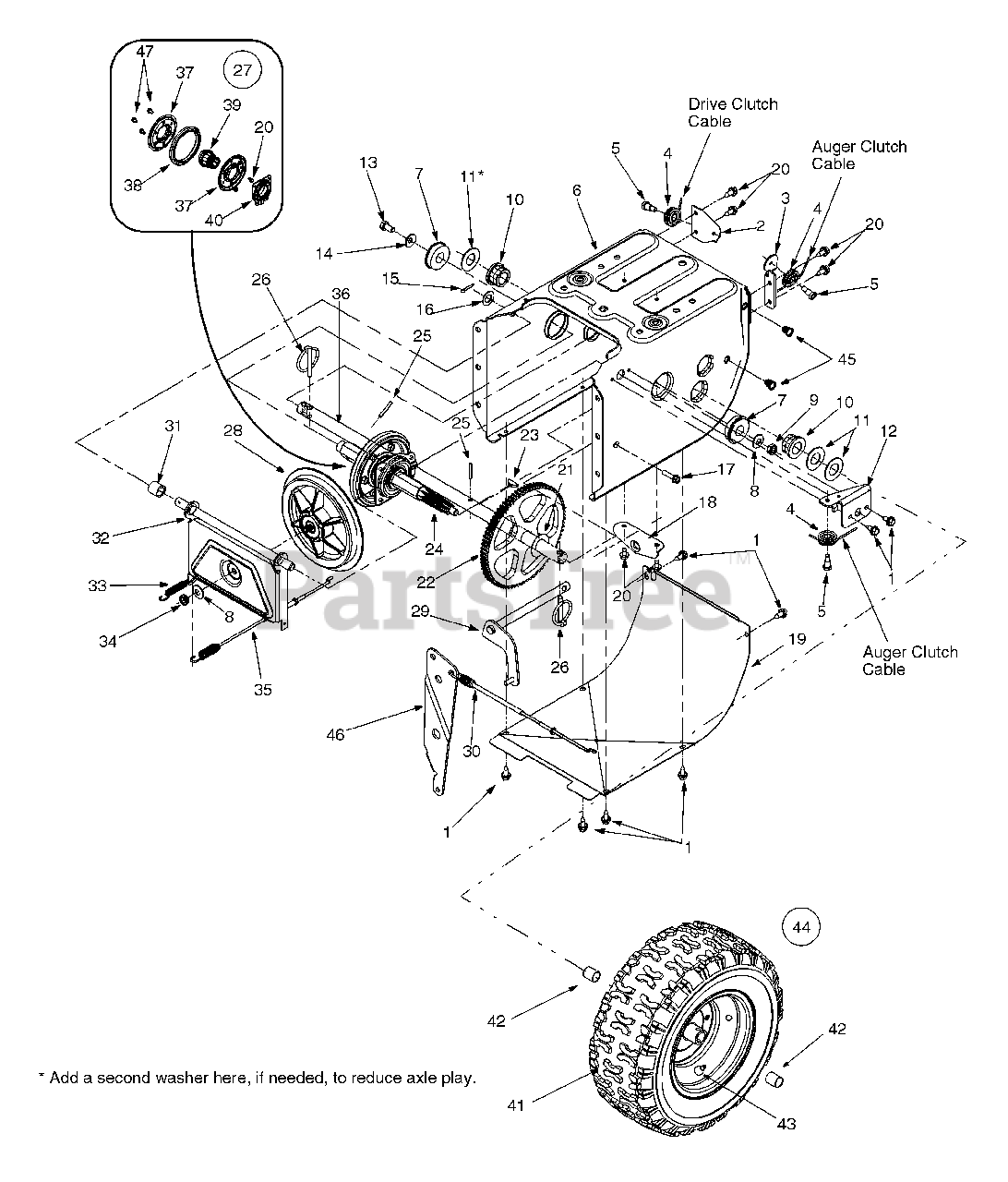

724 WE (31AE633E100) - Cub Cadet 24" Snow Thrower (2002) Frame Assembly Parts Diagram

Frame Assembly Parts Diagram
