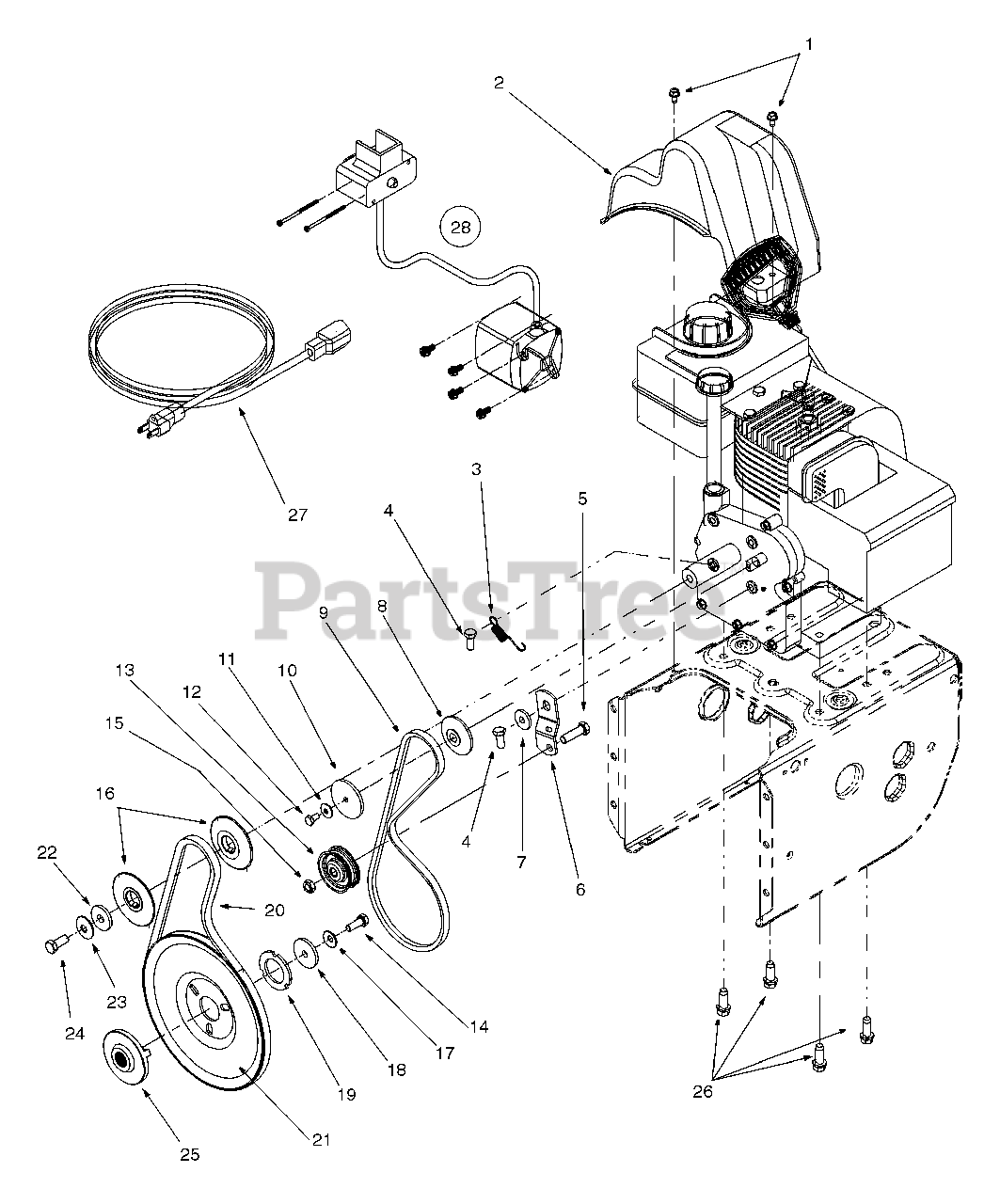

724 WE (31AE633E100) - Cub Cadet 24" Snow Thrower (2002) Drive Parts Diagram

24" Snow Thrower

Drive Parts Diagram

  • Title
1

Cub Cadet 710-1652

Hex Washer Screw 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 731-1324

Belt Cover

$21.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 732-0339

Extension Spring
(Superseded to 932-0339)

$

$

Not available

4

Cub Cadet 710-0627

Hex Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 12

0

6

Cub Cadet 05896A

Drive Clutch Bracket

Variations

Cub Cadet 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 756-0985

Pulley Half

$

$

Not available

9

Cub Cadet 754-0343

V-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

10

Cub Cadet 756-0984

Pulley Half

$

$

Not available

11

Cub Cadet 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0230

Hex Cap Screw 1/4-28 x .50

$

$

Not available

13

Cub Cadet 756-0313

Flat Idler

$26.99

$

In Stock, Qty 6

0

14

Cub Cadet 710-1245A

Lock Cap Screw 5/16-24

$

$

Not available

15

Cub Cadet 712-0181

Lock Jam Nut 3/8-16

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0505

Flat Washer

$6.49

$

In Stock, only 2 left!

0

19

Cub Cadet 736-0507

Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 754-0430A

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

21

Cub Cadet 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0247

Flat Washer

$9.49

$

In Stock, Qty 16

0

23

Cub Cadet 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0

24

Cub Cadet 710-0696

Hex Cap Screw 3/8-24

$6.99

$

In Stock, only 2 left!

0

25

Cub Cadet 748-0360

Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 2 left!

0

26

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

27

Cub Cadet 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

28

Cub Cadet OEM-390-987

Electric Start Kit
(Superseded to TC-33329H)

Note: (Includes Ref. 27)

$

$

Not available
