724 E (31AE633E101) - Cub Cadet 24" Snow Thrower (1999) Handle Assembly & Chute Parts Diagram

24" Snow Thrower

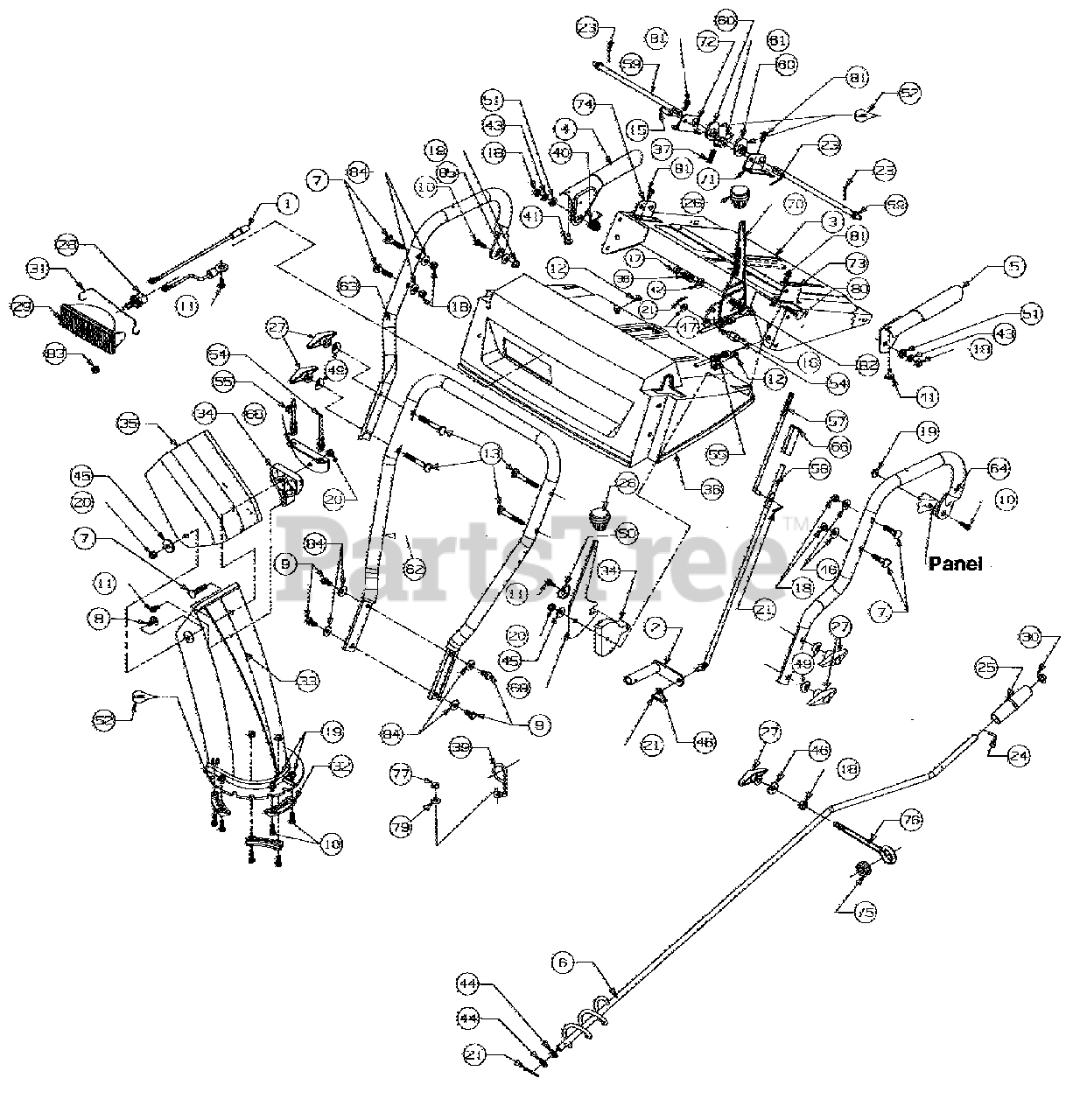

Handle Assembly & Chute Parts Diagram

  • Title
1

Cub Cadet 629-0059

Harness-Light
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-0008A

Arm-Shift
(Superseded to 684-0008A-0637)

Variations

Cub Cadet 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-0102

Panel Ass'y.-Handle w/Tilt
(Superseded to 684-0102A)

Variations

Cub Cadet 684-0102-0498

USE 684-0102A-0498 PANEL ASM: - OLD CUB YELLOW (0498)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0638

USE 684-0102A-0638 PANEL ASM: - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0650

USE 684-0102A-0650 PANEL ASM: - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0662

USE 684-0102A-0662 PANEL ASM: - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0665

USE 684-0102A-0665 PANEL ASM: - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0689

USE 684-0102A-0689 PANEL ASM: - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0716

USE 684-0102A-0716 PANEL ASM: - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0721

USE 684-0102A-4044 PANEL ASM: - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-0036

Handle-Engagement-R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-0037

Handle-Engagement-L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

6

Cub Cadet 684-0022

Crank-Chute
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

7

Cub Cadet 710-0262

Bolt-Carriage

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-0451

Bolt-Carriage

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3008

Screw-Hex

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3015

Screw-Hex

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0896

Screw-Washer Head-Hex

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1003

Screw-Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0449

Bolt-Carriage
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0653

Pin-Clevis

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

17

Cub Cadet 712-0116

Nut-Hex Lock

$4.99

$

In Stock, Qty 6

0

18

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3027

Nut-Hex Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

20

Cub Cadet 712-0429

Nut-Hex Lock

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 714-0104

Pin-Cotter Internal

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0507

Pin-Cotter

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 715-0138

Pin-Roll
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

25

Cub Cadet 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 5

0

26

Cub Cadet 720-0232

Knob-Shift
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

27

Cub Cadet 720-0284

Knob-Wing Nut

$6.99

$

In Stock, Qty 20+

0

28

Cub Cadet 725-1658

Lamp
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

29

Cub Cadet 725-1672

Housing-Lamp
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

30

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 747-1136

Clip-Retaining

$11.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-0851A

Keeper-Chute

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 731-1300A

Chute-Lower
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

34

Cub Cadet 731-1313B

Guide-Cable
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

35

Cub Cadet 731-1320

Chute-Upper
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 6

0

36

Cub Cadet 731-1737A

Panel-Handle

$

$

Not available

37

$4.49

$

Usually ships in 3-6 days

0

38

$4.99

$

In Stock, Qty 6

0

39

Cub Cadet 732-0705

Wire-Control

$11.99

$

Usually ships in 3-6 days

0

40

$4.49

$

In Stock, Qty 13

0

$7.99

$

In Stock, only 4 left!

0

42

Cub Cadet 736-0105

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0185

Washer-Flat

$3.99

$

In Stock, Qty 20+

0

45

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0275

Washer-Bell

$6.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0264

Washer-Flat

$6.99

$

In Stock, only 1 left!

0

49

Cub Cadet 736-0451

Washer-Saddle

$4.49

$

In Stock, Qty 11

0

50

Cub Cadet 736-0506

Washer
(Superseded to 736-0506A)

$

$

Not available

51

$6.99

$

In Stock, only 1 left!

0

52

Cub Cadet 737-0133

Lubricant
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

54

Cub Cadet 746-0896

Cable-Chute Control
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

55

Cub Cadet 746-0901

Cable-Chute Control
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 747-0620A

Rod-Shift Upper

$11.99

$

In Stock, only 3 left!

0

58

Cub Cadet 747-0621

Rod-Shift Lower

$

$

Not available

59

$22.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 748-0362

Cam-Handle Lock

$7.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 748-0363

Pawl-Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 749-0951

Handle-Lower
(Superseded to 749-0951A)

Variations

Cub Cadet 749-0951-0637

USE 749-0951A-0637 HANDLE-LOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0951-0638

USE 749-0951A-0638 HANDLE-LOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 749-0954

Handle-R.H.

$

$

Not available

64

Cub Cadet 749-0955

Handle-L.H.
(Superseded to 749-0955-0637)

Variations

Cub Cadet 749-0955-0637

HANDLE-LH C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

66

Cub Cadet 750-0963

Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

68

Cub Cadet 784-5594

Bracket-Cable

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 784-5604

Handle-Chute Tilt
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 784-5619A

Handle-Shift
(Superseded to 753-05395)

Variations

Cub Cadet 784-5619A-0637

USE 753-05395 KIT-SHIFT HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

71

Cub Cadet 784-5679

Bracket-Handle Support-L.H.
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 784-5680

Bracket-Handle Support-R.H.
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 784-5681

Bracket-Handle Support-L.H.

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 784-5682

Bracket-Handle Support-R.H.
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 735-0234

Grommet Rubber

$5.49

$

In Stock, only 2 left!

0

76

Cub Cadet 747-0697

Eyebolt-Chute

$8.49

$

In Stock, only 1 left!

0

77

Cub Cadet 712-0324

Nut-Hex Lock

$3.99

$

In Stock, Qty 16

0

79

Cub Cadet 736-0463

Washer-Flat

$4.49

$

In Stock, Qty 12

0

80

Cub Cadet 710-0805

Screw-Hex
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

81

Cub Cadet 710-0599

Screw-Tap Hex

$4.49

$

In Stock, Qty 20+

0

82

$6.99

$

In Stock, Qty 8

0

83

Cub Cadet 712-0271

Nut-Sems Hex

$4.49

$

In Stock, Qty 20+

0

84

Cub Cadet 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

85

UNKNOWN

$

$

Not available
