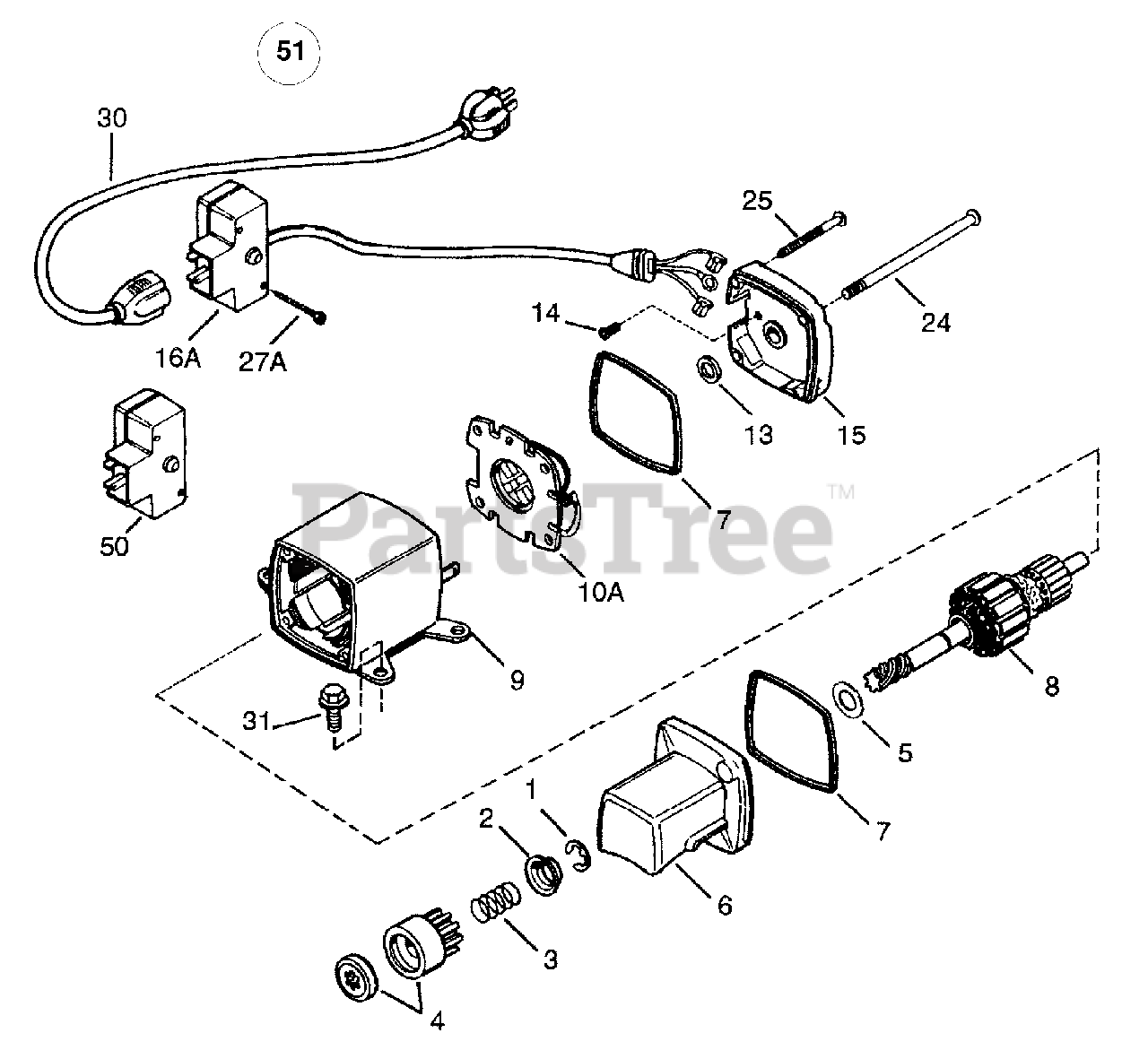

724 E (31AE633E100) - Cub Cadet 24" Snow Thrower Engine (1998) Starter Parts Diagram

24" Snow Thrower Engine

Starter Parts Diagram

  • Title

1

Cub Cadet TC-31749

Retainer Ring

$1.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-33522

Spring Retainer

$5.99

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-33769

Anti-Drift Spring

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet TC-33524

Nut & Gear
(Superseded to TC-37332)

$56.99

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-35911

Thrust Washer

$5.99

$

In Stock, only 1 left!

0

6

Cub Cadet TC-35461

Drive End Cap Ass'y

Note: (Incl. 7)

$59.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-35450

"O" Ring

$3.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-35912

Armature

$

$

Not available

9

Housing Ass'y

Note: (Must Purchase Complete Motor)

$

$

Not available

10A

Cub Cadet TC-35452A

Brush & Spring Card Ass'y

$58.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-590500

Thrust Washer

$1.99

$

In Stock, only 1 left!

0

14

Cub Cadet TC-33441

Ground Screw

$

$

Not available

15

Cub Cadet TC-35453

Commutator End Cap Ass'y

$41.99

$

Usually ships in 3-12 days

0

16A

Cub Cadet TC-35454

Switch Box Ass'y

Note: (Incl. 27A)

$

$

Not available

24

Cub Cadet TC-35462

Case Bolt

$3.99

$

In Stock, only 2 left!

0

25

Cub Cadet TC-35456

Grounding Screw

$1.99

$

In Stock, only 3 left!

0

27A

Cub Cadet TC-650819

Screw, 6-32 x 2-1/2"

$1.99

$

In Stock, only 3 left!

0

30

Cub Cadet TC-32450B

Extension Cord (10' 6")
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

31

Cub Cadet TC-650759

Screw, Torx T-30, 1/4-20 x 23/32"

$1.99

$

Usually ships in 3-12 days

0

50

Cub Cadet TC-730623

Switch Repair Kit

$

$

Currently unavailable

51

Cub Cadet TC-33290E

Electric Starter (110 Volt)
(Superseded to TC-33290H)

$377.99

$

Usually ships in 3-6 days

0
