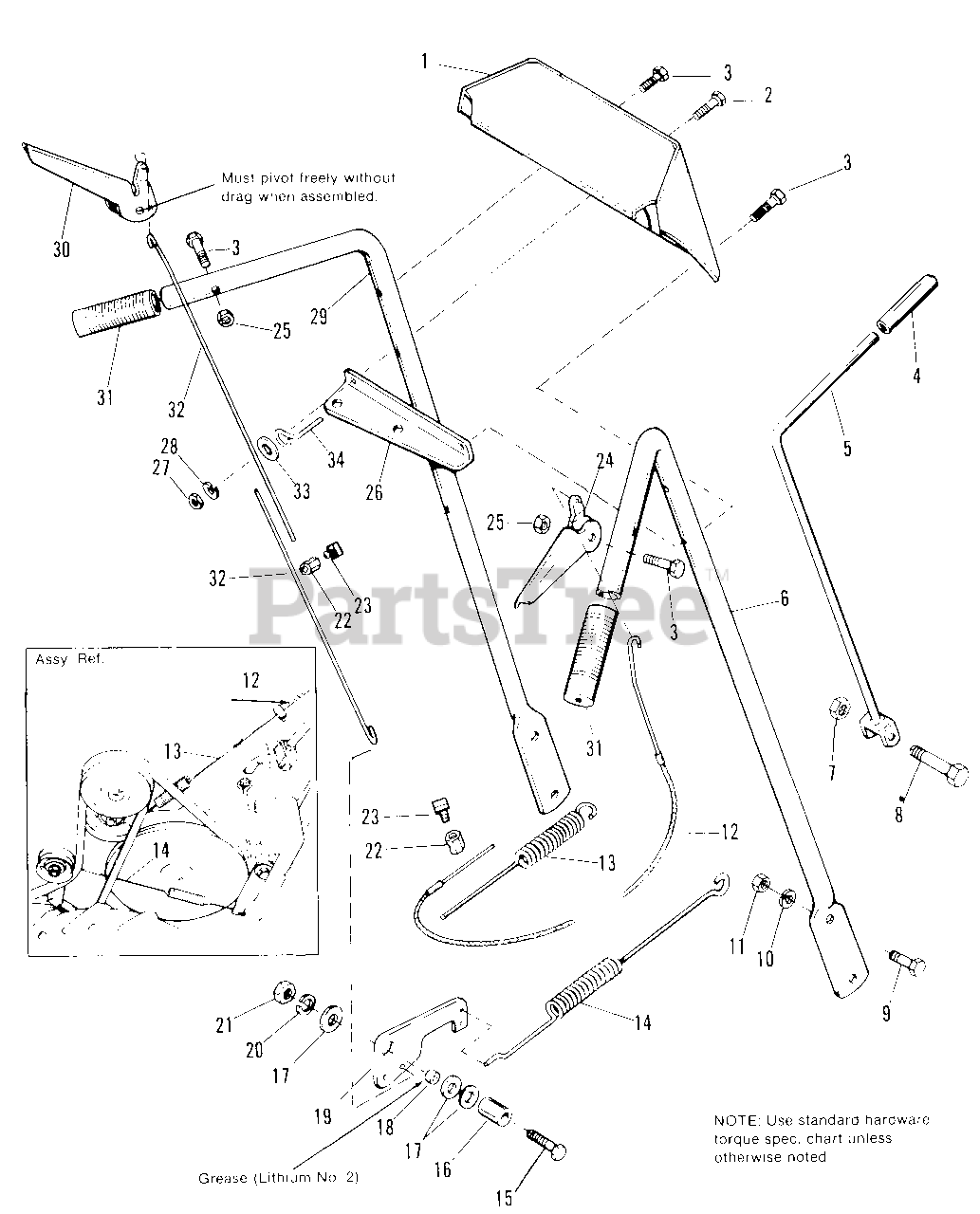

724 (1690587) - Simplicity Snowbuster 24" Snow Thrower, 7hp Handles & Controls Group Parts Diagram

Snowbuster 24" Snow Thrower, 7hp

Handles & Controls Group Parts Diagram

  • Title
1

Simplicity 1667589

HOUSING ASSY.

$

$

Not available

2

Simplicity 2821962

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4

$

$

Not available

3

Simplicity 2822837

CAPSCREW, Hex Hd., 1/4-20 x 1-1/2

$

$

Not available

4

Simplicity 2161105

GRIP, Handle

$

$

Not available

5

Simplicity 171411

ROD ASSY., Shift

$

$

Not available

6

Simplicity 1654136

HANDLE, R.H.

$

$

Not available

7

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

8

Simplicity 2821978

CAPSCREW, Hex Hd., 5/16-18 x 2

$

$

Not available

9

Simplicity 2823325

CAPSCREW, Hex Hd., 5/16-18 x 7/8

$

$

Not available

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1654503

CABLE & WIRE ASSY.

$

$

Not available

$53.99

$

Usually ships in 2-12 days

0

14

Simplicity 1654568SM

SPRING, Pivot Arm

$31.99

$

Usually ships in 2-12 days

0

15

Simplicity 2826110

CAPSCREW, Hex Hd., 7/16-14 x 2-3/4

$

$

Not available

$

$

Not available

17

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

$

$

Not available

19

Simplicity 1654574

ARM, Pivot

$

$

Not available

20

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

21

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

22

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

23

Simplicity 928722

SETSCREW, #10-24 x 5/8

$

$

Not available

24

Simplicity 1656589

GRIP, Clutch, R.H.

$

$

Not available

25

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

26

Simplicity 171422

GUIDE, Rod

$

$

Not available

27

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

29

Simplicity 1654137

HANDLE, L.H.

$

$

Not available

30

Simplicity 1656588

GRIP, Clutch, L.H.

$

$

Not available

$

$

Not available

32

Simplicity 1654506SM

WIRE, Control

$

$

Not available

33

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

34

Simplicity 1667735

STOP, Belt

$

$

Not available
