7233 (546G424-100) - Cub Cadet Compact Tractor T/M Control - HST Parts Diagram

Compact Tractor

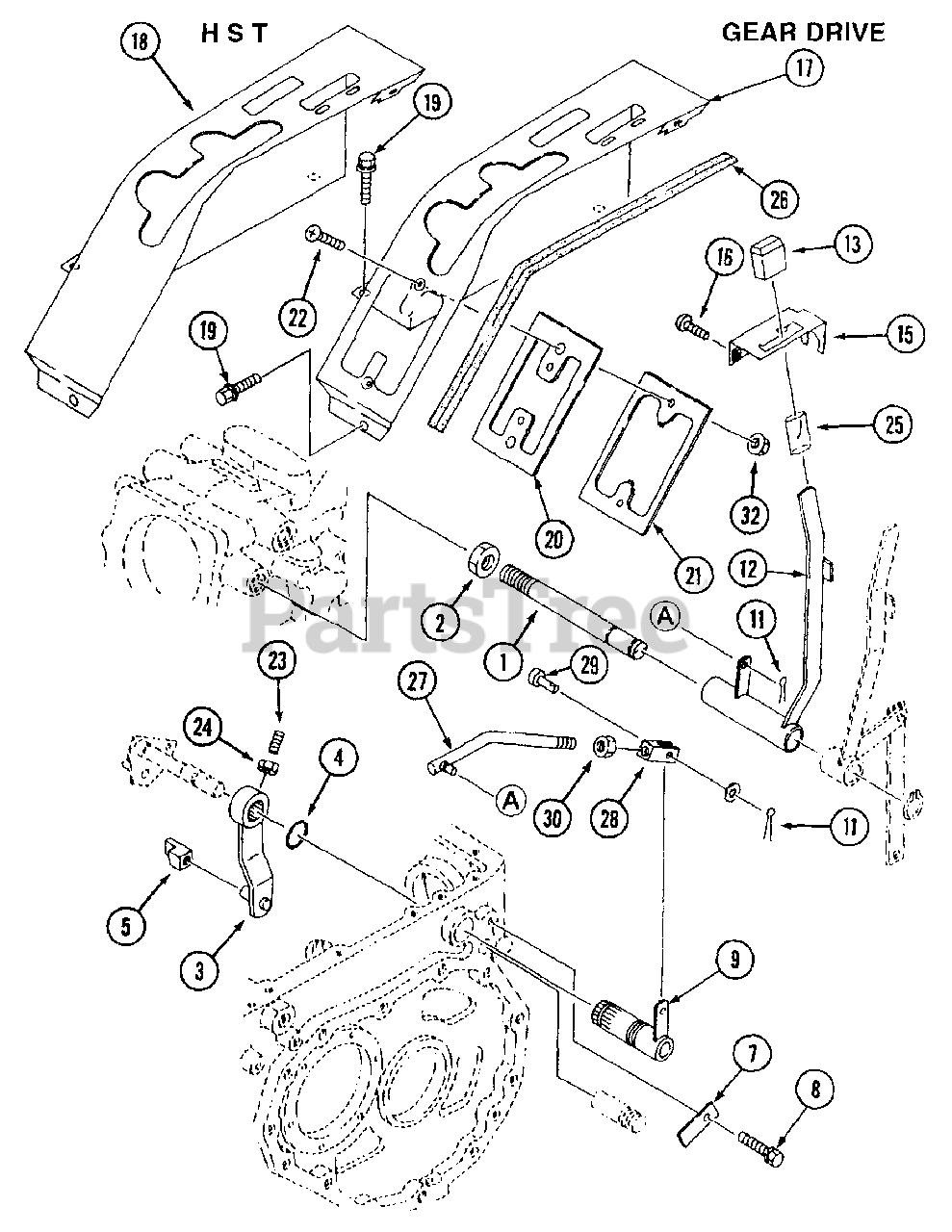

T/M Control - HST Parts Diagram

  • Title
1

Cub Cadet MA-19641741000

Shaft, PTO Lever

$

$

Not available

$

$

Not available

3

Cub Cadet MA-19641742000

Shifter, R. PTO
(Superseded to MA-19641742AG0)

$

$

Not available

$

$

Not available

5

$

$

Not available

$

$

Not available

$

$

Not available

9

Cub Cadet MA-19641743AG0

Arm, Rear PTO

$

$

Not available

11

Cub Cadet MA-05200125016

Pin, Split
(Superseded to MA-05200125015)

$

$

Not available

12

Cub Cadet MA-19641746AG0

Lever, Rear PTO

$

$

Not available

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet MA-19641748AG0

Lever, PTO Ass'y.

Note: Includes items 12 & 25

$

$

Not available

15

Cub Cadet MA-19641747AG0

Plate, Rear PTO

$

$

Not available

$

$

Not available

17

Lever, Guide L.H.

Note: Not used on this application

$

$

Not available

18

Cub Cadet MA-19641751BD0

Lever, Guide L.H.

$

$

Not available

$

$

Not available

20

Guide, Rubber

Note: Not used on this application

$

$

Not available

21

Plate

Note: Not used on this application

$

$

Not available

22

Screw

Note: Not used on this application

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

27

$

$

Not available

$

$

Not available

29

$

$

Not available

$

$

Not available

32

Nut

Note: Not used on this application

$

$

Not available
