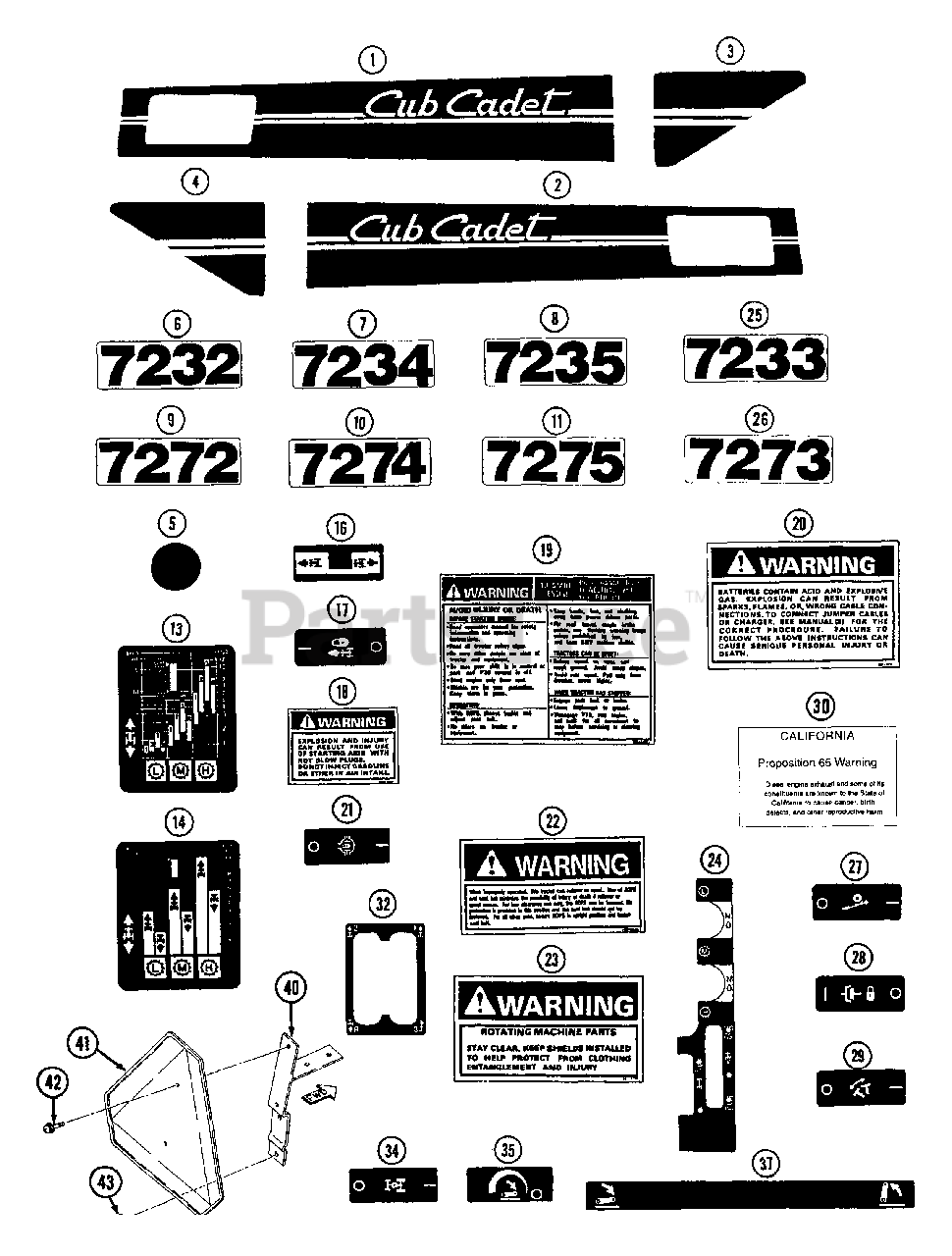

7232 (545-414D100) - Cub Cadet Compact Tractor Decal Parts Diagram

Compact Tractor

Decal Parts Diagram

  • Title

1

Cub Cadet MA-19682753000

Label, Side L.H.

Note: W/O screen hole & w/o `by MTD'

$

$

Not available

Cub Cadet MA-19682753001

Label, Side L.H.

Note: W/screen hole & w/o `by MTD'

$

$

Not available

Cub Cadet MA-19682753003

Label, Side L.H.

Note: W/screen hole & w/`by MTD'

$

$

Not available

2

Cub Cadet MA-19682754000

Label, Side R.H.

Note: W/O screen hole & w/o `by MTD'

$

$

Not available

Cub Cadet MA-19682754001

Label, Side R.H.

Note: W/screen hole & w/o `by MTD'

$

$

Not available

Cub Cadet MA-19682754003

Label, Side R.H.

Note: W/screen hole & w/`by MTD'

$

$

Not available

3

Cub Cadet MA-19672703000

Label, Rear L.H.

Note: Used with MA-19682753000 & MA-19682753001 side panel labels.

$

$

Not available

Cub Cadet MA-19672703001

Label, Rear L.H.

Note: Used with MA-19682753003 side panel label.

$

$

Not available

4

Cub Cadet MA-19672704000

Label, Rear R.H.

Note: Used with MA-19682754000 & MA-19682753001 side panel labels.

$

$

Not available

Label, Rear R.H.

Note: Used with MA-19682754003 side panel label.

$

$

Not available

5

Cub Cadet MA-19042711001

Label, Steering

$

$

Not available

6

Cub Cadet MA-19682713000

Label, Model 7232

$

$

Not available

Cub Cadet MA-19682713002

Label, Model 7232

Note: w/`2WD-Gear'

$

$

Not available

7

Cub Cadet MA-19682714000

Label, Model 7234

$

$

Not available

Cub Cadet MA-19682714002

Label, Model 7234

Note: w/`4WD-Gear'

$

$

Not available

8

Cub Cadet MA-19682715000

Label, Model 7235

$

$

Not available

Cub Cadet MA-19682715002

Label, Model 7235

Note: w/`4WD-Hydro'

$

$

Not available

9

Label, Model 7272

Note: Not used on this product

$

$

Not available

Label, Model 7272

Note: w/`2WD-Gear'; Not used on this product

$

$

Not available

10

Label, Model 7274

Note: Not used on this product

$

$

Not available

Label, Model 7274

Note: w/`4WD-Gear'; Not used on this product

$

$

Not available

11

Label, Model 7275

Note: Not used on this product

$

$

Not available

Label, Model 7275

Note: w/`4WD-Hydro'; Not used on this product

$

$

Not available

13

Cub Cadet MA-19642711000

Label, Speed

$

$

Not available

14

Cub Cadet MA-19642712000

Label, Speed

$

$

Not available

16

Cub Cadet MA-19632727000

Label, AST Control

$

$

Not available

17

Cub Cadet MA-19632732000

Label, SP Control

$

$

Not available

18

Cub Cadet MA-19042746000

Label, Warning

$

$

Not available

19

Cub Cadet MA-19632737000

Label, Warning

$

$

Not available

20

Cub Cadet MA-19042759000

Label, Warning

$

$

Not available

21

Cub Cadet MA-19632718000

Label, Diff. Lock

$

$

Not available

22

Cub Cadet MA-19042765001

Label, Warning

$

$

Not available

23

Cub Cadet MA-19042761000

Label, Warning

$

$

Not available

24

Cub Cadet MA-19642715000

Mark Range

$

$

Not available

25

Cub Cadet MA-19682771000

Label, Model 7233

$

$

Not available

Cub Cadet MA-19682771002

Label, Model 7233

Note: w/`2WD-Hydro'

$

$

Not available

26

Label, Model 7273

Note: Not used on this product

$

$

Not available

Label, Model 7273

Note: w/`2WD-Hydro'; Not used on this product

$

$

Not available

27

Cub Cadet MA-19632717000

Label, Brake

$

$

Not available

28

Label, Declutch

Note: Not used on this product

$

$

Not available

29

Cub Cadet MA-19632722000

Label, Tilt

$

$

Not available

30

Cub Cadet MA-19672725000

Label, Proposition

Note: Beginning with Serial No. 20611

$

$

Not available

32

Cub Cadet MA-19642714000

Label, Main

$

$

Not available

34

Cub Cadet MA-19632731000

Label, MFD

$

$

Not available

35

Cub Cadet MA-19632723000

Label, DRC

$8.99

$

Usually ships in 3-6 days

0

37

Cub Cadet MA-19642781000

Label, Position

$8.99

$

Usually ships in 3-6 days

0

40

Cub Cadet MA-19632881BD0

Plate, SMV

$

$

Not available

41

Cub Cadet 779-3618

Emblem, SMV
(Superseded to 979-3618)

$

$

Not available

42

Cub Cadet MA-H2420106016

Screw

$

$

Not available

43

Cub Cadet MA-F3012108001

Nut

$

$

Currently unavailable

Cub Cadet MA-19642618BC0

Side Cover

$

$

Not available

Cub Cadet MA-19682618BC0

Side Cover

$340.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-19642619BC0

Side Cover

$

$

Not available

Cub Cadet MA-19682619BC0

Side Cover

$

$

Not available
