7231 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) Handle And Rear Bagger Group Model: R7270ae Parts Diagram

Walk-Behind Mower

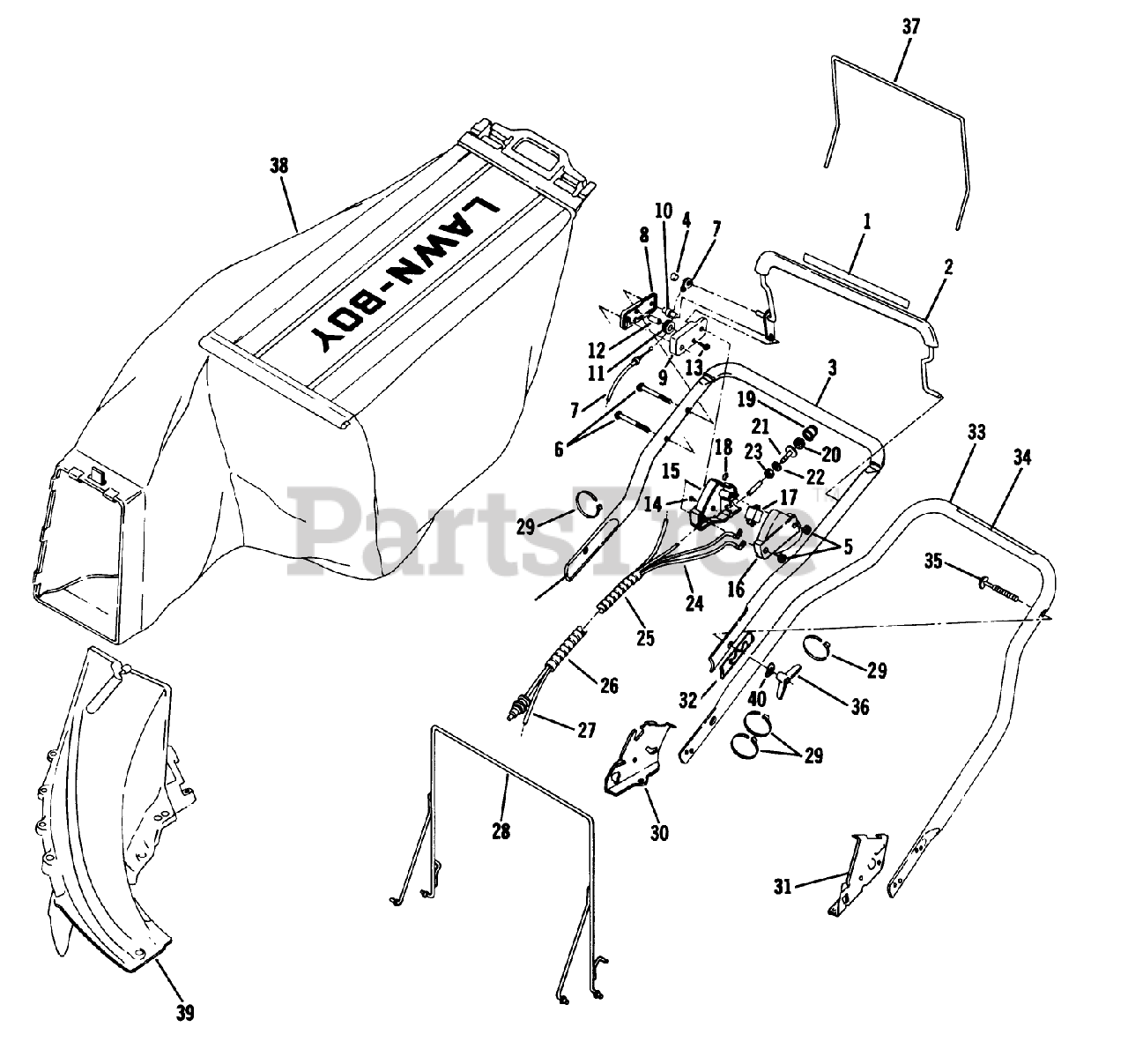

Handle And Rear Bagger Group Model: R7270ae Parts Diagram

  • Title

1

Lawn-Boy 611244

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

2

Lawn-Boy 682930

See Supercession: 683480
(Superseded to 683480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 682738

DISCONTINUED
(Superseded to 611277)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

4

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 611258

NUT C/LOCK E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 611536

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 682933

See Supercession: 683041
(Superseded to 683041)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 615540

Control Case-Outer

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Currently unavailable

9

Lawn-Boy 611539

See Supercession: 683171
(Superseded to 683171)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

10

Lawn-Boy 611541

COLUMN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611195

See Supercession: 612564
(Superseded to 612564)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 611542

PIN SKF

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 611543

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, Qty 6

0

14

Lawn-Boy 611249

See Supercession: 611381
(Superseded to 611381)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 611253

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

16

Lawn-Boy 611252

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

17

Lawn-Boy 682727

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 611294

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

19

Lawn-Boy 611072

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

20

Lawn-Boy 611114

FILTER S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 607311

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

22

Lawn-Boy 611254

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

23

Lawn-Boy 608027

LOCKNUT S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.49

$

In Stock, Qty 6

0

24

Lawn-Boy 682728

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

25

Lawn-Boy 611424

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

26

Lawn-Boy 609857

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

27

Lawn-Boy 611452

DISCONTINUED
(Superseded to 611231)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 682765

HANGER AY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$134.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

30

Lawn-Boy 682715

See Supercession: 683926-03
(Superseded to 683926-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

31

Lawn-Boy 682714

See Supercession: 683925-03
(Superseded to 683925-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

32

Lawn-Boy 609692

BRACKET R/B 613462

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

33

Lawn-Boy 607545

DISCONTINUED
(Superseded to 612787)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

34

Lawn-Boy 611293

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

35

Lawn-Boy 681184

Screw-Folding Handle

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Currently unavailable

36

Lawn-Boy 607544

NUT-WING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

37

Lawn-Boy 609691

HANGER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

38

Lawn-Boy 681917

See Supercession: 99-5223
(Superseded to 99-5223)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

39

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

40

Lawn-Boy 609739

WASHER-CURVED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, Qty 8

0
