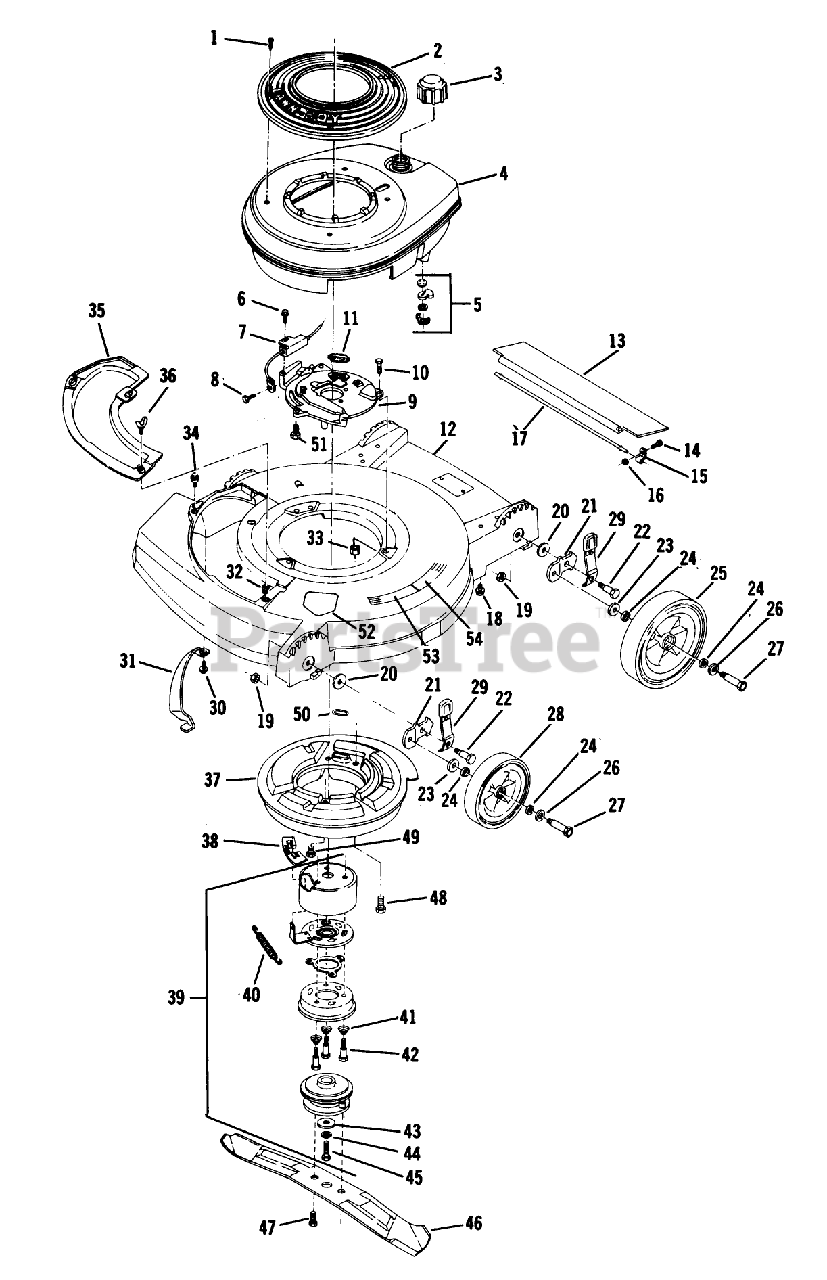

7231 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) Deck And Shroud Group Models: 7231 Parts Diagram

Walk-Behind Mower

Deck And Shroud Group Models: 7231 Parts Diagram

  • Title

1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 611383

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

FUEL CAP & INSERT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 682802

See Supercession: 16-5539
(Superseded to 16-5539)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

5

Lawn-Boy 681818

SHUT OFF VALVE KIT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

6

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 682759

CONTROL CABLE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$127.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 611318

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

9

Lawn-Boy 611373

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

10

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

11

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 682753

See Supercession: 684522
(Superseded to 684522)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$618.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 611015

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

15

Lawn-Boy 608161

CLAMP ROD KMC

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 608174

ROD 21" ADVANCE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 682974

See Supercession: 131-4520
(Superseded to 131-4520)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 678636

WHEEL & TIRE KIT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 681229

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

30

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

31

Lawn-Boy 608175

BAR-TOE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

34

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, Qty 12

0

35

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$36.99

$

In Stock, only 3 left!

0

36

Lawn-Boy 606733

WING SCREW LAWRE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$9.99

$

In Stock, Qty 6

0

37

Lawn-Boy 682798

DISCONTINUED
(Superseded to 684089)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

38

Lawn-Boy 611507

DISCONTINUED
(Superseded to 683279)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

39

Lawn-Boy 682820

DISCONTINUED
(Superseded to 683098)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

40

Lawn-Boy 611415

SPRING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$67.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 611418

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

42

Lawn-Boy 611399

SCREW,SHOULDER SM

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 611412

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 611413

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

45

Lawn-Boy 611417

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

46

Lawn-Boy 682917

See Supercession: 612540-03
(Superseded to 612540-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$43.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 611398

SCREW SEMS

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 611394

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

49

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.99

$

In Stock, Qty 14

0

50

Lawn-Boy 611397

SEAL

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

51

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

52

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$6.99

$

In Stock, Qty 6

0

53

Lawn-Boy 609961

PAD FOOT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available

54

Lawn-Boy 609993

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not be available in matching colors.

$

$

Not available
