7229 G - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) DECK AND SHROUD GROUP MODELS: 5247, 7299, 7268, R7268 Parts Diagram

Walk-Behind Mower

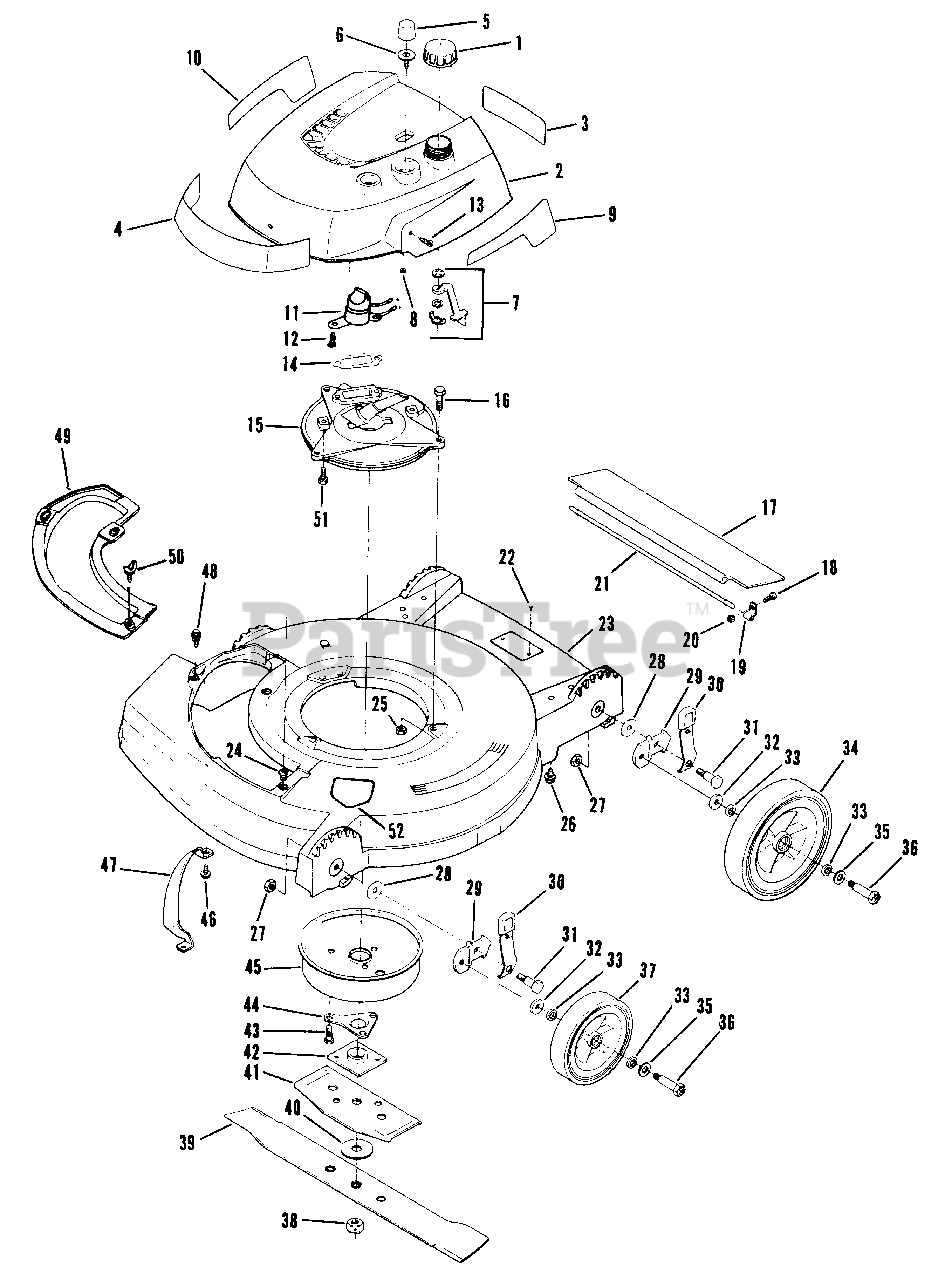

DECK AND SHROUD GROUP MODELS: 5247, 7299, 7268, R7268 Parts Diagram

  • Title

1

Lawn-Boy 681929

Fuel Cap
(Superseded to 682755)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 681728

Shroud-Engine
(Superseded to 682586)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 609727

Decal-Instructions

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 609865

Decal-Lawn-Boy

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 607310

Bulb-Primer
(Superseded to 610482)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 607311

Base-Primer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 681817

Fuel Shut-Off Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 608027

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

9

Lawn-Boy 609864

Decal-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 609863

Decal-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 682513

Switch-On-Off
(Superseded to 104-4446)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 609549

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608997

Screw-Shroud Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

14

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

15

Lawn-Boy 609119

Plate-Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 604862

Screw-Muffler Plate to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611014

Shield-Trailing 19"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. 19" Models Only

$

$

Not available

17

Lawn-Boy 611015

Shield-Trailing 21"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608161

Clamp

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 602315

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 608160

Rod-Trailing Shield 19"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. 19" Models Only

$

$

Not available

21

Lawn-Boy 608174

Rod-Trailing Shield 21"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 602175

Screw-Model Plate Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 681759

Housing-19"
(Superseded to 684521)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. 19" Models Only

$

$

Not available

23

Lawn-Boy 681760

Housing-21"
(Superseded to 684522)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$618.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.49

$

In Stock, Qty 13

0

25

Lawn-Boy 608311

Nut-Muffler Plate to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 607188

Screw-Handle Bracket to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

27

Lawn-Boy 603773

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 608834

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 608833

Bracket-Wheel Height Adjustment
(Superseded to 608833-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 681229

Knob & Spring Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 608835

Shoulder Bolt
(Superseded to 610646)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 603620

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 678637

Wheel-Rear
(Superseded to 131-4520)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 603441

Bolt-Wheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

37

Lawn-Boy 678636

Wheel-Front

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 603409

Blade-19"
(Superseded to 603409-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. 19" Models Only

$

$

Not available

39

Lawn-Boy 603703

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

40

Lawn-Boy 605058

Washer-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$5.99

$

In Stock, Qty 12

0

41

Lawn-Boy 603541

Stiffener-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 677525

Collar & Plate Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

43

Lawn-Boy 609471

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

44

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

45

Lawn-Boy 681614

Muffler Cover Assembly
(Superseded to 682876)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

47

Lawn-Boy 608159

Toe Bar-19"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. 19" Models Only

$

$

Not available

47

Lawn-Boy 608175

Toe Bar-21"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 607809

Screw-Plate & Chute Mounting
(Superseded to 614677)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, Qty 16

0

49

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

50

Lawn-Boy 606733

Wing Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

51

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

52

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0
