72274 (7000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 406427789 - 409999999) Deck Connection Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

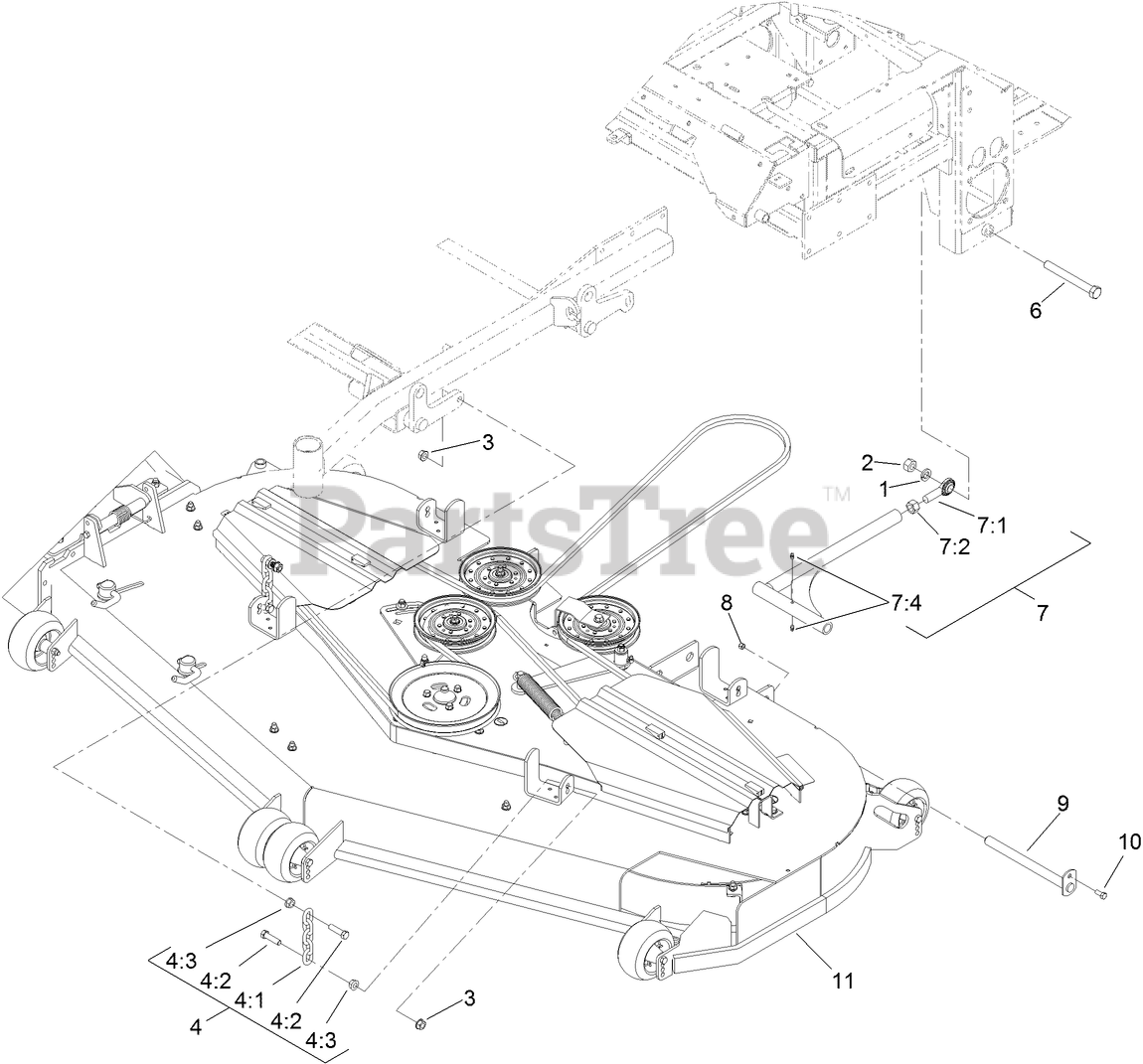

Deck Connection Assembly Parts Diagram

  • Title

1

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

3

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 13

0

4

Toro 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

4:1

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 12

0

4:2

Toro 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

4:3

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 13

0

6

Toro 327-28

SCREW-HH

$18.99

$

In Stock, only 1 left!

0

7

Toro 108-5969

STRUT ASM

$377.99

$

Usually ships in 3-6 days

0

7:1

Toro 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

7:2

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

7:4

Toro 109-1380

See Supercession: 302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

DECK ASM

Note: Not serviced separately

$

$

Not available
