72267 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 410000000 - 999999999) Fork, Caster Wheel Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

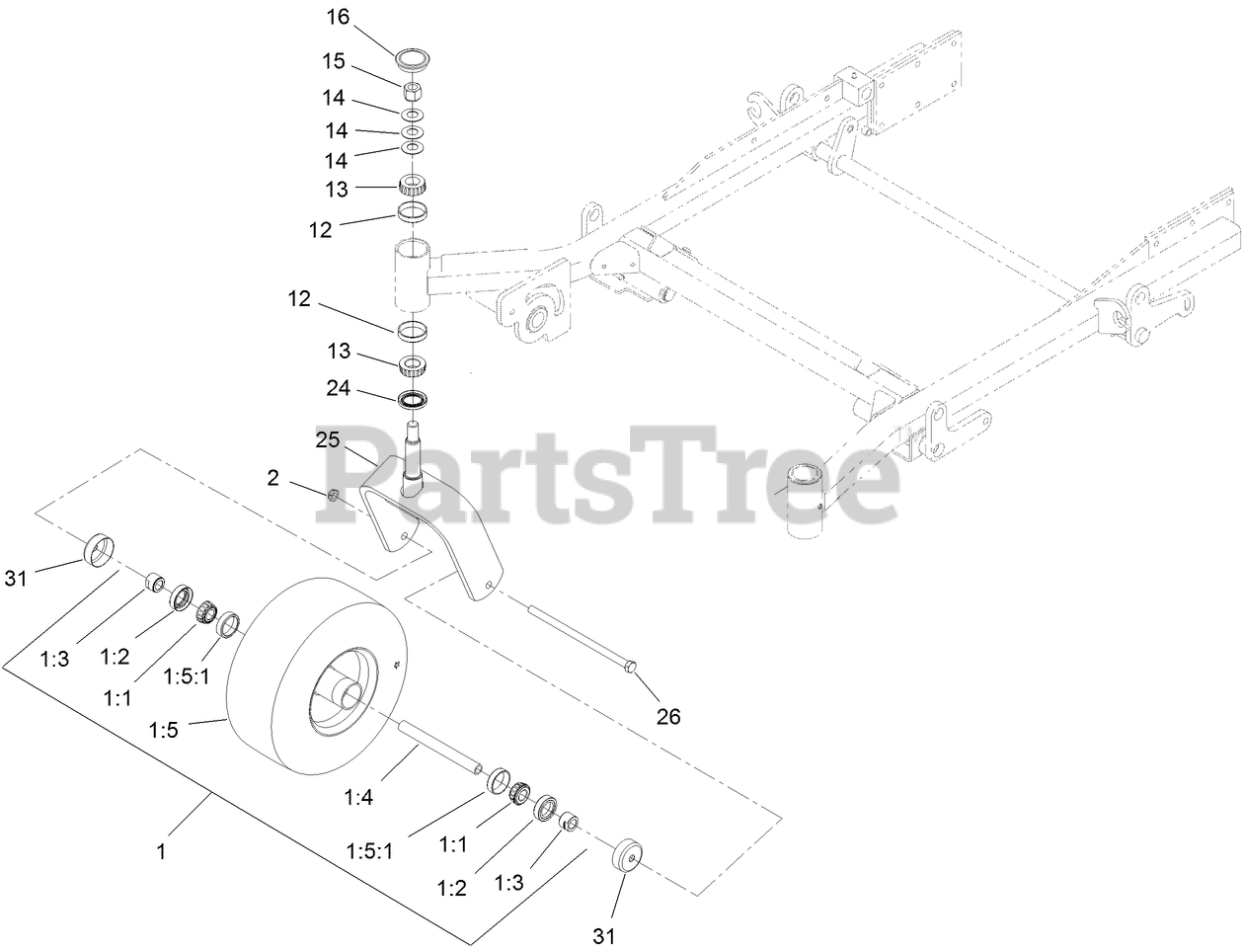

Fork, Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 132-4732

WHEEL AND BEARING ASM

$

$

Currently unavailable

1:1

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

1:2

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

1:3

Toro 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

1:4

Toro 126-5361

AXLE CASTER ASM

$19.99

$

In Stock, Qty 17

0

1:5

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:5:1

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

2

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

12

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

13

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

14

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

15

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

16

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

24

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

25

Toro 116-6707-01

See Supercession: 116-8888
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 20+

0

26

Toro 325-39

SCREW-HH

$18.99

$

In Stock, Qty 18

0

31

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0
