72264 TE (7000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 406427909 - 406429999) Deck Assembly Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

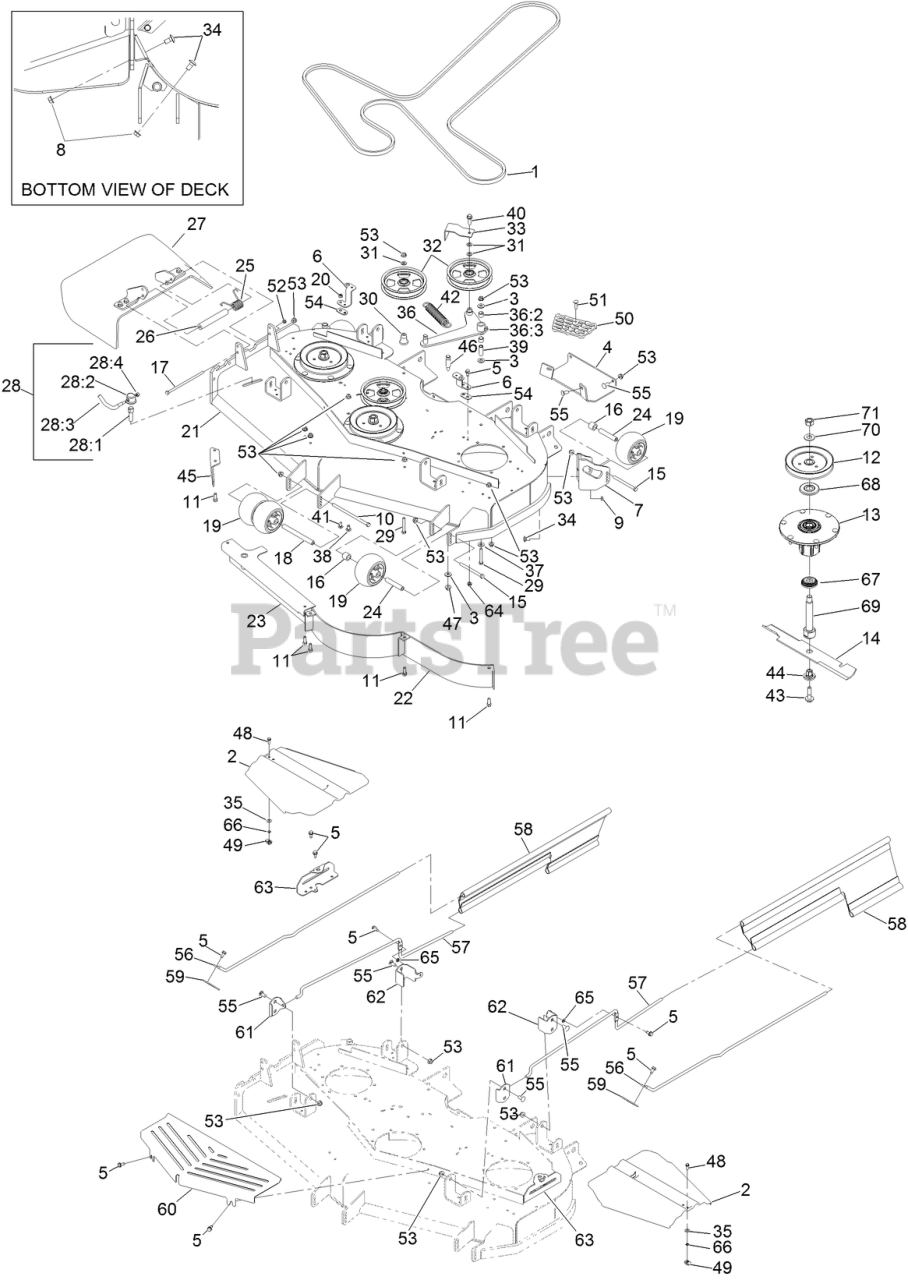

Deck Assembly Parts Diagram

  • Title

1

Toro 108-5951

BELT-V

$145.99

$

In Stock, only 1 left!

0

2

Toro 107-8536

COVER-BELT

$22.99

$

In Stock, only 2 left!

0

3

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

4

Toro 106-7358-01

PLATE-SKID

$99.99

$

Usually ships in 3-6 days

0

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 1 left!

0

7

Toro 106-7354-01

MOUNT-WHEEL, LH

$107.99

$

In Stock, only 1 left!

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

10

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

11

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

12

Toro 140-0951

PULLEY-B SECTION

$41.99

$

In Stock, only 1 left!

0

13

Toro 137-9780

SPINDLE ASM

$147.99

$

In Stock, only 2 left!

0

14

Toro 140-1242

BLADE-FLOW, HIGH

$28.99

$

Usually ships in 3-6 days

0

15

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

16

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

17

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

18

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

19

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 140-1151

DECK ASM

$2640.99

$

Usually ships in 3-6 days

0

22

Toro 105-7754-01

BAFFLE

$508.99

$

Usually ships in 3-6 days

0

23

Toro 105-7755-01

BAFFLE

$220.99

$

Usually ships in 3-6 days

0

24

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

25

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

26

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

27

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, only 1 left!

0

28

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

28:1

Toro 106-3239

SCREW-LOCK

$52.99

$

Usually ships in 3-6 days

0

28:2

Toro 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

28:3

Toro 106-3241

See Supercession: 107-1664
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

28:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 12

0

30

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

31

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

32

Toro 132-9424

PULLEY-IDLER, FLAT

$43.99

$

In Stock, Qty 16

0

33

Toro 108-7220-01

GUIDE-BELT

$41.99

$

In Stock, only 2 left!

0

34

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

36

Toro 108-5949

DECK IDLER ARM ASM

$192.99

$

In Stock, only 1 left!

0

36:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

36:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

37

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

38

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

39

Toro 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

40

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

41

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

42

Toro 110-0822

SPRING-EXTENSION

$30.99

$

In Stock, only 1 left!

0

43

Toro 109-9220

SCREW-SEMS

$8.49

$

In Stock, Qty 20+

0

44

Toro 137-9787

BUSHING-HEX

$7.99

$

In Stock, only 3 left!

0

45

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

46

Toro 110-0801

PIN-THREADED, SPRING ANCHOR

$23.99

$

In Stock, only 1 left!

0

47

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

48

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

49

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

50

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

51

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

52

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

53

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

54

Toro 119-4222-01

SPACER-BELT COVER

$20.99

$

Usually ships in 3-6 days

0

55

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

56

Toro 131-4004

ROD-SUPPORT, UPPER

$49.99

$

Usually ships in 3-6 days

0

57

Toro 131-4006

ROD-SUPPORT, LOWER

$21.99

$

Usually ships in 3-6 days

0

58

Toro 131-4029

GUARD-SIDE

$21.99

$

Usually ships in 3-6 days

0

59

Toro 131-4003-03

BRACKET-MOUNTING, UPPER ROD

$6.99

$

Usually ships in 3-6 days

0

60

Toro 131-3983-03

SHIELD-FRONT

$91.99

$

Usually ships in 3-6 days

0

61

Toro 131-4198-03

BRACKET-MOUNTING, FRONT

$23.99

$

Usually ships in 3-6 days

0

62

Toro 131-4199-03

BRACKET-MOUNTING, REAR

$33.99

$

Usually ships in 3-6 days

0

63

Toro 131-4002-03

BRACKET-SUPPORT, SPINDLE COVER

$32.99

$

Usually ships in 3-6 days

0

64

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

65

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

66

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 20+

0

67

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, only 2 left!

0

68

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

69

138-6045

SHAFT-SPINDLE

$

$

Not available

70

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

71

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 9

0
