72202 (419 XT) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) ELECTRIC LIFT ASSEMBLY Parts Diagram

Garden Tractor

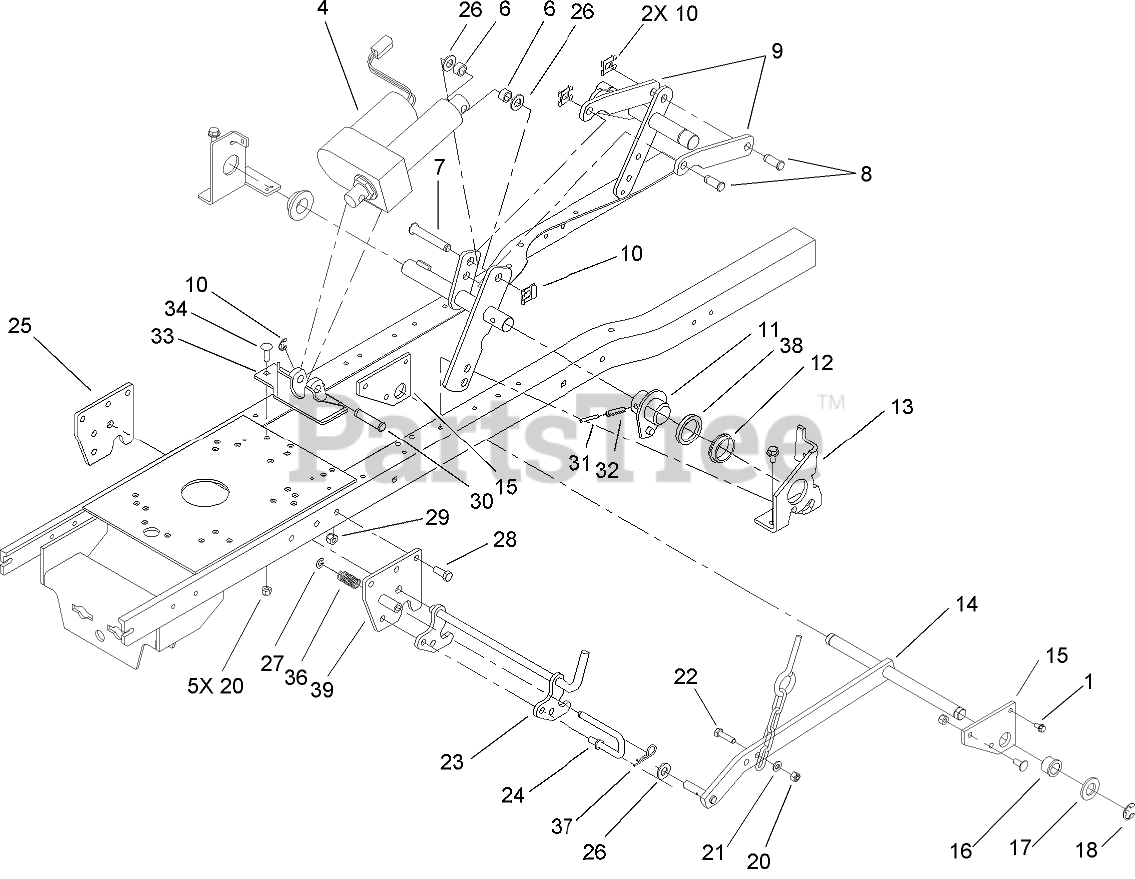

ELECTRIC LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

4

Toro 106-8266

ACTUATOR

$3078.99

$

Usually ships in 3-6 days

0

6

Toro 104-0843

SPACER

$

$

Not available

7

Toro 104-0842

PIN-CLEVIS

$

$

Not available

8

Toro 98-1639

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

9

Toro 106-5691-03

STRAP-LINK, LIFT

$

$

Not available

10

Toro 95-4064

CLIP-PIN
(Superseded to 138-8491)

$7.49

$

In Stock, only 2 left!

0

11

Toro 106-5662

END CAP ASM

$

$

Not available

12

Toro 92-6869

BUSHING

$17.99

$

Usually ships in 3-6 days

0

13

Toro 94-4928

BRACKET-ARM, LIFT

$

$

Not available

14

Toro 106-4065-03

LIFT BAR ASM

$

$

Not available

15

Toro 106-4066

Plate-Lift, Rear

$

$

Not available

16

Toro 98-1636

BUSHING-FLANGE

$7.99

$

Usually ships in 3-6 days

0

17

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

18

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

23

Toro 106-4091

MIDHITCH LATCH ASM

$

$

Not available

24

Toro 107-3663

ROD-CATCH

$

$

Not available

25

Toro 106-4060

Plate-Hitch

$

$

Not available

26

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

28

Toro 323-46

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 104-0823

PIN-CLEVIS

$

$

Not available

31

Toro 32121-103

PIN-SPRING

$

$

Not available

32

Toro 32121-25

PIN-ROLL

$4.49

$

Usually ships in 3-6 days

0

33

Toro 104-0815-03

ACTUATOR BRACKET ASM

$

$

Not available

34

Toro 3230-31

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

36

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

37

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

38

Toro 106-5664

SPACER

$

$

Not available

39

Toro 107-3665

MIDHITCH ASM

$

$

Not available
