72202 (419 XT) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) DASH ASSEMBLY Parts Diagram

Garden Tractor

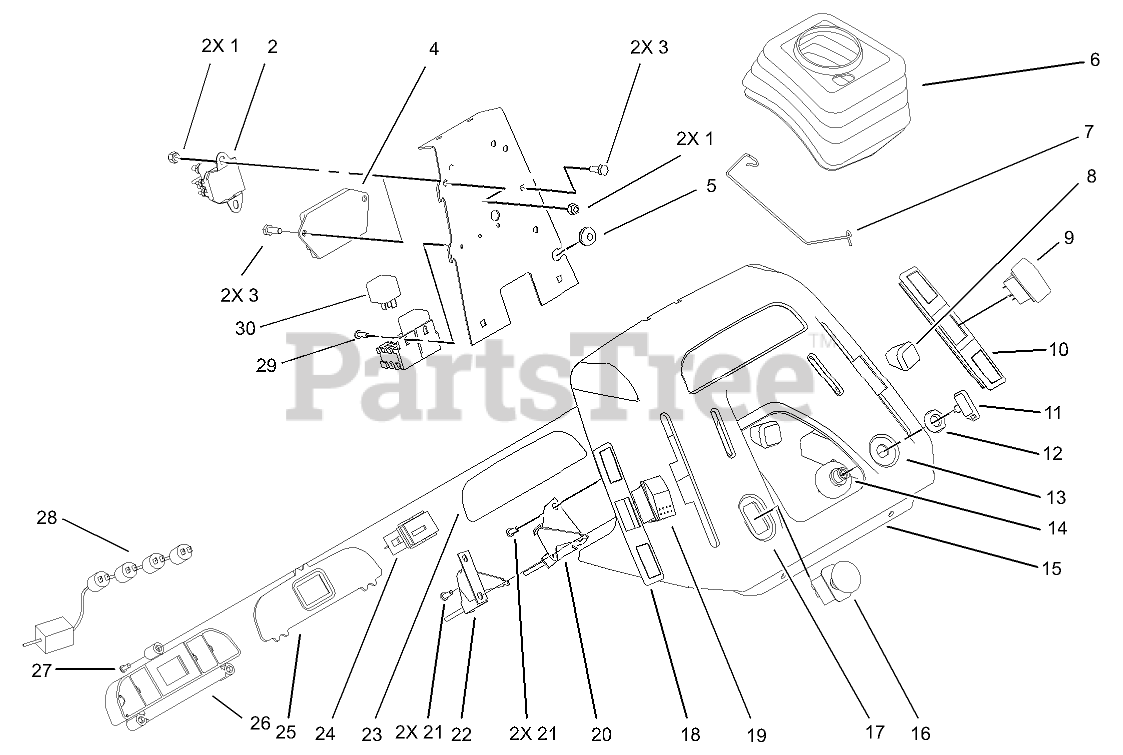

DASH ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 106-8245

SOLENOID-STARTER

$109.99

$

In Stock, only 2 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 106-8225

MODULE-NMIR, LOW BATTERY

$168.99

$

In Stock, only 1 left!

0

5

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

6

Toro 92-6680

BOOT-STEERING

$

$

Not available

7

Toro 94-2966

CLIP-BOOT

$

$

Not available

8

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

9

Toro 93-0527

SWITCH-CRUISE

$139.99

$

Usually ships in 3-6 days

0

10

Toro 93-0516

COVER-SLOT, RH

$

$

Not available

11

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 20+

0

12

Toro 700919

NUT

$5.99

$

In Stock, only 2 left!

0

13

Toro 92-6721

DECAL-THROTTLE, IGNITION

$12.99

$

Usually ships in 3-6 days

0

14

Toro 92-6785

SWITCH-IGNITION

$86.99

$

In Stock, only 2 left!

0

15

Toro 94-1894

DASH

$357.99

$

Usually ships in 3-6 days

0

16

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 3 left!

0

17

Toro 92-6720

DECAL-PTO / CHOKE
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 94-1710

COVER-LIFT

$

$

Not available

19

Toro 94-1742

SWITCH
(Superseded to 109-4813)

$59.99

$

In Stock, only 1 left!

0

20

Toro 92-6784

CONTROL-THROTTLE (TWIN)

$125.99

$

Usually ships in 3-6 days

0

21

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

22

Toro 106-9872

CHOKE CONTROL ASM

$

$

Not available

23

Toro 106-9871

DECAL-DASH, LENS

$

$

Not available

24

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

25

Toro 92-6705

LENS-DASH

$

$

Not available

26

Toro 94-1714

HOUSING-LIGHT

$

$

Not available

27

Toro 94-6961

SCREW

$1.49

$

In Stock, Qty 20+

0

28

Toro 106-8249

HARNESS-LIGHT, SIX

$

$

Not available

29

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

30

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0
