72202 (419 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) HYDRO DRIVE ASSEMBLY Parts Diagram

Garden Tractor

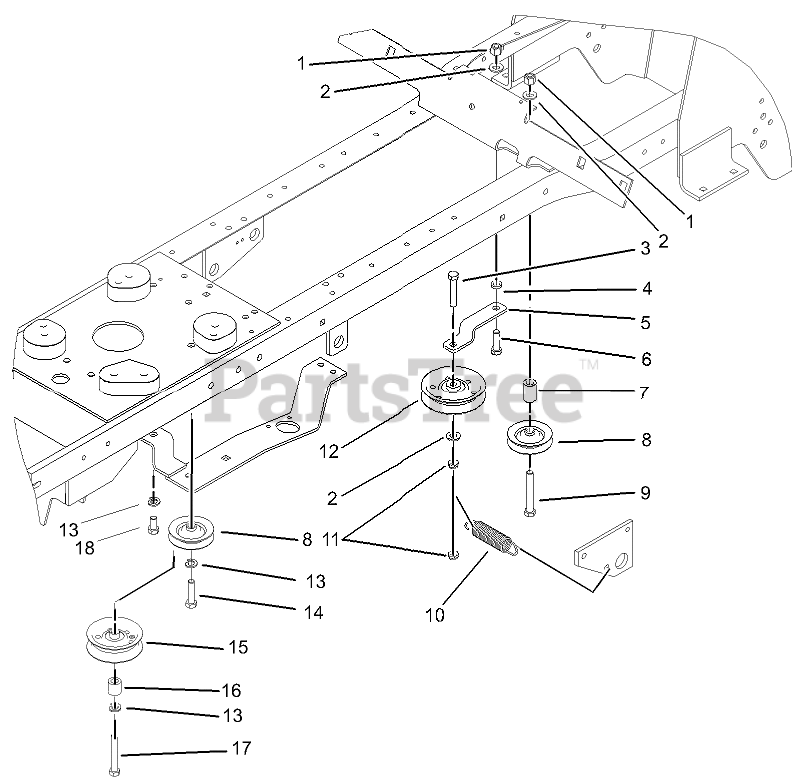

HYDRO DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 106-5597

SPACER-IDLER

$34.99

$

Usually ships in 3-6 days

0

5

Toro 106-5566-03

BRACKET-IDLER

$

$

Not available

6

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 106-5565

Spacer-Idler

$

$

Not available

8

Toro 93-0320

PULLEY-IDLER

$21.99

$

In Stock, only 4 left!

0

9

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

10

Toro 106-5598

SPRING-EXTENSION

$19.99

$

Usually ships in 3-6 days

0

11

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

12

Toro 92-7101

PULLEY-IDLER, FLAT

$34.99

$

Usually ships in 3-6 days

0

13

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 19

0

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

16

Toro 106-5574

Spacer-Mounting, Steering

$12.99

$

Usually ships in 3-6 days

0

17

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

18

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0
