72202 (419 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) HYDRO CONTROL ASSEMBLY Parts Diagram

Garden Tractor

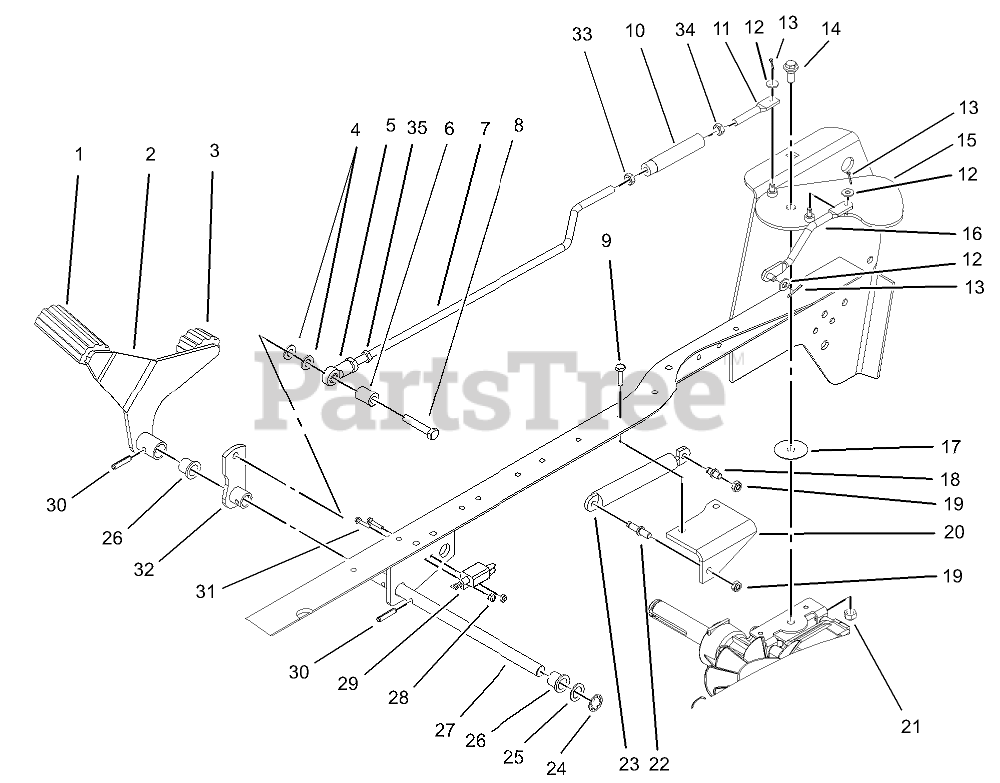

HYDRO CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 92-6902

PAD-PEDAL

$

$

Not available

2

Toro 106-5649-03

HYDRO PEDAL ASM,

$

$

Not available

3

Toro 92-6903

PAD-PEDAL

$7.99

$

Usually ships in 3-6 days

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

5

Toro 92-7008

END-ROD, FEMALE

$52.99

$

Usually ships in 3-6 days

0

6

Toro 106-5620

TUBE-INTERLOCK

$17.99

$

Usually ships in 3-6 days

0

7

Toro 106-5613

ROD-HYDRO

$

$

Not available

8

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

10

Toro 95-1504

TURNBUCKLE

$71.99

$

Usually ships in 3-6 days

0

11

Toro 106-5690

LINK-HYDRO

$

$

Not available

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

15

Toro 106-5579

CRUISE PLATE ASM

$

$

Not available

16

Toro 106-5577

BELL CRANK ROD ASM

$

$

Not available

17

Toro 94-7575

SPACER-CRUISE

$

$

Not available

18

Toro 100-6056

ARM-CONTROL, PIN DAMPER

$11.99

$

Usually ships in 3-6 days

0

19

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

20

Toro 106-8247-03

BRACKET-DAMPER

$

$

Not available

21

$6.49

$

In Stock, only 2 left!

0

22

Toro 100-6057

PIN-BRACKET, DAMPER

$12.99

$

Usually ships in 3-6 days

0

23

Toro 100-8732

DAMPER-GAS

$340.99

$

Usually ships in 3-6 days

0

24

Toro 32151-40

RING-RETAINING

$7.49

$

In Stock, Qty 6

0

25

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

26

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

27

Toro 106-5648

SHAFT-PIVOT, HYDRO

$

$

Not available

28

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

29

Toro 106-4145

SWITCH-ADJUSTABLE

$

$

Not available

30

Toro 32121-69

PIN-SPRING

$1.99

$

In Stock, Qty 5

0

31

Toro 32105-29

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

32

Toro 106-5560-03

HYDRO LINK ASM

$

$

Not available

33

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

34

Toro 106-8248

NUT-JAM

$14.99

$

Usually ships in 3-6 days

0

35

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0
