72202 (419 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) ENGINE AND MUFFLER ASSEMBLY Parts Diagram

Garden Tractor

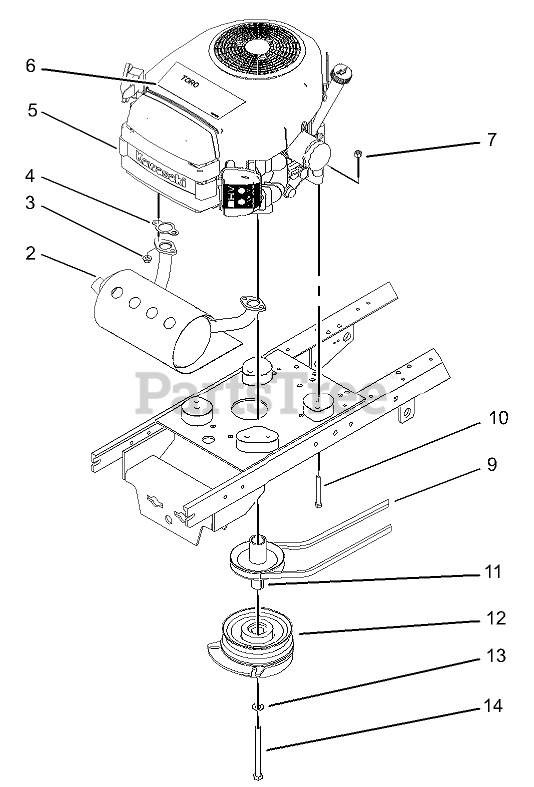

ENGINE AND MUFFLER ASSEMBLY Parts Diagram

  • Title

2

Toro 106-5666

MUFFLER

$

$

Not available

3

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

4

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

5

Engine-Kawasaki, 19 HP Model No. Fh580v-As06

Note: Not serviced separately

$

$

Not available

6

Toro 106-9875

DECAL-KAWASAKI, 19HP

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 106-5813

V-BELT, TRACTION

$121.99

$

Usually ships in 3-6 days

0

10

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

11

Toro 106-5665-03

PULLEY-ENGINE
(Superseded to 106-5665)

$

$

Not available

12

Toro 106-4099

CLUTCH

$609.99

$

Usually ships in 3-6 days

0

13

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3212-19

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0
