72202 (419 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH580V-AS06 Parts Diagram

Garden Tractor

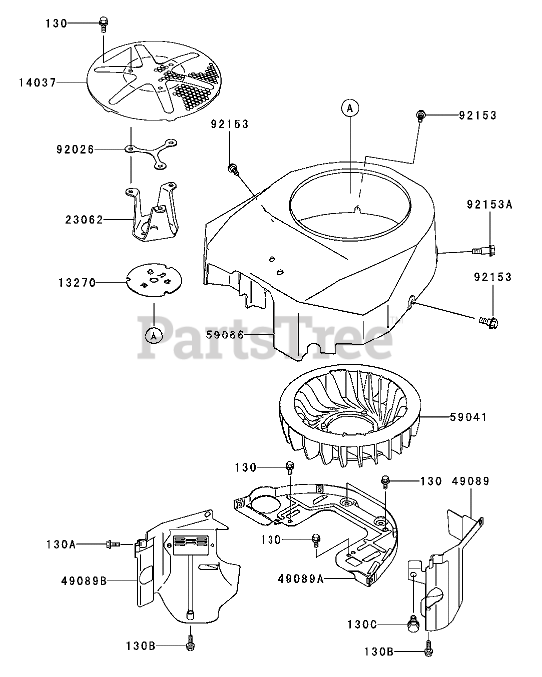

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH580V-AS06 Parts Diagram

  • Title
13270

Kawasaki 13270-7007

Plate

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

14037

Kawasaki 14037-7010

Screen
(Superseded to 14037-7020-9H)

Note: Obtain parts from www.kawpowerepc.com

$33.99

$

In Stock, Qty 13

0

23062

Kawasaki 23062-7010

Bracket
(Superseded to 23062-7008)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 5

0

49089

Kawasaki 49089-7002

Shroud-Engine

Note: Obtain parts from www.kawpowerepc.com

$28.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7032

Shroud-Engine
(Superseded to 49089-7003)

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

In Stock, only 1 left!

0

49089B

Kawasaki 49089-7034

Shroud-Engine
(Superseded to 49089-7001)

Note: Obtain parts from www.kawpowerepc.com

$26.99

$

In Stock, only 1 left!

0

59041

Toro 59041-7001

Fan

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

59066

Kawasaki 59066-7011

Housing-Fan
(Superseded to 59066-7001)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92026

Kawasaki 92026-7007

Spacer

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

Bolt

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7008

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0
