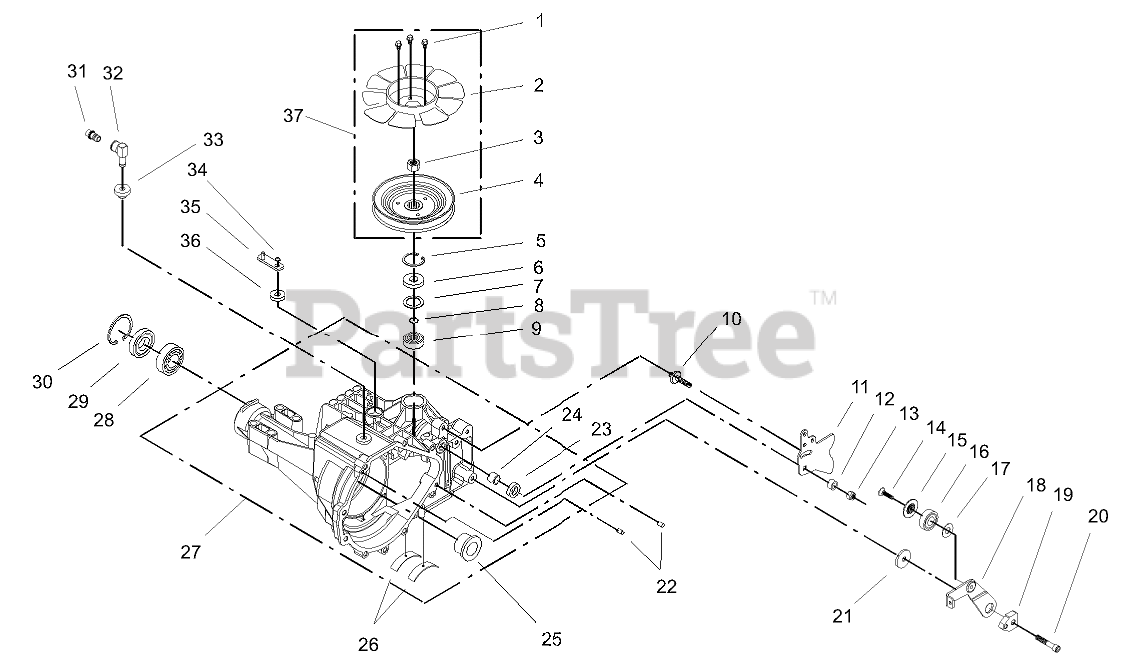

72201 (417 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) HOUSING AND FAN ASSEMBLY TRANSAXLE ASSEMBLY NO. 104-4310 Parts Diagram

Garden Tractor

HOUSING AND FAN ASSEMBLY TRANSAXLE ASSEMBLY NO. 104-4310 Parts Diagram

  • Title
1

$11.99

$

Usually ships in 3-6 days

0

$96.99

$

Usually ships in 3-6 days

0

3

Toro 104-2168

NUT-HEX
(Superseded to 116-9714)

$5.49

$

In Stock, only 4 left!

0

4

Toro 104-2161

PULLEY

$

$

Not available

5

Toro 94-1903

RING-RETAINING

$6.49

$

Usually ships in 3-6 days

0

6

Toro 92-6543

SEAL-LIP

$20.99

$

Usually ships in 3-6 days

0

7

Toro 104-2104

SPACER

$10.99

$

Usually ships in 3-6 days

0

8

Toro 94-1902

RING-WIRE, RETAINING

$6.99

$

Usually ships in 3-6 days

0

9

Toro 94-1904

BEARING-SHAFT, BALL

$137.99

$

Usually ships in 3-6 days

0

10

$38.99

$

Usually ships in 3-6 days

0

11

Toro 100-6093

ARM-CONTROL

$

$

Not available

12

Toro 104-2163

SPACER-TRUNNION

$

$

Not available

13

Toro 104-2159

NUT-HEX, LOCK

$

$

Not available

14

Toro 104-2158

SCREW-COUNTERSUNK

$

$

Not available

15

Toro 104-2157

SPACER-LOCATING

$

$

Not available

16

Toro 104-2156

BEARING

$118.99

$

Usually ships in 3-6 days

0

17

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

18

Toro 104-2114

ARM-RETURN

$

$

Not available

19

Toro 104-2119

PUCK-ADJUSTING

$

$

Not available

20

$

$

Not available

21

Toro 104-2154

WASHER

$

$

Not available

22

$8.99

$

Usually ships in 3-6 days

0

23

Toro 92-6544

SEAL-LIP

$

$

Not available

24

Toro 104-2113

BUSHING-TRUNNION

$

$

Not available

25

Toro 104-2139

BEARING-FLANGE

$

$

Not available

26

Toro 94-1905

BEARING-CRADLE

$

$

Not available

27

Toro 104-2101

MAIN HOUSING ASM

$2548.99

$

Usually ships in 3-6 days

0

28

Toro 104-2143

BEARING-BALL

$41.99

$

Usually ships in 3-6 days

0

29

$49.99

$

In Stock, only 1 left!

0

30

Toro 104-2169

RING-RETAINING

$19.99

$

Usually ships in 3-6 days

0

31

Toro 104-2167

VENT CAP ASM
(Superseded to 93-3817)

$21.99

$

Usually ships in 3-6 days

0

32

Toro 104-2166

FITTING

$

$

Not available

33

Toro 104-2165

BUSHING-RUBBER

$

$

Not available

34

Toro 936109

RING-RETAINING

$11.99

$

Usually ships in 3-6 days

0

35

Toro 104-2117

ARM-BYPASS

$96.99

$

Usually ships in 3-6 days

0

36

Toro 92-6545

SEAL-LIP

$17.99

$

Usually ships in 3-6 days

0

37

Toro 104-2190

FAN/PULLEY KIT

$

$

Not available
