72201 (417 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) FRONT AXLE AND FRONT HITCH ASSEMBLY Parts Diagram

Garden Tractor

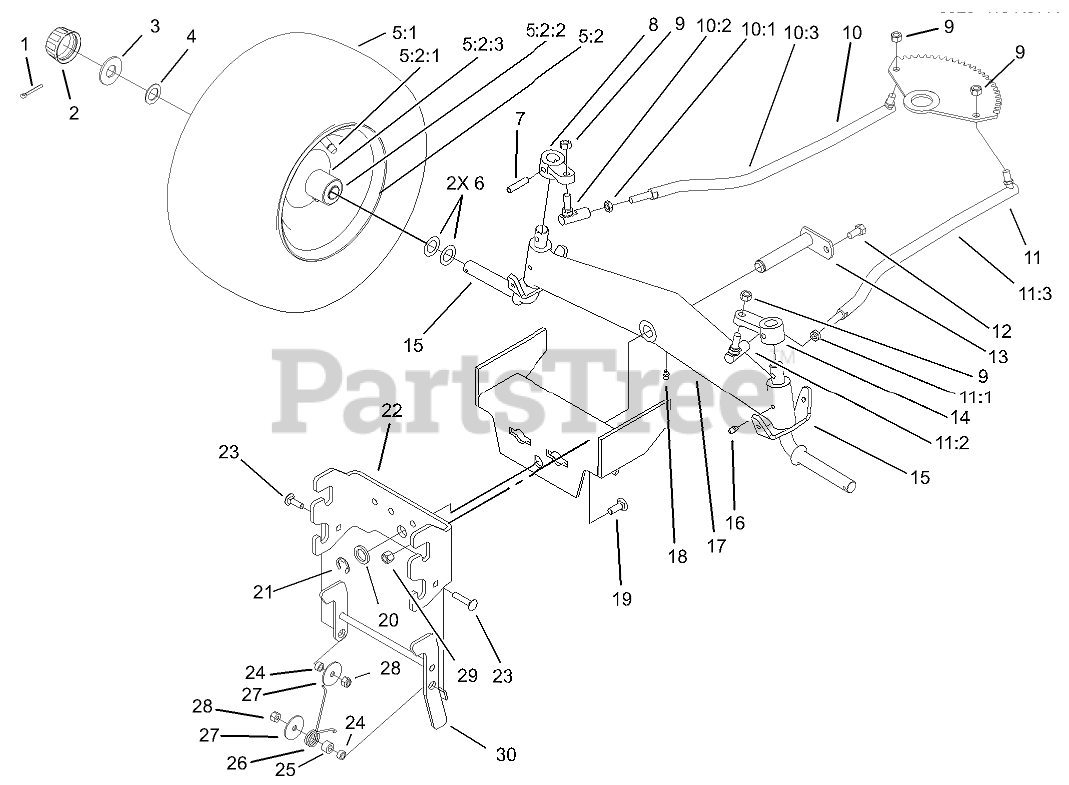

FRONT AXLE AND FRONT HITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

2

Toro 61-9780

CAP-HUB

$7.49

$

In Stock, Qty 8

0

3

Toro 28-2480

WASHER-PLAIN

$4.49

$

In Stock, Qty 6

0

4

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

5:1

Toro 99-2336

TIRE

$157.99

$

Usually ships in 3-6 days

0

5:2

Toro 93-9801

Wheel ASM

$257.99

$

Usually ships in 3-6 days

0

5:2:1

Toro 5108

VALVE

$6.99

$

In Stock, Qty 17

0

5:2:2

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 4 left!

0

5:2:3

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

Note: Not illustrated

$

$

Not available

5

FRONT WHEEL & TIRE ASM

Note: Not serviced separately

$

$

Not available

6

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

7

Toro 933270

PIN

$5.99

$

In Stock, Qty 6

0

8

Toro 78-1950-03

ARM-SPINDLE, LH

$107.99

$

Usually ships in 3-6 days

0

9

Toro 9150026

Nut

$1.49

$

In Stock, Qty 20+

0

10

Toro 92-6883

LINKAGE-STEERING, RH

$179.99

$

Usually ships in 3-6 days

0

10:1

Toro 9150854

NUT-JAM
(Superseded to 3220-3)

$0.99

$

In Stock, Qty 18

0

10:2

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

10:3

Toro 78-5801

Ball Link ASM
(Superseded to 92-6883)

$179.99

$

Usually ships in 3-6 days

0

11

Toro 92-6884

LINKAGE-STEERING, LH

$179.99

$

In Stock, only 4 left!

0

11:1

Toro 9150854

NUT-JAM
(Superseded to 3220-3)

$0.99

$

In Stock, Qty 18

0

11:2

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

11:3

Toro 78-5811

Ball Link ASM
(Superseded to 92-6884)

$179.99

$

In Stock, only 4 left!

0

12

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

13

Toro 92-7057-03

PIN-AXLE

$63.99

$

Usually ships in 3-6 days

0

14

Toro 78-1940-03

ARM-SPINDLE, RH

$107.99

$

Usually ships in 3-6 days

0

15

Toro 78-2601-03

SPINDLE

$93.99

$

In Stock, only 1 left!

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 78-7960-03

AXLE-FRONT

$387.99

$

Usually ships in 3-6 days

0

18

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 2 left!

0

19

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

20

Toro 9202324

Washer

$1.49

$

In Stock, only 3 left!

0

21

Toro 5618

E-RING

$0.99

$

In Stock, Qty 11

0

22

Toro 106-4044-03

HITCH-FRONT

$

$

Not available

23

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

24

Toro 92-6998

SPACER-YOKE, RIGHT

$6.99

$

Usually ships in 3-6 days

0

25

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

26

Toro 106-4048

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

27

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 106-5637-03

LATCH ASM

$

$

Not available
