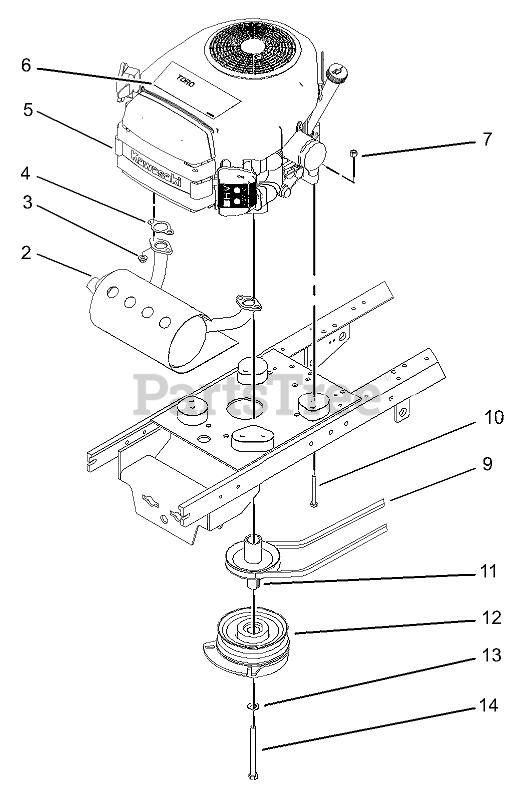

72201 (417 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) ENGINE AND MUFFLER ASSEMBLY Parts Diagram
Garden Tractor
ENGINE AND MUFFLER ASSEMBLY Parts Diagram
Toro 106-5666
MUFFLER
$
$
Not available
$0.99
$
In Stock, Qty 11
$
$
Not available
Toro 106-5678
ENGINE-KAWASAKI 17HP
$
$
Not available
Toro 106-9874
DECAL-KAWASAKI, 17HP
$
$
Not available
Toro 3296-29
NUT-LOCK, NI
$2.49
$
In Stock, Qty 20+
Toro 106-5813
V-BELT, TRACTION
$121.99
$
Usually ships in 3-6 days
Toro 322-13
SCREW-HH
$3.49
$
In Stock, only 3 left!
Toro 106-5665
Pulley-Engine
$
$
Not available
Toro 106-4099
CLUTCH
$609.99
$
Usually ships in 3-6 days
Toro 3256-25
WASHER-FLAT
$0.99
$
In Stock, Qty 20+
Toro 3212-19
SCREW-HH
$8.49
$
Usually ships in 3-6 days
