72201 (417 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) BRAKE ASSEMBLY Parts Diagram

Garden Tractor

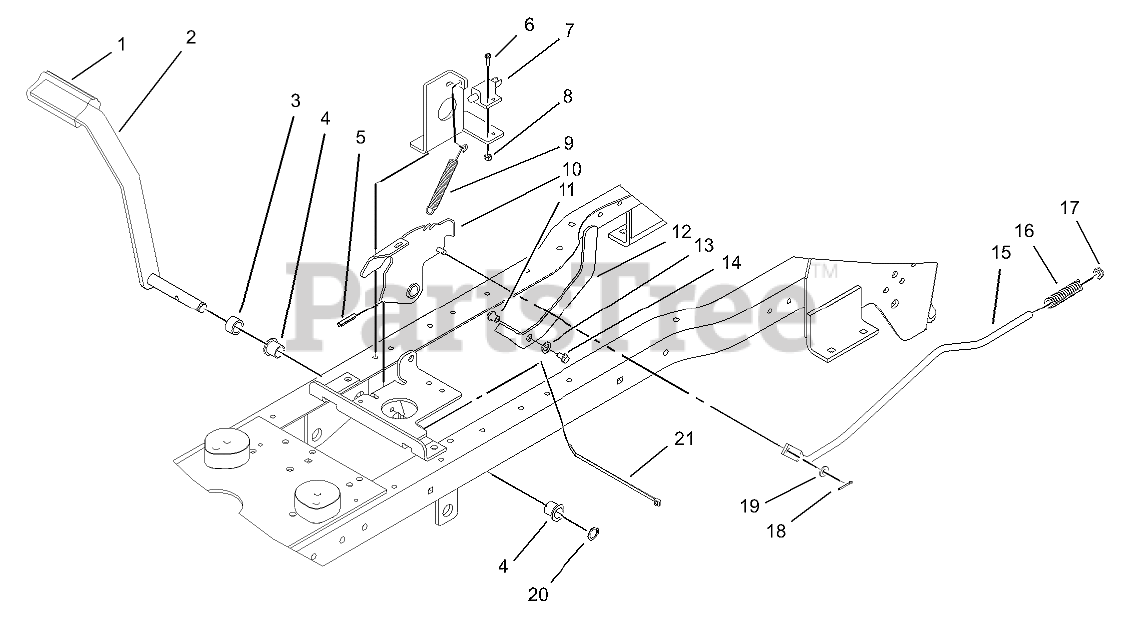

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-2920

PAD-PEDAL

$40.99

$

Usually ships in 3-6 days

0

2

Toro 106-4068-03

BRAKE PEDAL ASM

$

$

Not available

3

Toro 92-6982

SPACER-BRAKE

$

$

Not available

4

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

5

Toro 32121-69

PIN-SPRING

$1.99

$

In Stock, Qty 5

0

6

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 86-4690

SWITCH-INTERLOCK
(Superseded to 1-633111)

$21.99

$

In Stock, Qty 19

0

8

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

9

Toro 93-0540

SPRING-EXTENSION

$

$

Not available

10

Toro 106-4069

Brake ASM

$

$

Not available

11

Toro 47-4990

POST-MOUNTING, LINKAGE

$27.99

$

Usually ships in 3-6 days

0

12

Toro 106-4075

Lever-Brake, Parking

$

$

Not available

13

Toro 106-5592

SPACER-BRAKE, PARKING

$15.99

$

Usually ships in 3-6 days

0

14

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

15

Toro 106-5621

ROD-BRAKE

$

$

Not available

16

Toro 104-0837

SPRING-COMPRESSION

$

$

Not available

17

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

18

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 19

0

21

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
