72201 (417 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) AIR FILTER/MUFFLER ASSEMBLY KAWASAKI FH541V-AS04 Parts Diagram

Garden Tractor

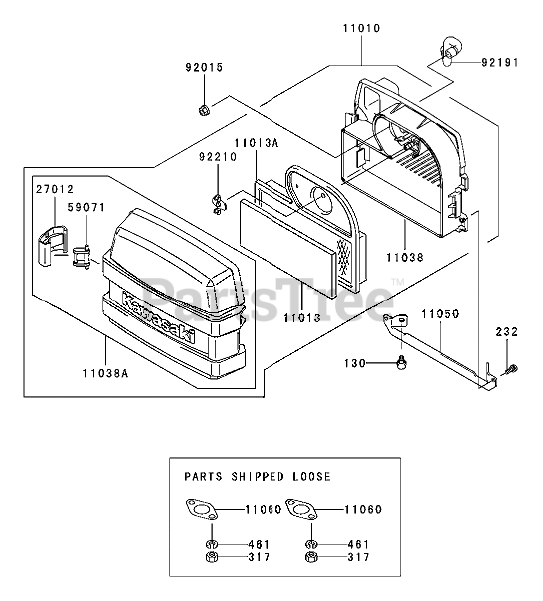

AIR FILTER/MUFFLER ASSEMBLY KAWASAKI FH541V-AS04 Parts Diagram

  • Title

11010

Toro 11010-7012

AIR FILTER ASM

$

$

Currently unavailable

11013

Kawasaki 11013-7001

Element-FILTER, AIR
(Superseded to 11013-7033)

$5.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7002

Element-Filter, AIR

$21.99

$

In Stock, Qty 20+

0

11038

Kawasaki 11038-7006

AIR FILTER CASE ASM
(Superseded to 11038-7003)

$70.99

$

Usually ships in 2-5 days

0

11038A

Toro 11038-7009

AIR FILTER CASE ASM

$

$

Currently unavailable

11050

Kawasaki 11050-7006

Bracket

$9.49

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7021

GASKET-MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

27012

Kawasaki 27012-7001

HOOK-FILTER, AIR
(Superseded to 27012-6003)

$2.99

$

In Stock, Qty 20+

0

59071

Kawasaki 59071-7001

Joint
(Superseded to 27012-6003)

$2.99

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-7001

Tube

$

$

Not available

92210

Kawasaki 92210-7004

NUT (M6)

$3.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

232

Kawasaki 232B0514

SCREW-PAN
(Superseded to 232AA0514)

$0.99

$

In Stock, only 3 left!

0

317

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Toro 461F0800

Washer-Spring (8mm)

$

$

Currently unavailable
