72200 (416 XT) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) MANUAL LIFT LEVER ASSEMBLY Parts Diagram

Garden Tractor

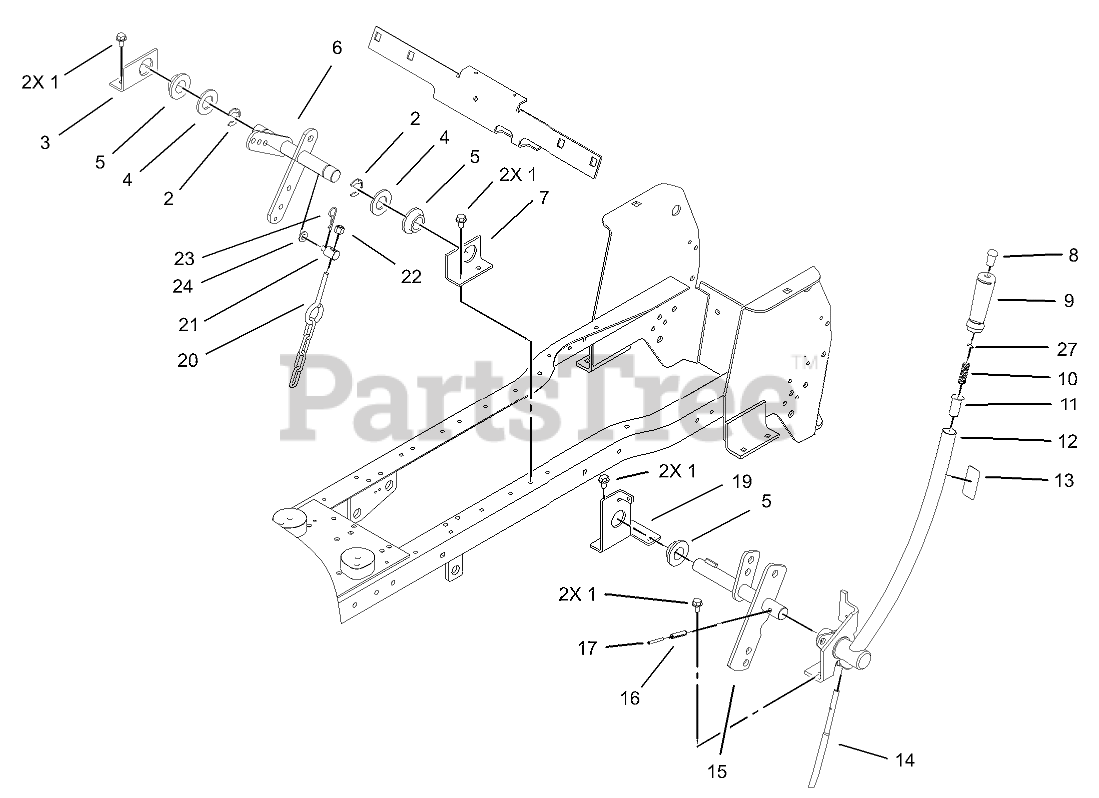

MANUAL LIFT LEVER ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

2

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

3

Toro 106-5650-03

BRACKET-PIVOT LINKAGE, RH

$

$

Not available

4

Toro 3256-62

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 106269

BEARING-FLANGE

$8.99

$

Usually ships in 3-6 days

0

6

Toro 106-5660-03

LIFT LEVER ASM

$

$

Not available

7

Toro 106-5652-03

BRACKET-PIVOT LINKAGE, LH

$

$

Not available

8

Toro 92-6711

TIP-ROD

$

$

Not available

9

Toro 92-6710

GRIP-HANDLE

$11.99

$

Usually ships in 3-6 days

0

10

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

11

Toro 8130

RETAINER-SPRING

$19.99

$

Usually ships in 3-6 days

0

12

Toro 106-5663-03

LIFT LEVER ASM

$

$

Not available

13

Toro 112168

DECAL-LIFT

$9.49

$

Usually ships in 3-6 days

0

14

Toro 92-6977-03

ROD-LEVER, LIFT

$131.99

$

Usually ships in 3-6 days

0

15

Toro 106-5656-03

LIFT ARM ASM

$

$

Not available

16

Toro 32121-25

PIN-ROLL

$4.49

$

Usually ships in 3-6 days

0

17

Toro 32121-103

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

19

Toro 106-4073-03

BRACKET-PIVOT, LIFT

$

$

Not available

20

Toro 106522

CHAIN-LIFT

$31.99

$

In Stock, only 1 left!

0

21

Toro 79-2790

TRUNNION

$37.99

$

Usually ships in 3-6 days

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 3 left!

0
