72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) SEAT ASSEMBLY Parts Diagram

Garden Tractor

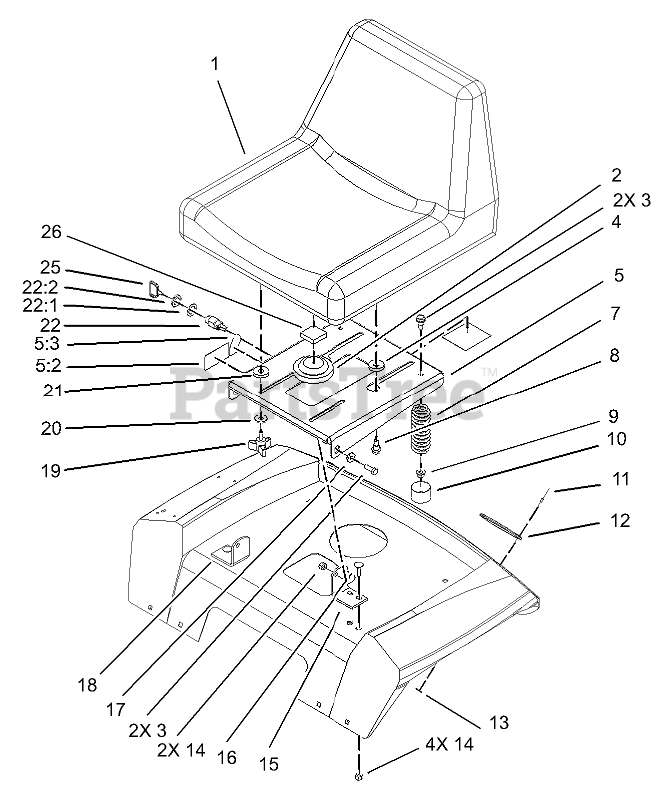

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2463

SEAT
(Superseded to 119-8887)

$599.99

$

Usually ships in 3-6 days

0

2

Toro 100-3524

SWITCH-SEAT

$62.99

$

In Stock, Qty 11

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

5

Toro 104-5027

SUPPORT SEAT ASM

$

$

Not available

5:2

Toro 99-2985

DECAL-DANGER

$

$

Not available

5:3

Toro 99-5339

DECAL

$

$

Not available

7

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

8

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

9

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

10

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

11

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

12

Toro 106557

REFLECTOR-STICK ON

$

$

Not available

13

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 79-0950-03

BRACKET-PIVOT, RH

$

$

Not available

16

Toro 3230-31

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

17

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

18

Toro 79-0970-03

BRACKET-PIVOT, LH

$

$

Not available

19

Toro 700806

KNOB

$20.99

$

In Stock, Qty 5

0

20

Toro 94-2869

WASHER

$1.99

$

In Stock, Qty 5

0

21

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

22

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

22:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

22:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

25

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

26

Toro 104-2488

FOAM-SWITCH, SEAT

$7.99

$

Usually ships in 3-6 days

0
