72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Garden Tractor

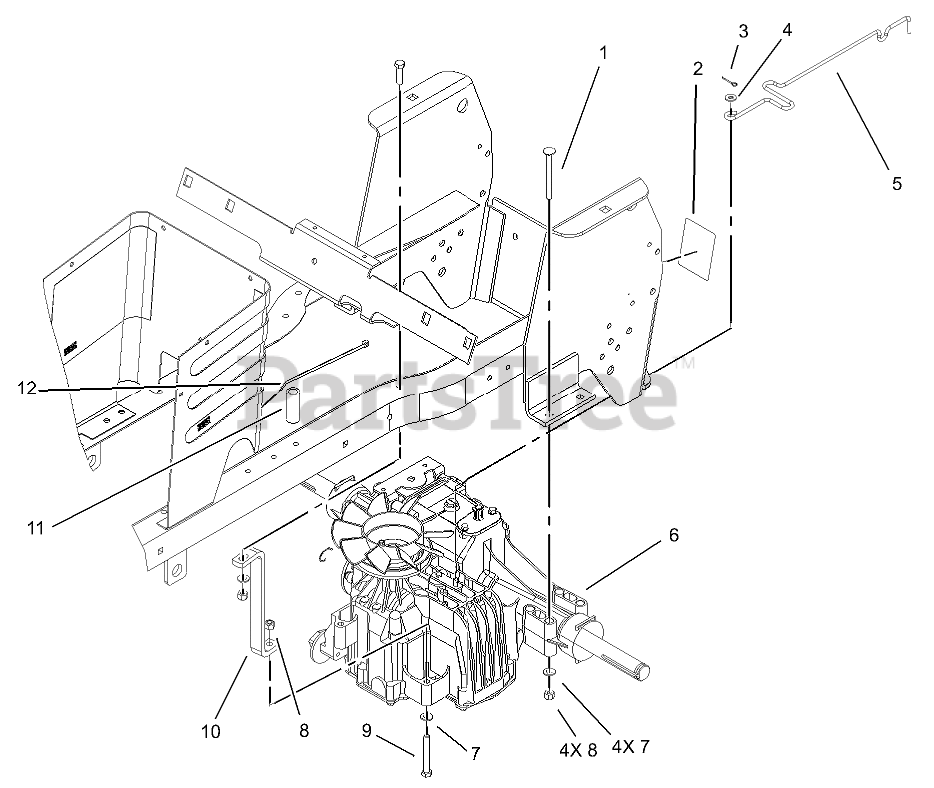

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3230-11

SCREW-CARR

$6.99

$

Usually ships in 3-6 days

0

2

Toro 92-6726

DECAL-VALVE, HYDRO

$

$

Not available

3

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 104-5037

ROD-BYPASS

$

$

Not available

6

Toro 104-4310

TRANSAXLE-HYDROSTATIC

$5588.99

$

Usually ships in 3-6 days

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

10

Toro 100-1343-03

Strap-Torque
(Superseded to 100-7536-03)

$

$

Not available

11

Toro 106-5588

HOSE-BREATHER

$

$

Not available

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
