72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) HOOD AND GRILL ASSEMBLY Parts Diagram

Garden Tractor

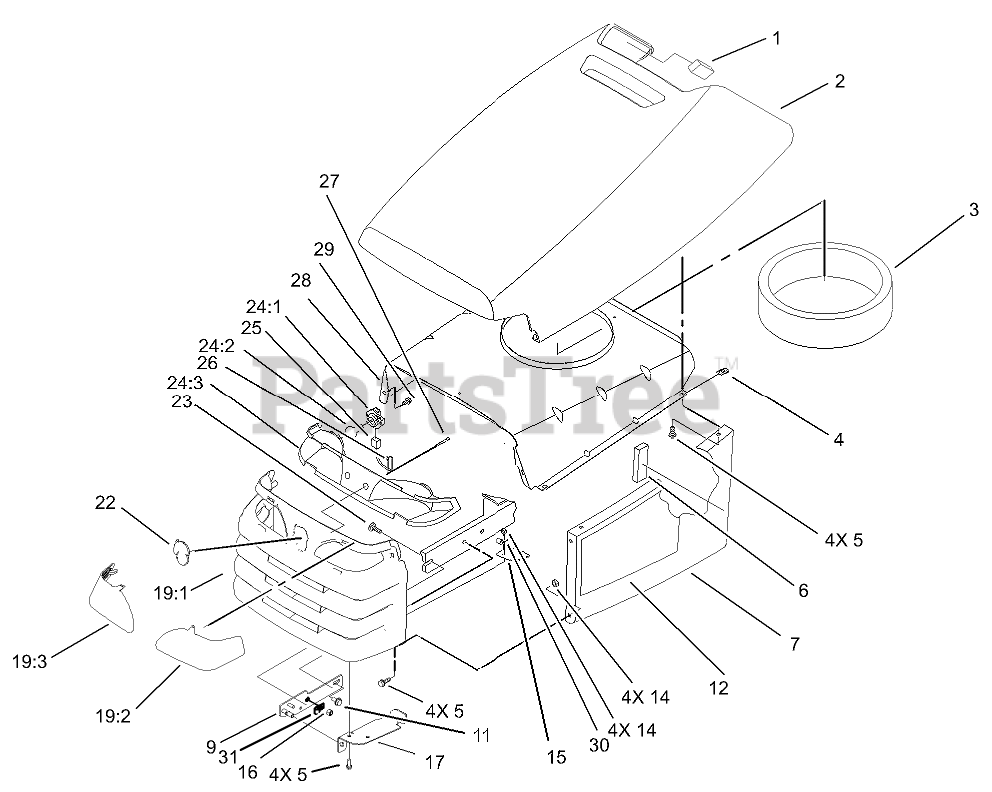

HOOD AND GRILL ASSEMBLY Parts Diagram

  • Title
1

Toro 94-1980

FOAM-HOOD

$3.99

$

Usually ships in 3-6 days

0

2

Toro 92-6658

HOOD-TOP
(Superseded to 93-0490)

$

$

Not available

3

Toro 92-7076

SEAL-AIR INLET, TWIN

$73.99

$

Usually ships in 3-6 days

0

4

$4.99

$

Usually ships in 3-6 days

0

5

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6

Toro 92-7148

FOAM-SIDEPANEL

$4.49

$

Usually ships in 3-6 days

0

7

Toro 92-6652

SIDE-HOOD, LH
(Superseded to 93-0491)

$193.99

$

Usually ships in 3-6 days

0

8

Toro 92-6650

SIDE-HOOD, RH
(Superseded to 93-0492)

Note: Not illustrated

$

$

Not available

9

Toro 106-5673-03

BRACKET-HINGE, LH

$

$

Not available

10

Toro 106-5672-03

BRACKET-HINGE, RH

Note: Not illustrated

$

$

Not available

11

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

12

Toro 106-5842

Decal-Hood LH

$

$

Not available

13

Toro 106-5843

Decal-Hood RH

Note: Not illustrated

$

$

Not available

14

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

15

Toro 106-5676-03

HINGE-HOOD
(Superseded to 106-5676)

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 106-5680-03

BRACKET-HOOD, HINGE, LH

$62.99

$

Usually ships in 3-6 days

0

18

Toro 106-5682-03

BRACKET-HOOD, HINGE, RH

Note: Not illustrated

$

$

Not available

19:1

Toro 106-5595

GRILLE

$

$

Not available

19:2

Toro 106-5693

LENS-LH

$80.99

$

In Stock, only 1 left!

0

19:3

Toro 106-5692

LENS-RH

$

$

Not available

19

Grille ASM

Note: Not illustrated

$

$

Not available

22

Toro 95-4248

EMBLEM

$36.99

$

Usually ships in 3-6 days

0

23

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

24:1

Toro 116262

SOCKET-HEADLIGHT

$55.99

$

Usually ships in 3-6 days

0

24:2

Toro 7228

BULB

$24.99

$

Usually ships in 3-6 days

0

24:3

Toro 106-9869

REFLECTOR

$

$

Not available

24

Toro 106-9870

REFLECTOR AND LAMP ASM

Note: Not illustrated

$

$

Not available

25

Toro 106-9890

HARNESS-WIRE, HEADLIGHTS

$

$

Not available

26

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

27

Toro 94-6961

SCREW

$1.49

$

In Stock, Qty 20+

0

28

Toro 92-6914-03

BAFFLE-HOOD, UPPER

$

$

Not available

29

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

30

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

31

Toro 98-2390

CLAMP-R

$

$

Not available
