72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) GROUP 8-FUEL SYSTEM ASSEMBLY Parts Diagram

Garden Tractor

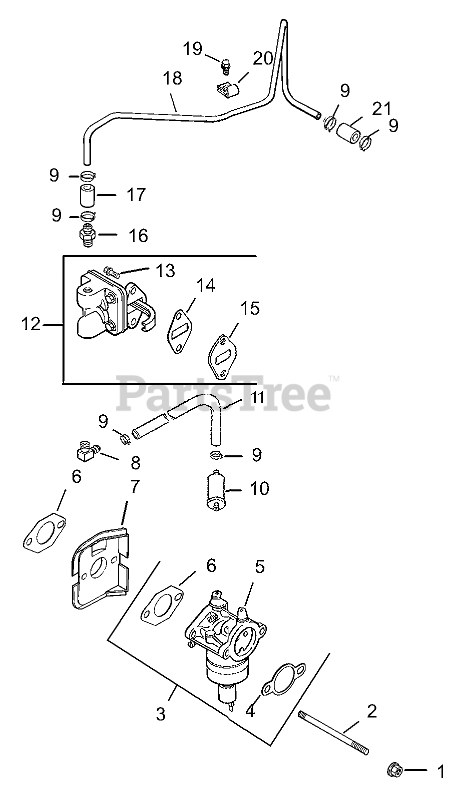

GROUP 8-FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain Part from Local Tecumseh Dealer.

$4.49

$

In Stock, Qty 11

0

2

Kohler M-629116-S

Stud (M6x1.0x116)

Note: Obtain Part from Local Tecumseh Dealer.

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 131-S

Kit, carburetor w/gaskets (Includes 4, 5, 6 qty. 1], Terminal 25 452 20-S, & Tie 12 454 03-S)
(Superseded to 12 853 178-S)

Note: Obtain Part from Local Tecumseh Dealer.

$263.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain Part from Local Tecumseh Dealer.

$2.49

$

In Stock, Qty 8

0

5

Kohler 12 053 131

Carburetor ASM

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

6

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain Part from Local Tecumseh Dealer.

$2.49

$

In Stock, Qty 16

0

7

Kohler 12 265 06-S

Deflector-Heat

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

8

Kohler 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain Part from Local Tecumseh Dealer.

$14.99

$

In Stock, only 1 left!

0

9

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain Part from Local Tecumseh Dealer.

$4.99

$

In Stock, only 3 left!

0

10

Kohler 25 050 07-S

Filter-Fuel

Note: Obtain Part from Local Tecumseh Dealer.

$10.99

$

In Stock, Qty 9

0

11

Kohler 25 353 02-S

Line-Fuel (3in)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

12

Kohler 12 559 01-S

Kit, fuel pump (Includes 13-15)
(Superseded to 12 559 02-S)

Note: Obtain Part from Local Tecumseh Dealer.

$48.99

$

In Stock, only 2 left!

0

13

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain Part from Local Tecumseh Dealer.

$2.49

$

In Stock, only 1 left!

0

14

Kohler 25 041 09-S

Gasket-Pump, Fuel
(Superseded to 25 041 10-S)

Note: Obtain Part from Local Tecumseh Dealer.

$3.49

$

In Stock, only 1 left!

0

15

Kohler 12 112 05-S

Spacer-Pump, Fuel

Note: Obtain Part from Local Tecumseh Dealer.

$7.49

$

In Stock, only 2 left!

0

16

Kohler 25 326 03-S

Connector-Hose, Straight

Note: Obtain Part from Local Tecumseh Dealer.

$3.99

$

In Stock, only 1 left!

0

17

Kohler 12 353 01-S

Line-Fuel (1-1/4in)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

18

Kohler 12 123 19-S

Line-Fuel. Metal

Note: Obtain Part from Local Tecumseh Dealer.

$16.99

$

In Stock, only 2 left!

0

19

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain Part from Local Tecumseh Dealer.

$4.49

$

In Stock, only 3 left!

0

20

Kohler 12 154 01-S

CLAMP-INSULATED

Note: Obtain Part from Local Tecumseh Dealer.

$2.49

$

In Stock, only 1 left!

0

21

Kohler 41 353 18-S

Line-Fuel (2-1/2in)

Note: Obtain Part from Local Tecumseh Dealer.

$3.49

$

Usually ships in 2-5 days

0

Kohler 12 757 02-S

Float Repair Kit

Note: Obtain Part from Local Tecumseh Dealer.

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$34.99

$

In Stock, Qty 8

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Obtain Part from Local Tecumseh Dealer.

$34.99

$

In Stock, Qty 8

0

Kohler 12 757 33-S

Solenoid Repair Kit

Note: Not illustrated

$134.99

$

In Stock, only 1 left!

0

Kohler 12 757 33-S

Solenoid Repair Kit

Note: Obtain Part from Local Tecumseh Dealer.

$134.99

$

In Stock, only 1 left!

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Obtain Part from Local Tecumseh Dealer.

$15.99

$

In Stock, Qty 6

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Not illustrated

$15.99

$

In Stock, Qty 6

0

Kohler 12 518 24-S

Lead-Red (20in-18 gauge-insulated socket and uninsulated push on tab terminals)

Note: Not illustrated

$4.49

$

In Stock, only 1 left!

0

Kohler 12 518 24-S

Lead-Red (20in-18 gauge-insulated socket and uninsulated push on tab terminals)

Note: Obtain Part from Local Tecumseh Dealer.

$4.49

$

In Stock, only 1 left!

0

Kohler 12 454 03-S

Tie-Wire

Note: Obtain Part from Local Tecumseh Dealer.

$3.49

$

Usually ships in 2-5 days

0

Kohler M-561010-S

Screw-HWHTF (M5x0.8x10)

Note: Obtain Part from Local Tecumseh Dealer.

$2.49

$

Usually ships in 2-5 days

0

Kohler M-561010-S

Screw-HWHTF (M5x0.8x10)

Note: Used to attach carburetor ground lead to carburetor baffle.

$2.49

$

Usually ships in 2-5 days

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Used to attach carburetor ground lead to carburetor baffle.

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain Part from Local Tecumseh Dealer.

$2.49

$

In Stock, only 3 left!

0
