72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) GROUP 7-STARTER ASSEMBLY Parts Diagram

Garden Tractor

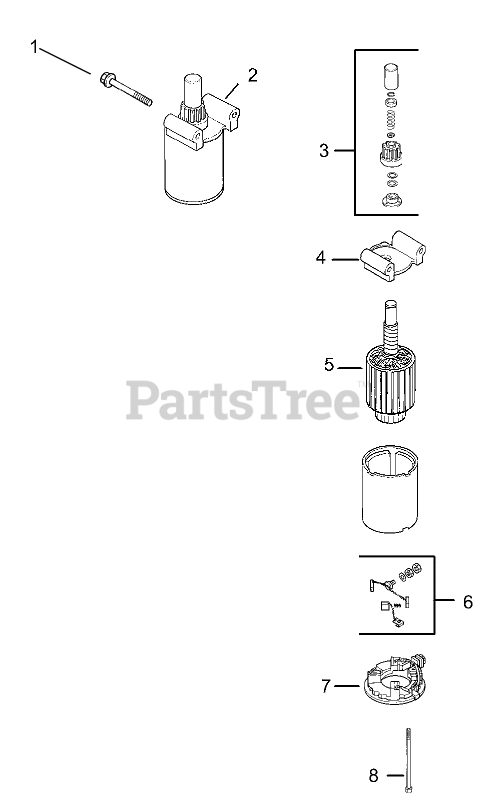

GROUP 7-STARTER ASSEMBLY Parts Diagram

  • Title

1

Kohler M-839070-S

Screw-HF (M8x1.25x70)

Note: Obtain Part from Local Tecumseh Dealer.

$9.49

$

Usually ships in 2-5 days

0

2

Kohler 12 098 22-S

Starter assembly (Includes 3-8)

Note: Obtain Part from Local Tecumseh Dealer.

$275.99

$

In Stock, only 1 left!

0

3

Kohler 12 755 53-S

Drive Kit

Note: Obtain Part from Local Tecumseh Dealer.

$169.99

$

Usually ships in 2-5 days

0

4

Kohler 12 227 19-S

Cap-End, Drive

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

5

Kohler 12 170 05-S

Armature

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

6

Kohler 12 221 01-S

Brush ASM

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

7

Kohler 12 227 13-S

Commutator-Cap, End

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

8

Kohler 12 211 01-S

Bolt

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available
