72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) GROUP 11-EXHAUST ASSEMBLY Parts Diagram

Garden Tractor

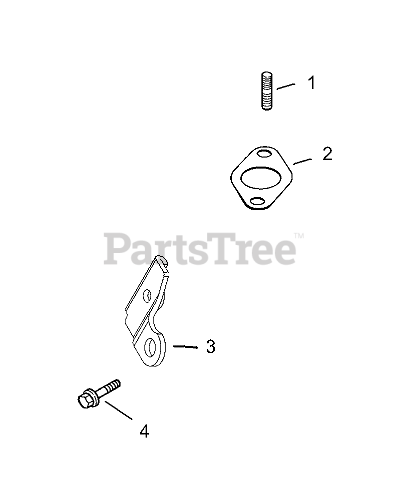

GROUP 11-EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain Part from Local Tecumseh Dealer.

$3.99

$

In Stock, only 3 left!

0

2

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Obtain Part from Local Tecumseh Dealer.

$7.49

$

In Stock, Qty 10

0

3

Kohler 12 126 87-S

Bracket-Strap, Lifting

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

4

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain Part from Local Tecumseh Dealer.

$2.49

$

In Stock, only 1 left!

0

Kohler 12 522 54

Short Block

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

Kohler 12 755 93-S

Gasket Set

Note: Obtain Part from Local Tecumseh Dealer.

$89.99

$

Usually ships in 2-5 days

0
