72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) GROUP 10-AIR INTAKE/FILTRATION ASSEMBLY Parts Diagram

Garden Tractor

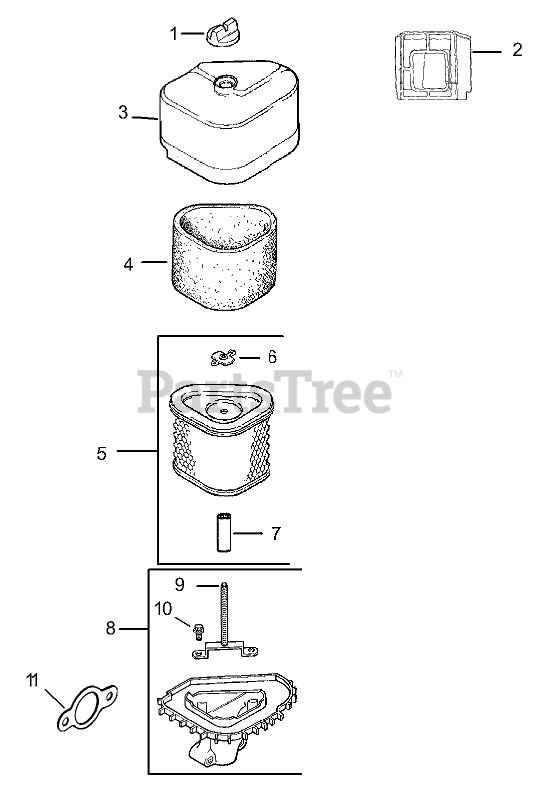

GROUP 10-AIR INTAKE/FILTRATION ASSEMBLY Parts Diagram

  • Title

1

Kohler 25 341 03-S

Knob-Cover
(Superseded to 25 341 04-S)

Note: Obtain Part from Local Tecumseh Dealer.

$7.99

$

Usually ships in 2-5 days

0

2

Kohler 12 281 02-S

Duct-Air

Note: Obtain Part from Local Tecumseh Dealer.

$14.99

$

In Stock, only 1 left!

0

3

Kohler 12 096 44-S

Cover-Cleaner, Air

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

4

Kohler 12 083 12-S

Element-Precleaner

Note: Obtain Part from Local Tecumseh Dealer.

$6.99

$

In Stock, Qty 9

0

5

Kohler 12 083 10-S

Element, air cleaner (Includes 6,7)

Note: Obtain Part from Local Tecumseh Dealer.

$19.99

$

In Stock, Qty 9

0

6

Kohler 12 100 01-S

NUT-WING

Note: Obtain Part from Local Tecumseh Dealer.

$3.99

$

In Stock, only 2 left!

0

7

Kohler 12 032 11-S

Seal

Note: Obtain Part from Local Tecumseh Dealer.

$2.99

$

In Stock, only 1 left!

0

8

Kohler 12 094 14-S

Base, air cleaner (Includes 9, 10)
(Superseded to 12 094 17-S)

Note: Obtain Part from Local Tecumseh Dealer.

$

$

Not available

9

Kohler 12 072 04-S

Stud

Note: Obtain Part from Local Tecumseh Dealer.

$10.99

$

In Stock, Qty 5

0

10

Kohler 12 086 01-S

Screw

Note: Obtain Part from Local Tecumseh Dealer.

$4.49

$

In Stock, Qty 6

0

11

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain Part from Local Tecumseh Dealer.

$2.99

$

In Stock, Qty 5

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Obtain Part from Local Tecumseh Dealer.

$2.49

$

In Stock, only 1 left!

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0
