72200 (416 XT) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) ELECTRIC LIFT ASSEMBLY Parts Diagram

Garden Tractor

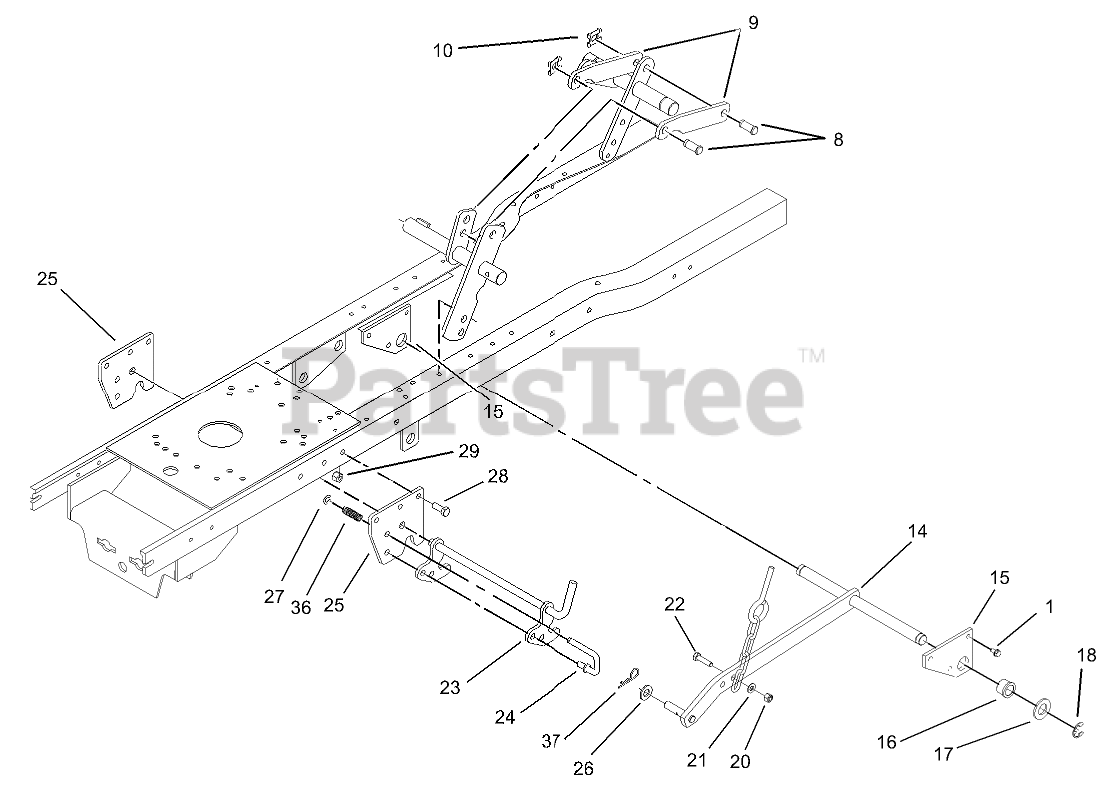

ELECTRIC LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

8

Toro 98-1639

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

9

Toro 106-5691-03

STRAP-LINK, LIFT

$

$

Not available

10

Toro 95-4064

CLIP-PIN
(Superseded to 138-8491)

$7.49

$

In Stock, only 2 left!

0

14

Toro 106-4065-03

LIFT BAR ASM

$

$

Not available

15

Toro 106-4066

Plate-Lift, Rear

$

$

Not available

16

Toro 98-1636

BUSHING-FLANGE

$7.99

$

Usually ships in 3-6 days

0

17

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

18

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

23

Toro 106-4091

MIDHITCH LATCH ASM

$

$

Not available

24

Toro 106-4095

ROD-CATCH, MIDHITCH

$

$

Not available

25

Toro 106-4060

Plate-Hitch

$

$

Not available

26

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

28

Toro 323-46

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

37

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0
