72200 (410) - Toro Garden Tractor (SN: 250000001 - 250999999) (2005) EXHAUST ASSEMBLY KOHLER CV460S-26518 Parts Diagram

Garden Tractor

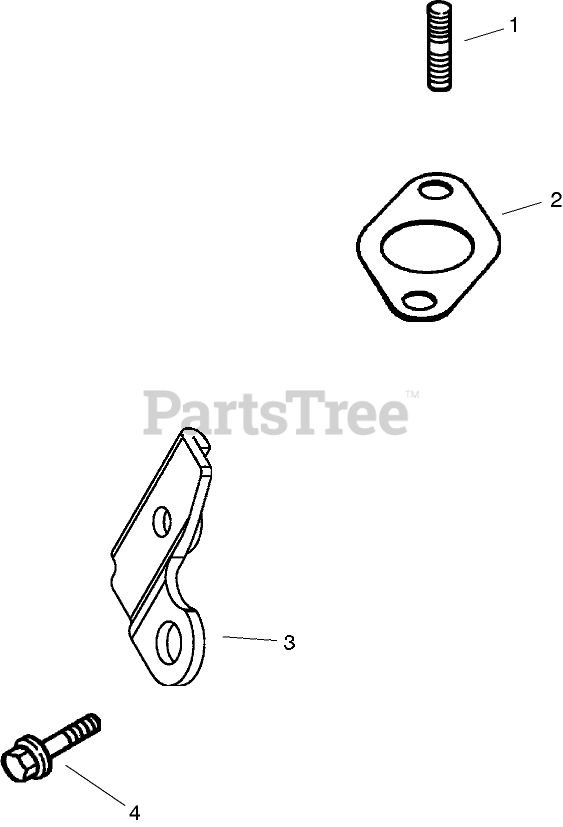

EXHAUST ASSEMBLY KOHLER CV460S-26518 Parts Diagram

  • Title

1

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from your local Kohler dealer.

$3.99

$

In Stock, Qty 17

0

2

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Obtain parts from your local Kohler dealer.

$7.49

$

In Stock, Qty 7

0

3

Kohler 12 126 87-S

Bracket-Strap, Lifting

Note: Obtain parts from your local Kohler dealer.

$

$

Not available

4

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from your local Kohler dealer.

$2.49

$

In Stock, only 2 left!

0

Kohler 12 522 54

Short Block

Note: Obtain parts from your local Kohler dealer.

$

$

Not available

Kohler 12 522 54

Short Block

Note: Not illustrated

$

$

Not available

Kohler 12 755 93-S

Gasket Set

Note: Not illustrated

$

$

Not available

Kohler 12 755 93-S

Gasket Set

Note: Obtain parts from your local Kohler dealer.

$

$

Not available
