72200 (410) - Toro Garden Tractor (SN: 250000001 - 250999999) (2005) ENGINE, MUFFLER AND PTO ASSEMBLY Parts Diagram

Garden Tractor

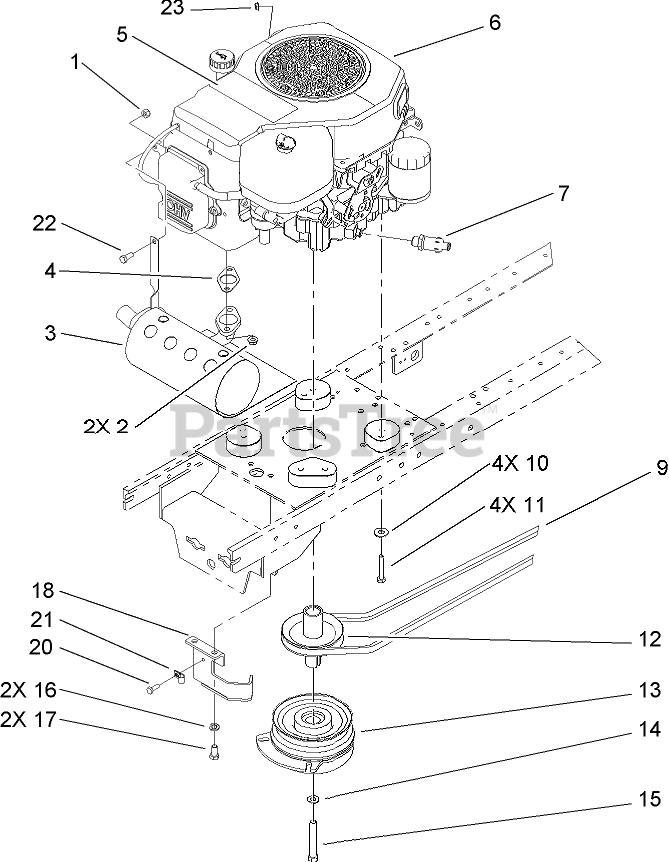

ENGINE, MUFFLER AND PTO ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

3

Toro 106-5670

MUFFLER

$

$

Not available

4

Gasket-Exhaust

Note: Not serviced separately

$

$

Not available

5

Toro 107-9245

DECAL-460 CC

$

$

Not available

6

ENGINE-KOHLER, CV406S-26518

Note: Not serviced separately

$

$

Not available

7

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

9

Toro 106-5813

V-BELT, TRACTION

$121.99

$

Usually ships in 3-6 days

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 33114-050

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

12

Toro 106-5665

Pulley-Engine

$

$

Not available

13

Toro 106-4099

CLUTCH

$609.99

$

Usually ships in 3-6 days

0

14

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3212-19

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

16

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

17

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 107-3662-03

PTO STOP ASM

$

$

Not available

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0
