72200 (410) - Toro Garden Tractor (SN: 250000001 - 250999999) (2005) DASH ASSEMBLY Parts Diagram

Garden Tractor

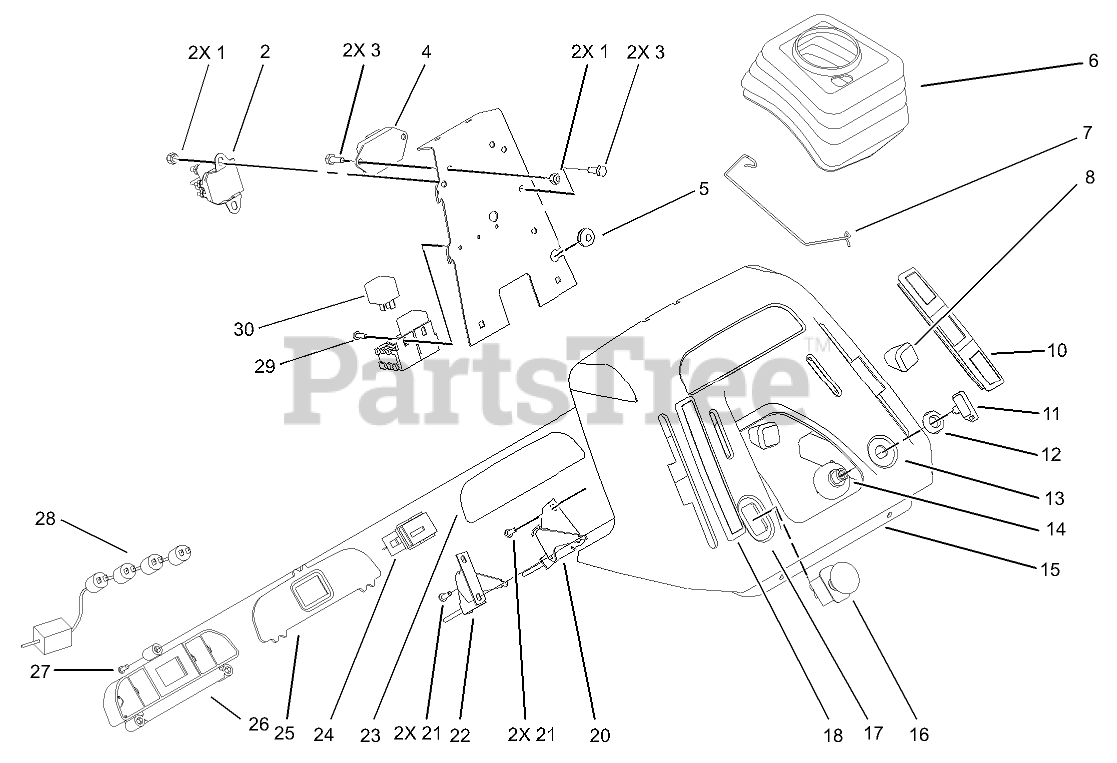

DASH ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

2

Toro 106-8245

SOLENOID-STARTER

$109.99

$

In Stock, only 1 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 99-3701

MODULE-CLUTCH

$148.99

$

Usually ships in 3-6 days

0

5

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

6

Toro 92-6680

BOOT-STEERING

$

$

Not available

7

Toro 94-2966

CLIP-BOOT

$

$

Not available

8

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

10

Toro 92-6796

COVER-SLOT, RH

$

$

Not available

11

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

12

Toro 700919

NUT

$5.99

$

In Stock, only 2 left!

0

13

Toro 92-6721

DECAL-THROTTLE, IGNITION

$12.99

$

Usually ships in 3-6 days

0

14

Toro 92-6785

SWITCH-IGNITION

$86.99

$

In Stock, only 1 left!

0

15

Toro 94-1894

DASH

$357.99

$

Usually ships in 3-6 days

0

16

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 1 left!

0

17

Toro 92-6720

DECAL-PTO / CHOKE
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 92-6797

COVER-SLOT, LH

$

$

Not available

20

Toro 92-6782

CONTROL-THROTTLE

$

$

Not available

21

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

22

Toro 92-6781

CONTROL-CHOKE

$

$

Not available

23

Toro 99-8038

DECAL-LENS, DASH

$

$

Not available

24

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

25

Toro 92-6705

LENS-DASH

$

$

Not available

26

Toro 92-6732

HOUSING-LIGHT, INDICATOR

$29.99

$

Usually ships in 3-6 days

0

27

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0

28

Toro 99-8066

HARNESS-LAMP

$

$

Not available

29

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

30

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0
