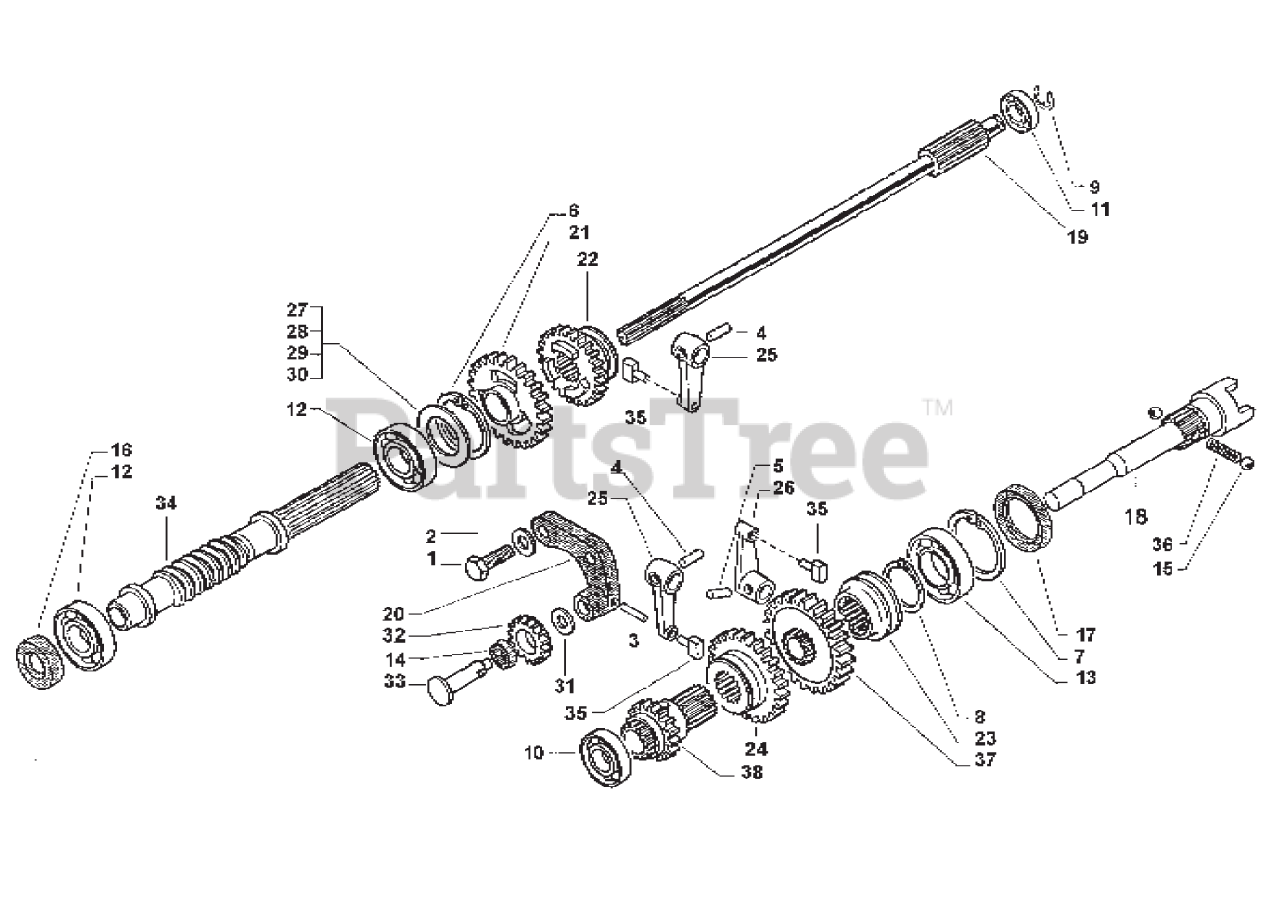

722 - BCS America Two-Wheeled Tractor Transmission (SN: 000001 - 937701) Parts Diagram

Two-Wheeled Tractor

Transmission (SN: 000001 - 937701) Parts Diagram

  • Title
1

BCS America 311.12211

SCREW, M1OX30

Note:

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 314.21101

SUPER WASHER , M10

Note:

$1.99

$

In Stock, only 3 left!

0

3

BCS America 342.13024

LOCKING PIN, M4X25

Note:

$1.49

$

In Stock, Qty 5

0

4

BCS America 342.1306

LOCKING PIN, M6X24

Note:

$1.99

$

In Stock, only 2 left!

0

5

BCS America 342.13061

LOCKING PIN, M6X20 SPIRAL

Note:

$1.49

$

In Stock, Qty 6

0

6

BCS America 351.11052

CIRCLIP, INTERNAL

Note:

$1.99

$

In Stock, Qty 5

0

7

BCS America 351.11055

CIRCLIP, INTERNAL

Note:

$2.49

$

In Stock, only 1 left!

0

8

BCS America 351.21031

CIRCLIP, EXTERNAL

Note:

$1.99

$

In Stock, only 4 left!

0

9

BCS America 352.1112

RETAINING RING

Note:

$1.49

$

In Stock, Qty 8

0

10

BCS America 371.11151

BEARING, M15X35X11

Note:

$10.99

$

Usually ships in 5-8 days

0

11

BCS America 371.11152

BEARING, M15X42X13

Note:

$17.99

$

Usually ships in 5-8 days

0

12

BCS America 371.11255

BEARING, M25X52X15

Note:

$15.99

$

In Stock, only 1 left!

0

13

BCS America 371.12229

BEARING, M30X55X13

Note:

$19.99

$

Usually ships in 5-8 days

0

14

BCS America 373.2012

BEARING, M12X15X10

Note:

$24.99

$

Usually ships in 5-8 days

0

15

BCS America 379.10832

BALL, 1/4"

Note:

$0.99

$

In Stock, Qty 10

0

16

BCS America 382.115

OIL SEAL, M15X40X10

Note:

$8.49

$

In Stock, only 2 left!

0

17

BCS America 382.138

OIL SEAL, M38X55X7

Note:

$11.99

$

Usually ships in 5-8 days

0

18

BCS America 524.56335

PTO SHAFT

Note:

$179.99

$

Usually ships in 5-8 days

0

19

BCS America 524.56339

MAIN SHAFT

Note:

$250.99

$

Usually ships in 5-8 days

0

20

BCS America 524.56349

REVERSER BRACKET

Note:

$118.99

$

Usually ships in 5-8 days

0

21

BCS America 524.56354

FIRST GEAR

Note:

$143.99

$

Usually ships in 5-8 days

0

22

BCS America 524.56361

SLIDER GEAR

Note:

$156.99

$

Usually ships in 5-8 days

0

23

BCS America 524.56362

PTO SLIDER

Note:

$94.99

$

Usually ships in 5-8 days

0

24

BCS America 524.5637

SLIDER, REVERSER

Note:

$156.99

$

Usually ships in 5-8 days

0

25

BCS America 524.56389

LEVER, SLIDER

Note:

$49.99

$

Usually ships in 5-8 days

0

26

BCS America 524.5639

LEVER, PTO ENGAGEMENT

Note:

$61.99

$

Usually ships in 5-8 days

0

27

BCS America 563.56328

SHIM, 1.5MM

Note:

$12.99

$

In Stock, only 1 left!

0

28

BCS America 563.56329

SHIM, 1.6MM

Note:

$12.99

$

Usually ships in 5-8 days

0

29

BCS America 563.5633

SHIM, 1.7MM

Note:

$11.99

$

Usually ships in 5-8 days

0

30

BCS America 563 56331

SHIM, 1.8MM

Note:

$

$

Currently unavailable

31

BCS America 563.56348

WASHER

Note:

$5.49

$

Usually ships in 5-8 days

0

32

BCS America 564.56347

REVERSE GEAR

Note:

$124.99

$

Usually ships in 5-8 days

0

33

BCS America 564.56351

PIN, REVERSE GEAR

Note:

$

$

Not available

34

BCS America 564.56475

WORM GEAR

Note:

$248.99

$

Usually ships in 5-8 days

0

35

$10.99

$

Usually ships in 5-8 days

0

36

BCS America 580.56391

SPRING, PTO BALLS

Note:

$1.99

$

In Stock, Qty 5

0

37

BCS America 590.56365

PTO GEAR

Note:

$

$

Currently unavailable

38

$263.99

$

Usually ships in 5-8 days

0
