722 - BCS America Two-Wheeled Tractor Steering Column (SN: 859161 & Above) Parts Diagram

Two-Wheeled Tractor

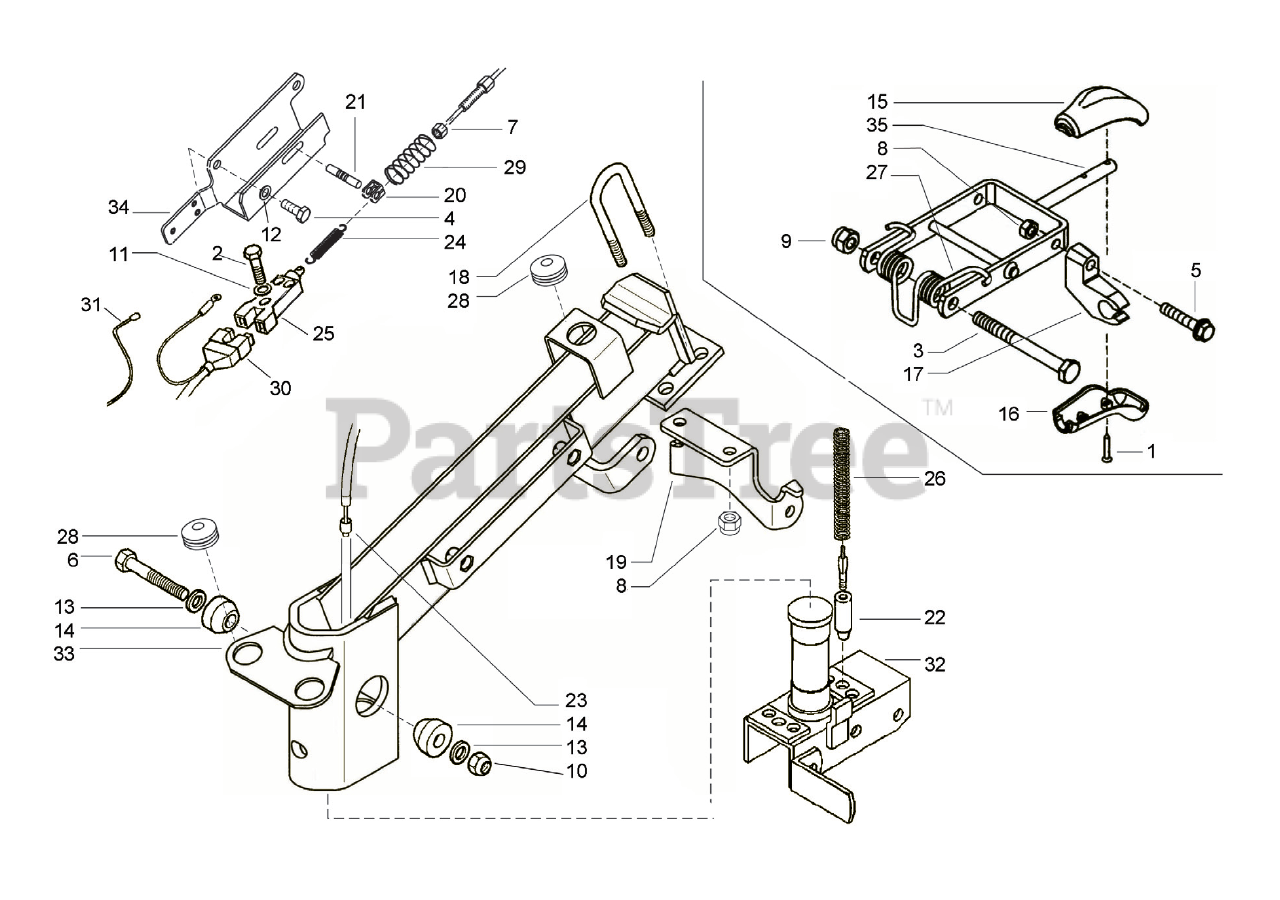

Steering Column (SN: 859161 & Above) Parts Diagram

  • Title

1

BCS America 311.00451

SCREW 5X25

Note:

$0.99

$

In Stock, Qty 8

0

2

BCS America 311.11086

CAP SCREW, M4.7X25

Note:

$1.49

$

In Stock, Qty 8

0

3

BCS America 311.11229

CAP SCREW, M10X110

Note:

$2.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12150

CAP SCREW, MX20

Note:

$1.49

$

In Stock, only 4 left!

0

5

BCS America 311.12165

SCREW

Note:

$1.99

$

In Stock, only 1 left!

0

6

BCS America 311.12293

CAP SCREW, M12X80

Note:

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, only 3 left!

0

8

BCS America 312.41080

LOCK NUT, M8

Note:

$0.99

$

In Stock, Qty 11

0

9

BCS America 312.41100

LOCK NUT, M10

Note:

$1.49

$

In Stock, only 2 left!

0

10

BCS America 312.41126

LOCK NUT, M12 DEFORMED

Note:

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 314.11043

WASHER, FLAT, M4

Note:

$0.99

$

In Stock, Qty 8

0

12

BCS America 314.21083

WASHER, SUPER M8

Note:

$1.49

$

In Stock, Qty 7

0

13

BCS America 314.21100

SPRING WASHER

Note:

$

$

Currently unavailable

14

BCS America 521.56917

WEDGE

Note:

$24.99

$

Usually ships in 5-8 days

0

15

BCS America 551.57212

UPPER HANDLE HALF, BLACK

Note:

$6.49

$

Usually ships in 5-8 days

0

16

BCS America 551.57213

LOWER HANDLE HALF, BLACK

Note:

$6.49

$

In Stock, only 3 left!

0

17

BCS America 552.43340

SUPPORT, CONTROL ROD

Note:

$

$

Not available

18

BCS America 561.56940

U BOLT

Note:

$8.49

$

Usually ships in 5-8 days

0

19

BCS America 561.56974

BRACKET

Note:

$

$

Currently unavailable

20

BCS America 561.57411

MOTOR STOP FORK

Note:

$16.99

$

Usually ships in 5-8 days

0

21

BCS America 561.57412

SPRING CHECK PIN

Note:

$6.49

$

Usually ships in 5-8 days

0

22

BCS America 563.56924

CAP

Note:

$32.99

$

Usually ships in 5-8 days

0

23

BCS America 580.42167

SHEATH END

Note:

$2.99

$

In Stock, only 2 left!

0

24

BCS America 580.47712

SPRING, STOP

Note:

$14.99

$

In Stock, only 1 left!

0

25

BCS America 580.48009

STOP SWITCH

Note:

$32.99

$

In Stock, only 1 left!

0

26

BCS America 580.56918

SPRING, STEERING COLUMN

Note:

$4.49

$

Usually ships in 5-8 days

0

27

BCS America 580.56942

HANDLEBAR RELEASE SPRING

Note:

$16.99

$

Usually ships in 5-8 days

0

28

BCS America 580.56991

SUPPORT CAP

Note:

$4.99

$

In Stock, only 3 left!

0

29

BCS America 580.57413

CHECK SPRING, MOTOR STOP

Note:

$4.99

$

Usually ships in 5-8 days

0

30

BCS America 580.57417

MOTOR STOP WIRING

Note:

$27.99

$

Usually ships in 5-8 days

0

31

BCS America 580.57419

WIRE, GROUND FOR S/N 794196+

Note:

$

$

Currently unavailable

32

BCS America 590.56952

SUPPORT

Note:

$158.99

$

Usually ships in 5-8 days

0

33

BCS America 592.56999

STEERING COLUMN

Note:

$232.99

$

Usually ships in 5-8 days

0

34

BCS America 592.57409

SUPPORT, ENGINE STOP

Note:

$89.99

$

Usually ships in 5-8 days

0

35

BCS America 590.57010N

LEVER, HANDLEBAR SELECTION

Note:

$

$

Currently unavailable
