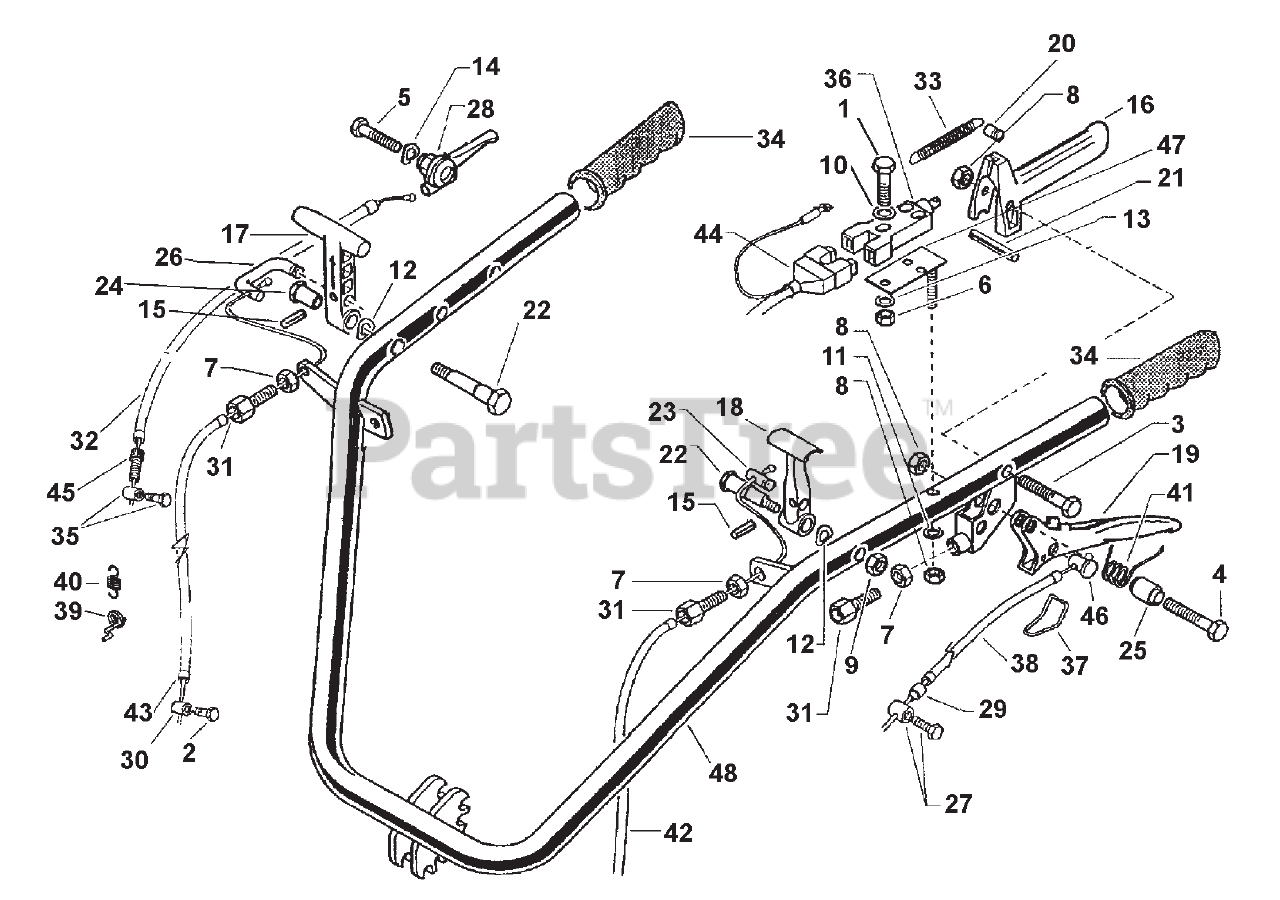

722 - BCS America Two-Wheeled Tractor Handlebars (SN: 000001 - 748214) Parts Diagram

Two-Wheeled Tractor

Handlebars (SN: 000001 - 748214) Parts Diagram

  • Title
1

BCS America 311.11086

CAP SCREW, M4X25

Note:

$1.49

$

In Stock, Qty 8

0

2

BCS America 311.11091

CAP SCREW, M6X14

Note:

$1.49

$

In Stock, only 3 left!

0

3

BCS America 311.11097

CAP SCREW, TE M6X14

Note:

$1.49

$

In Stock, Qty 5

0

4

BCS America 311.12089

CAP SCREW, M6X25

Note:

$1.49

$

In Stock, only 3 left!

0

5

BCS America 311.12153

CAP SCREW, M8X35

Note:

$1.49

$

In Stock, only 2 left!

0

6

BCS America 312.11040

NUT, M4

Note:

$0.99

$

In Stock, only 2 left!

0

7

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, only 3 left!

0

8

BCS America 312.41060

LOCK NUT, M6

Note:

$0.99

$

In Stock, only 2 left!

0

9

BCS America 312.41080

LOCK NUT, M8

Note:

$0.99

$

In Stock, Qty 11

0

10

BCS America 314.11043

WASHER, FLAT M4.3X19

Note:

$0.99

$

In Stock, Qty 8

0

11

BCS America 314.11064

WASHER, FLAT M6X12.5

Note:

$0.99

$

In Stock, Qty 10

0

12

BCS America 314.11084

WASHER, FLAT M8.4X17

Note:

$0.99

$

In Stock, only 4 left!

0

13

BCS America 314.23043

WASHER, LOCK M4.3

Note:

$0.99

$

In Stock, Qty 6

0

14

BCS America 314.23084

WASHER, LOCK M8.4X17

Note:

$0.99

$

In Stock, Qty 10

0

15

BCS America 342.13020

PIN, SPLIT, M4X20 SPIROL

Note:

$1.49

$

In Stock, only 4 left!

0

16

BCS America 552.48041

LEVER, MOTOR STOP

Note:

$24.99

$

Usually ships in 5-8 days

0

17

BCS America 552.48283

LEVER, REVERSER

Note:

$34.99

$

In Stock, only 3 left!

0

18

BCS America 552.48284

LEVER, STEERING COL. RELEASE

Note:

$13.99

$

In Stock, only 1 left!

0

19

BCS America 561.47655

LEVER, CLUTCH

Note:

$45.99

$

In Stock, only 1 left!

0

20

BCS America 561.47711

PIN, LATCH

Note:

$3.99

$

In Stock, only 2 left!

0

21

$3.49

$

In Stock, only 2 left!

0

22

$20.99

$

In Stock, only 1 left!

0

23

BCS America 561.48286

PIN, DRILLED

Note:

$22.99

$

In Stock, only 1 left!

0

24

BCS America 561.48287

BUSHING

Note:

$9.99

$

In Stock, only 1 left!

0

25

BCS America 561.50361

SPACER, LEVER

Note:

$4.99

$

In Stock, only 1 left!

0

26

BCS America 561.57332

PIN, REVERSE CABLE

Note:

$45.99

$

Usually ships in 5-8 days

0

27

BCS America 580.02429

CLAMP, CABLE

Note:

$5.99

$

In Stock, only 2 left!

0

28

BCS America 580.02538

LEVER, ACCELERATOR

Note:

$34.99

$

In Stock, Qty 5

0

29

BCS America 580.42167

SHEATH END

Note:

$2.99

$

In Stock, only 1 left!

0

30

BCS America 580.42200

PIN, CABLE CLAMP

Note:

$6.49

$

In Stock, only 1 left!

0

31

BCS America 580.42202

SCREW, M8 ADJUSTING

Note:

$6.99

$

In Stock, only 1 left!

0

32

BCS America 580.43219

CABLE

Note:

$21.99

$

In Stock, only 1 left!

0

33

BCS America 580.47712

SPRING

Note:

$14.99

$

In Stock, only 2 left!

0

34

$7.49

$

Usually ships in 5-8 days

0

35

BCS America 580.48002

CLAMP, CABLE

Note:

$3.99

$

In Stock, only 2 left!

0

36

BCS America 580.48009

SAFETY INTERLOCK

Note:

$32.99

$

In Stock, only 2 left!

0

37

BCS America 580.51670

STOP WIRE

Note:

$5.49

$

In Stock, only 1 left!

0

38

BCS America 580.53035

CABLE

Note:

$23.99

$

In Stock, only 1 left!

0

39

BCS America 580.56158

SPRING

Note:

$21.99

$

Usually ships in 5-8 days

0

40

BCS America 580.56164

SPRING

Note:

$10.99

$

Usually ships in 5-8 days

0

41

BCS America 580.56593

SPRING

Note:

$5.49

$

In Stock, only 1 left!

0

42

BCS America 580.57284

CABLE WITH SHEATH

Note:

$38.99

$

In Stock, only 2 left!

0

43

BCS America 580.57329

CABLE, REVERSE

Note:

$24.99

$

In Stock, only 1 left!

0

44

BCS America 580.57401

WIRE HARNESS

Note:

$29.99

$

Usually ships in 5-8 days

0

45

BCS America 581.47704

SCREW, M6 ADJUSTING

Note:

$9.49

$

Usually ships in 5-8 days

0

46

BCS America 581.50313

BARREL

Note:

$11.99

$

In Stock, only 4 left!

0

47

BCS America 590.47709

PLATE, INTERLOCK

Note:

$32.99

$

In Stock, only 1 left!

0

48

BCS America 590.57116

HANDLEBAR COMPLETE

Note:

$

$

Currently unavailable
