72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 416263217 - 416289421) Center Deck Spindle, Baffle and Roller Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

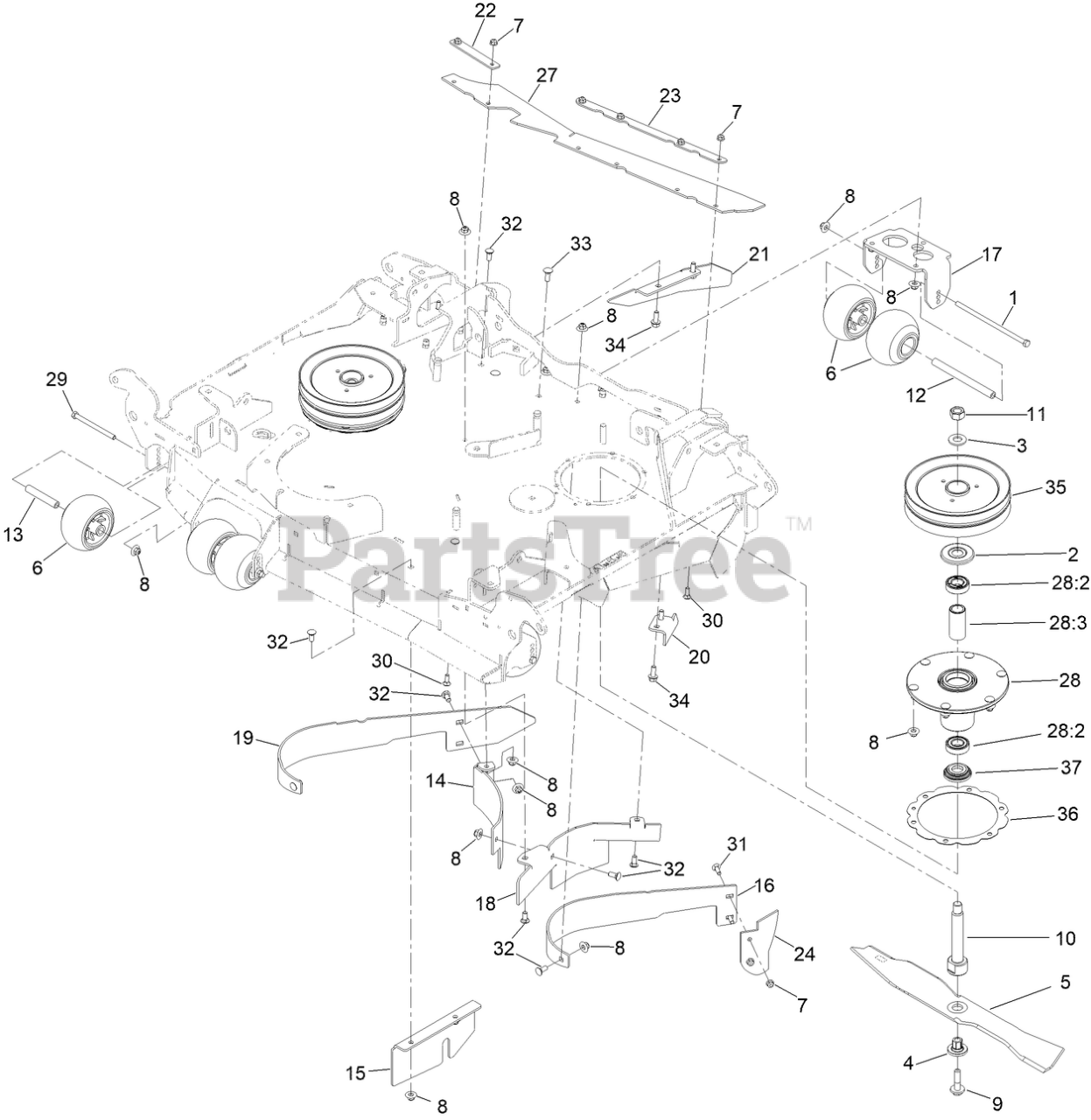

Center Deck Spindle, Baffle and Roller Assembly Parts Diagram

  • Title

1

Toro 99-7203

SCREW-HH

$10.99

$

In Stock, Qty 5

0

2

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 13

0

3

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

4

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

5

Toro 140-1246

BLADE-24.50 MULCH

$42.99

$

In Stock, Qty 19

0

6

Toro 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, only 3 left!

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

10

138-6045

SHAFT-SPINDLE

$

$

Not available

11

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

12

Toro 126-6115

SPACER-WHEEL

$12.99

$

In Stock, only 4 left!

0

13

Toro 126-7140

SPACER-WHEEL SHORT

$17.99

$

Usually ships in 3-6 days

0

14

Toro 135-0601-01

BAFFLE-CENTER, REAR (RH)

$66.99

$

Usually ships in 3-6 days

0

15

Toro 135-0603-01

PLATE-BLOCK, FRONT

$31.99

$

Usually ships in 3-6 days

0

16

Toro 135-0792-01

BAFFLE-DOGLEG, CENTER (LH)

$75.99

$

Usually ships in 3-6 days

0

17

Toro 135-1036-01

BRACKET-ANTISCALP, REAR

$56.99

$

Usually ships in 3-6 days

0

18

Toro 135-1827-01

BAFFLE-CENTER

$57.99

$

Usually ships in 3-6 days

0

19

Toro 135-2451-01

BAFFLE-DOGLEG, CENTER (RH)

$75.99

$

Usually ships in 3-6 days

0

20

Toro 135-2452-01

BAFFLE-BREAKER

$17.99

$

Usually ships in 3-6 days

0

21

Toro 135-2453-01

PLATE-FIN, DISCHARGE

$32.99

$

Usually ships in 3-6 days

0

22

Toro 135-2455-03

SUPPORT-FLAP, LH

$8.49

$

Usually ships in 3-6 days

0

23

Toro 135-2457-03

SUPPORT-FLAP, LH

$14.99

$

Usually ships in 3-6 days

0

24

Toro 135-2458

GUARD-DISCHARGE

$8.49

$

Usually ships in 3-6 days

0

27

Toro 135-2618

FLAP-DISCHARGE

$39.99

$

Usually ships in 3-6 days

0

28

Toro 137-9780

SPINDLE ASM

$156.99

$

In Stock, Qty 14

0

28:2

Toro 116-0720

BEARING-BALL

$23.99

$

In Stock, Qty 20+

0

28:3

Toro 138-6042

SPACER-BEARING

$9.99

$

Usually ships in 3-6 days

0

29

Toro 323-38

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

30

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

31

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

32

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

33

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

34

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

35

Toro 140-1186

SHEAVE-DOUBLE BLADE DRIVE

$143.99

$

Usually ships in 3-6 days

0

36

Toro 140-0986

RING-SPACER, HOUSING

$18.99

$

Usually ships in 3-6 days

0

37

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, Qty 12

0
