72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 412800000 - 412999999) Fuel System Asembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

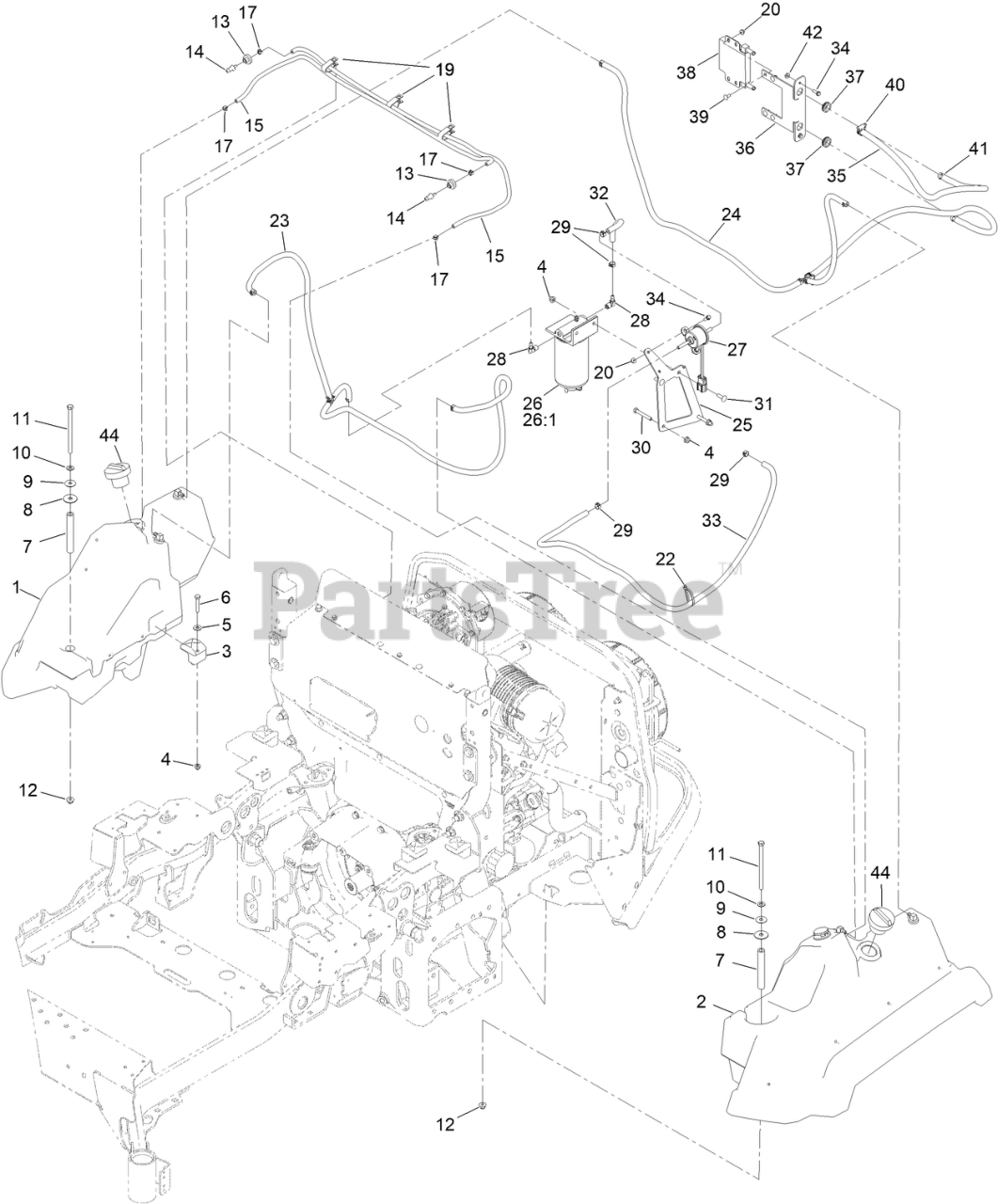

Fuel System Asembly Parts Diagram

  • Title

1

Toro 142-8638

RH FUEL TANK ASM

$387.99

$

Usually ships in 3-6 days

0

2

Toro 142-8637

LH FUEL TANK ASM

$464.99

$

Usually ships in 3-6 days

0

3

Toro 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-21

SCREW-HH
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 126-8335

TUBE-SPACER

$15.99

$

Usually ships in 3-6 days

0

8

Toro 95-1905

WASHER-RUBBER

$2.99

$

In Stock, Qty 8

0

9

Toro 105-6814

WASHER-PLAIN

$1.49

$

In Stock, Qty 11

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 323-22

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

14

Toro 116-4630

FITTING-ORIFICE, STRAIGHT

$5.49

$

Usually ships in 3-6 days

0

15

Toro 117-6395

HOSE-VENT, TANK

$20.99

$

Usually ships in 3-6 days

0

17

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

19

Toro 92-5753

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 135-0512

FUEL SUCTION LINE ASM

$71.99

$

Usually ships in 3-6 days

0

24

Toro 142-3194

HOSE ASM-FUEL, TEE

$76.99

$

Usually ships in 3-6 days

0

25

Toro 142-7204-03

BRKT-FUEL FILTER

$34.99

$

Usually ships in 0 days

0

26

Toro 125-2914

SEPARATOR FILTER ASM

$111.99

$

Usually ships in 3-6 days

0

26:1

Toro 125-2915

FILTER-FUEL/WATER SEPARATOR

$42.99

$

In Stock, Qty 5

0

27

Toro 121-5613

PUMP-FUEL, ELECTRIC

$328.99

$

Usually ships in 3-6 days

0

28

Toro 353-781

FITTING-HYD, 90

$29.99

$

Usually ships in 3-6 days

0

29

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

30

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

31

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

32

Toro 108-3280

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

33

Toro 110-7503

HOSE-FUEL

$53.99

$

Usually ships in 3-6 days

0

34

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

35

Toro 142-3195

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

36

Toro 142-5173-03

MOUNT-COOLER, FUEL

$37.99

$

Usually ships in 0 days

0

37

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

38

Toro 116-7205

COOLER-OIL

$201.99

$

In Stock, only 1 left!

0

39

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

40

Toro 135-7984

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

41

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

42

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

44

Toro 125-9170

CAP-FUEL, DIESEL (ULTRA LOW SULFUR)

$43.99

$

Usually ships in 3-6 days

0
